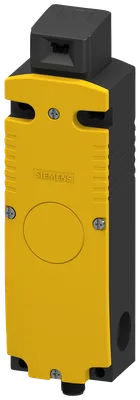

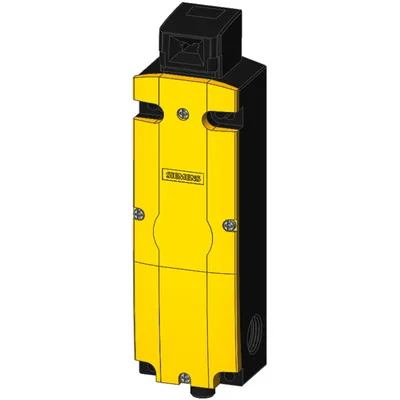

Siemens 3SE5324-0SB21-1AC8
safety konum anahtar ile guard lock, locking force 1300 N, 5 approach directions, solenoid-locked, magnet gerilim 24 V DC, monitoring aktüatör 2 NC/1 NO monitoring magnet 2 NC/1 NO, wired ile M12 plug, 8-pole; Matching aktüatör 3SE5000-0AV0. veya 3SE5000-0AW4/5. to be ordered separately.
product brand nameSIRIUS
product designationMechanical safety switches
design of the productwith separate actuator ve with tumbler
product type designation3SE5
product function positive openingVar
locking force1.300 N
Ürün Hakkında
safety konum anahtar ile guard lock, locking force 1300 N, 5 approach directions, solenoid-locked, magnet gerilim 24 V DC, monitoring aktüatör 2 NC/1 NO monitoring magnet 2 NC/1 NO, wired ile M12 plug, 8-pole; Matching aktüatör 3SE5000-0AV0. veya 3SE5000-0AW4/5. to be ordered separately.
Siemens 3SE5324-0SB21-1AC8
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical safety switches
design of the productwith separate actuator ve with tumbler
product type designation3SE5
manufacturer's article number of the optional actuators3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with dikey fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with dikey fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with dikey fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing
General technical data
product function positive openingVar
locking force1.300 N
according to EN ISO 141191.000 N
insulation voltage rated value30 V
degree of pollutionclass 3
surge voltage resistance rated value0,8 kV
protection class IPIP66/IP67
shock resistance30g / 11 ms
according to IEC 60068-2-2730 g / 11 ms
vibration resistance0,35 mm / 5 g
according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical1.000.000
thermal current1,5 A
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link1 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG1 A; for a short-circuit current smaller than 400 A
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)10/01/2011
SVHC substance nameLead CAS-Yok. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight499,14 g
actuating force in tension force vector typical20 N

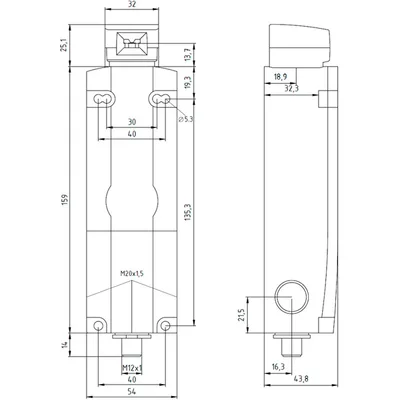

length of the sensor198 mm
width of the sensor54 mm
Ambient conditions
during operation-25... +60 °C
during storage-40... +80 °C
explosion protection category for dustyok
consumed active power of magnet coil3,5 W
at 24 V rated value1,5 A
at 24 V rated value1,5 A
Enclosure
design of the housingspecial design
material of the enclosureplastic
design of the housing according to standardYok
locking mechanism designmagnetic field lock (open-circuit principle)
Drive Head
design of the actuating element5 directions of approach
design of the switching functionpositive opening
number of directions of actuation5
circuit principleslow-action contacts
number of switching contacts safety-related2
cable entry typeM12 plug

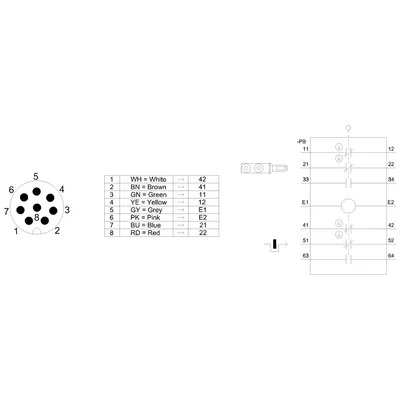

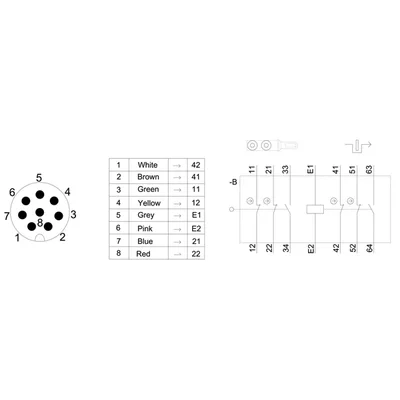

design of plug-in connectionM12 connector, 8-pole: Pin 1= terminal 42, pin 2= 41, pin 3= 11, pin 4= 12, pin 5= E1, pin 6= E2, pin 7= 21, pin 8= 22
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionscrew terminal
Besleme gerilimi
supply voltage of magnet coil24 V
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Safety related data
product function suitable for safety functionVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2A
Aksesuarlar 21
Siemens 3SE5324-0SB21-1AC8 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SX5601-2GA10 | Aksesuar | |
| 3SE5000-0AV08-1AA3 | Aksesuar | |
| 3SE5000-0AV08-1AA2 | Aksesuar | |
| 3SX5601-2GA15 | Aksesuar | |
| 3SX5601-2GA05 | Aksesuar | |
| 3SX5601-2GA03 | Aksesuar | |
| 3SE5000-0AW21 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV07-1AK2 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV05-1AA6 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV07 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV06 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV04 | Seçmeli zorunlu ürün | |
| 3SE5000-0AW53 | Seçmeli zorunlu ürün | |
| 3SE5000-0AW52 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV01-1AL7 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV03 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV02 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV01 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV05 | Seçmeli zorunlu ürün | |
| 3SE5000-0AW51 | Seçmeli zorunlu ürün | |
| 3SE5000-0AV05-1AN3 | Seçmeli zorunlu ürün |
