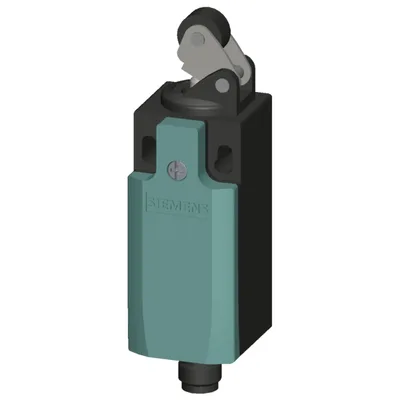

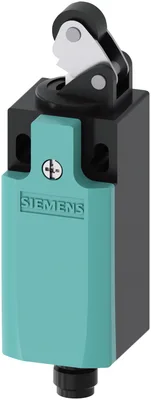

Siemens 3SE5234-0HE10-1AC4
konum anahtar Plastic muhafaza according to EN 50047, 31 mm 1 NO/1 NC quick action contacts dahili (not replaceable) ile M12 konnektör, 4-pole Pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14 için max. 250 V ve 4 A Roller lever ile plastic roller 13 mm
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
product function positive openingVar
insulation voltage rated value250 V
degree of pollutionclass 3
Ürün Hakkında
konum anahtar Plastic muhafaza according to EN 50047, 31 mm 1 NO/1 NC quick action contacts dahili (not replaceable) ile M12 konnektör, 4-pole Pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14 için max. 250 V ve 4 A Roller lever ile plastic roller 13 mm
Siemens 3SE5234-0HE10-1AC4
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
of the supplied actuator head for position switches3SE5000-0AE10
General technical data
product function positive openingVar
insulation voltage rated value250 V
degree of pollutionclass 3
surge voltage resistance rated value3 kV
protection class IPIP65
according to IEC 60068-2-2730 g / 11 ms
according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical15.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current4 A
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG4 A
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-Yok. 96-45-7
Net Weight0,08 kg
minimum actuating force in directions of actuation10 N
length of the sensor108,4 mm
width of the sensor31 mm
Ambient conditions
during operation-25... +85 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 24 V rated value4 A
at 125 V rated value4 A
at 240 V rated value4 A
at 24 V rated value3 A
at 125 V rated value0,55 A
at 250 V rated value0,27 A
Enclosure
design of the housingblock, narrow
material of the enclosureplastic
coating of the enclosureOther types
design of the housing according to standardVar
Drive Head
design of the actuating elementRoller lever, metal lever, plastic roller
standard-compliant actuator headEN 50047, design E
shape of the switch headroller
design of the switching functionpositive opening, dahili
circuit principlesnap-action contacts
number of switching contacts safety-related1
cable entry typeM12 plug
design of plug-in connectionM12 plug, 4-pole: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13, Pin 4 = 14

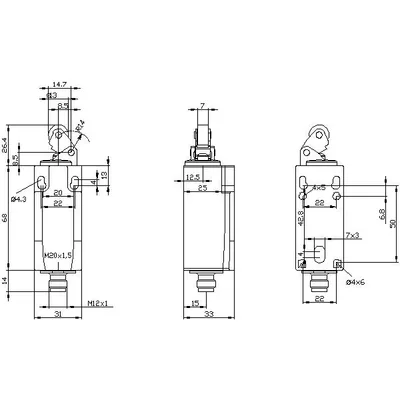

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionM12 plug, fixed
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Safety related data
product function suitable for safety functionVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2A
Aksesuarlar 1
Siemens 3SE5234-0HE10-1AC4 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SY3127 | Bileşen · Miscellaneous accessories · plugs |
