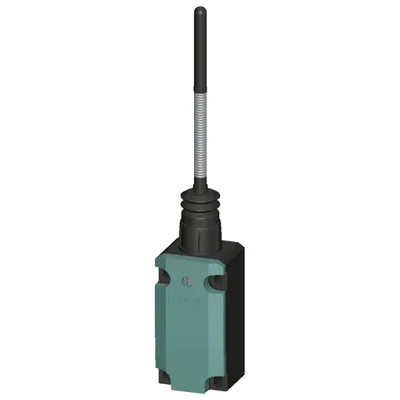

Siemens 3SE5132-0CR01

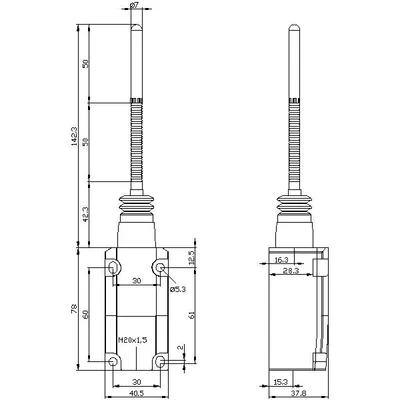

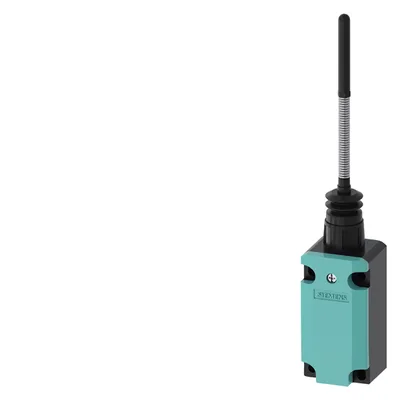

Position switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts Spring rod actuator 142.5 mm total length with plastic plunger 50 mm
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
of the supplied basic switch3SE5132-0CA00
of the supplied switching contacts3SE5000-0CA00
product function positive openingYok
Ürün Hakkında
Position switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts Spring rod actuator 142.5 mm total length with plastic plunger 50 mm
Siemens 3SE5132-0CR01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
of the supplied basic switch3SE5132-0CA00
of the supplied actuator head for position switches3SE5000-0AR01
of the supplied switching contacts3SE5000-0CA00
of the supplied empty enclosure with cover3SE5132-0AA00
General technical data
product function positive openingYok
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP65/IP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current10 A
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-Yok. 96-45-7
Net Weight0,103 kg
minimum actuating torque in directions of actuation0,25 N·m
length of the sensor220,3 mm
width of the sensor40 mm
Ambient conditions
during operation-25... +85 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 24 V rated value6 A
at 125 V rated value6 A
at 240 V rated value6 A
at 400 V rated value4 A
at 24 V rated value3 A
at 125 V rated value0,55 A
at 250 V rated value0,27 A
at 400 V rated value0,12 A
Enclosure
design of the housingblock, narrow
material of the enclosureplastic
coating of the enclosureOther types
design of the housing according to standardVar
Drive Head
design of the actuating elementSpring rod, toplam length = 142,5 mm (spring 50 mm + plastic plunger 50 mm)
outer diameter of the switch head7 mm
circuit principlesnap-action contacts
number of switching contacts safety-related0
cable entry type1x (M20 x 1,5)
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionscrew terminal
solid1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
finely stranded with core end processing1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
for AWG cables solid1x (20... 16), 2x (20... 18)
for AWG cables stranded1x (20... 16), 2x (20... 18)
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
