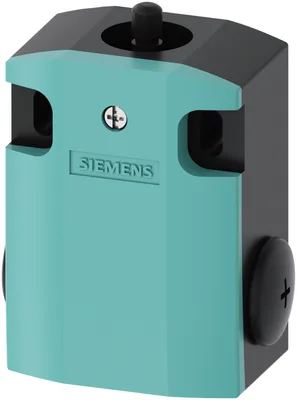

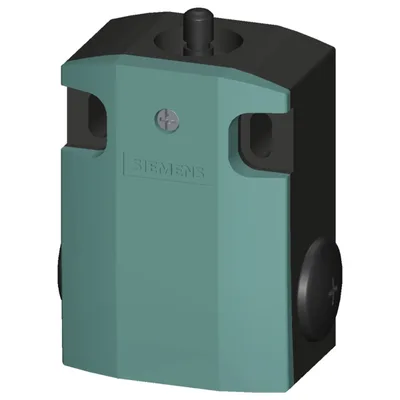

Siemens 3SE5122-0LA00
Basic switch for position switch 3SE51 Metal enclosure 56 mm Device connection 3x (M20x 1.5) 1 NO/2 NC quick action contacts without actuator head
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SE5
of the supplied switching contacts3SE5000-0LA00
product function positive openingVar
insulation voltage rated value400 V
Ürün Hakkında
Basic switch for position switch 3SE51 Metal enclosure 56 mm Device connection 3x (M20x 1.5) 1 NO/2 NC quick action contacts without actuator head
Siemens 3SE5122-0LA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SE5
of the supplied switching contacts3SE5000-0LA00
of the supplied empty enclosure with cover3SE5122-0AA00
General technical data
product function positive openingVar
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP66/IP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical15.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current10 A
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-Yok. 96-45-7
Net Weight0,353 kg
minimum actuating force in directions of actuation20 N
length of the sensor85,7 mm
width of the sensor56 mm
Ambient conditions
during operation-25... +85 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
operating frequency rated value50... 60 Hz

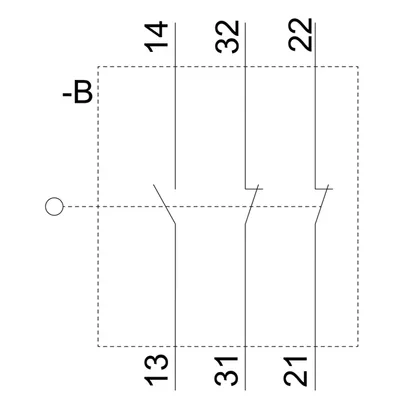

number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
at 24 V rated value6 A
at 125 V rated value6 A
at 240 V rated value6 A
at 400 V rated value4 A
at 24 V rated value3 A
at 125 V rated value0,55 A
at 250 V rated value0,27 A
at 400 V rated value0,12 A
Enclosure
design of the housingblock, wide
material of the enclosuremetal
coating of the enclosurecathodic dip coating
design of the housing according to standardYok
Drive Head
design of the actuating elementOther, without, basic switch
design of the switching functionPositive opening with appropriate positive opening actuator head
circuit principlesnap-action contacts
number of switching contacts safety-related2
cable entry type3x (M20 x 1,5)

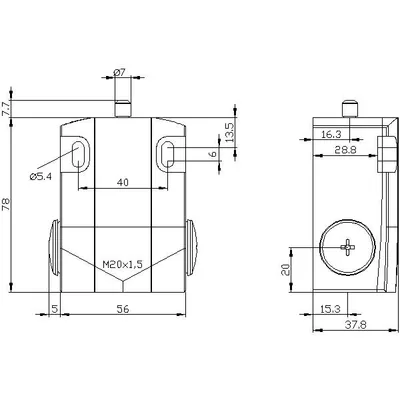

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionscrew terminal
solid1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
finely stranded with core end processing1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
for AWG cables solid1x (20... 16), 2x (20... 18)
for AWG cables stranded1x (20... 16), 2x (20... 18)
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Safety related data
product function suitable for safety functionVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
B10 value with high demand rate according to SN 3192010.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2A
Aksesuarlar 21
Siemens 3SE5122-0LA00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SY3128 | Aksesuar · Miscellaneous accessories · plugs | |
| 3SX9926 | Aksesuar · Miscellaneous accessories · cable glands | |
| 3SE5122-0AA00 | Bileşen | |
| 3SE5000-0LA00 | Bileşen | |
| 3SE5000-0AR02 | Seçmeli zorunlu ürün | |
| 3SE5000-0AR01 | Seçmeli zorunlu ürün | |
| 3SE5000-0AT10 | Seçmeli zorunlu ürün | |
| 3SE5000-0AF03 | Seçmeli zorunlu ürün | |
| 3SE5000-0AF04 | Seçmeli zorunlu ürün | |
| 3SE5000-0AF02 | Seçmeli zorunlu ürün | |
| 3SE5000-0AE04 | Seçmeli zorunlu ürün | |
| 3SE5000-0AE03 | Seçmeli zorunlu ürün | |
| 3SE5000-0AE02 | Seçmeli zorunlu ürün | |
| 3SE5000-0AR04 | Seçmeli zorunlu ürün | |
| 3SE5000-0AD02 | Seçmeli zorunlu ürün | |
| 3SE5000-0AB01 | Seçmeli zorunlu ürün | |
| 3SE5000-0AH00 | Seçmeli zorunlu ürün | |
| 3SE5000-0AF01 | Seçmeli zorunlu ürün | |
| 3SE5000-0AE01 | Seçmeli zorunlu ürün | |
| 3SE5000-0AC02 | Seçmeli zorunlu ürün | |
| 3SE5000-0AR03 | Seçmeli zorunlu ürün |
