Siemens 3SE5114-1RV10-1AF3

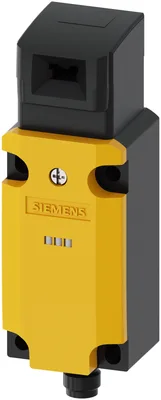

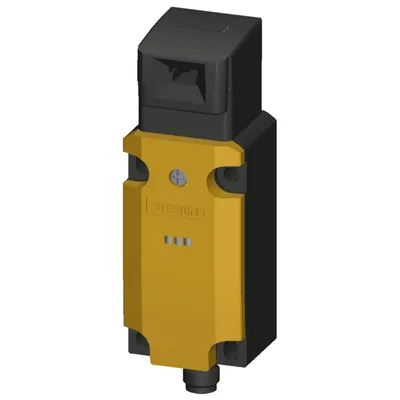

Safety konum anahtar ile separate aktüatör Metal muhafaza, 40 mm according to EN 50041 ile M12 konnektör, 5-pole, fixed ile 2 LEDs, yellow/green 24 V DC 5 directions of approaches Pin assignment: Pin1=21, Pin2=22 Pin3=14 ve LED green, Pin4=13 ve LED yellow, Pin 5=ground LED The matching separate aktüatör 3SE5000-0AV0. must be ordered separately
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SE5
product function positive openingVar
insulation voltage rated value125 V
degree of pollutionclass 3
Ürün Hakkında
Safety konum anahtar ile separate aktüatör Metal muhafaza, 40 mm according to EN 50041 ile M12 konnektör, 5-pole, fixed ile 2 LEDs, yellow/green 24 V DC 5 directions of approaches Pin assignment: Pin1=21, Pin2=22 Pin3=14 ve LED green, Pin4=13 ve LED yellow, Pin 5=ground LED The matching separate aktüatör 3SE5000-0AV0. must be ordered separately
Siemens 3SE5114-1RV10-1AF3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SE5
of the optional actuators3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with dikey mounting, 3SE5000-0AV03 actuator with yatay mounting, 3SE5000-0AV04 radius actuator left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator right, 3SE5000-0AV07 heavy-duty actuator, 3SE5000-0AW11 plastic actuator, 3SE5000-0AW21 stainless steel actuator
General technical data
product function positive openingVar
insulation voltage rated value125 V
degree of pollutionclass 3
surge voltage resistance rated value0,8 kV
protection class IPIP66/IP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical1.000.000
thermal current4 A
material of the enclosure of the switch headmetal
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG4 A; for a short-circuit current smaller than 400 A
active principlemechanical
repeat accuracy0,05 mm
operating resource protection classIII (according to EN 60536)
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight0,461 kg
minimum actuating force in directions of actuation20 N

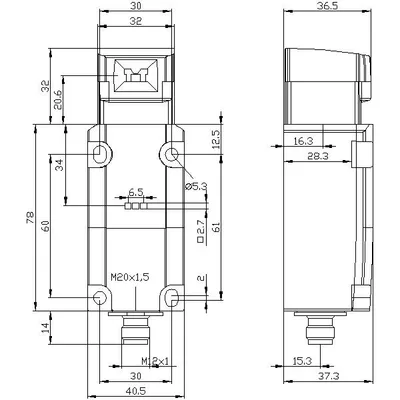

length of the sensor124 mm
width of the sensor40 mm
Ambient conditions
during operation-25... +60 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 24 V rated value3 A
Enclosure
design of the housingblock, narrow
material of the enclosuremetal
coating of the enclosurecathodic dip coating
design of the housing according to standardVar
Drive Head
design of the actuating elementwithout

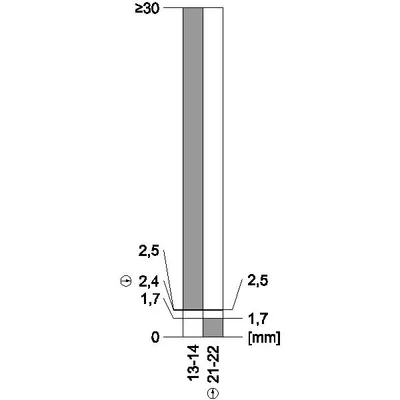

design of the switching functionpositive opening
circuit principleslow-action contacts
number of switching contacts safety-related1
cable entry typeM12 plug

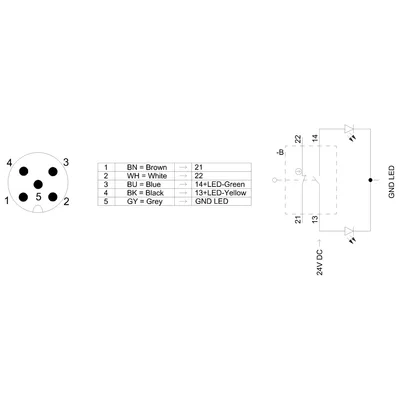

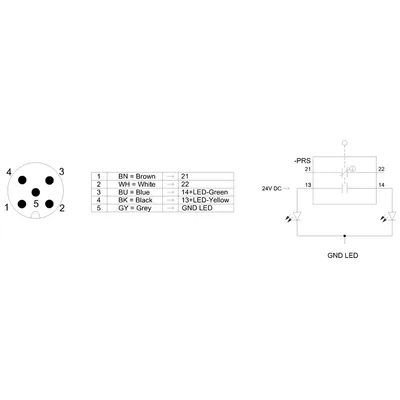

design of plug-in connectionM12 plug, 5-pole: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13, Pin 4 = 14, Pin 5 = PU
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionM12 plug, fixed
Besleme gerilimi
type of voltage of the supply voltage of the optional LED displayDC
24 V
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Safety related data
product function suitable for safety functionVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2A
Aksesuarlar 4
Siemens 3SE5114-1RV10-1AF3 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SY3027 | Aksesuar · Miscellaneous accessories · base plates | |
| 3SY3110 | Aksesuar · Miscellaneous accessories · laminations | |
| 3SE5000-0AV08-1AA2 | Aksesuar | |
| 3SE5000-0AV08-1AA3 | Aksesuar |
