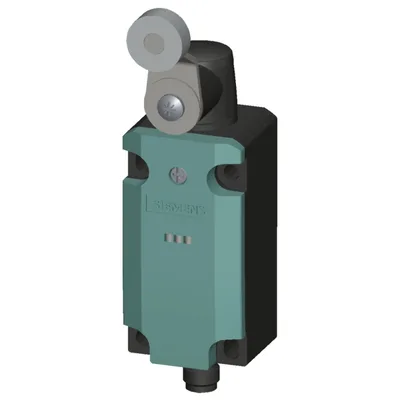

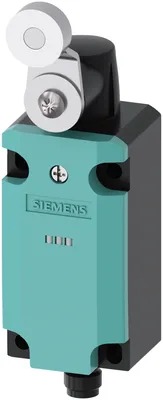

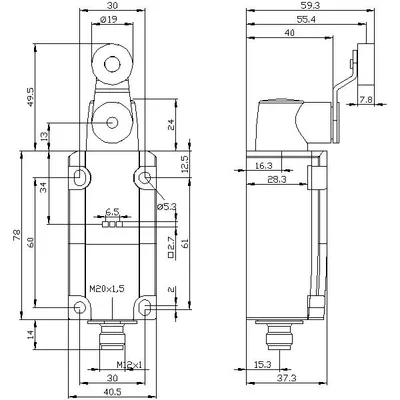

Siemens 3SE5114-1CH02-1AF3
konum anahtar Metal muhafaza 40 mm according to EN 50041 1 NO/1 NC quick action contacts ile 2 LEDs, yellow/green, 24 V DC döner aktüatör right ve/veya left ayarlanabilir, metal lever 27 mm long ve paslanmaz çelik roller 19 mm Pin assignment: Pin1=21, Pin2=22 Pin3=13 ve LED green, Pin4=14 ve LED yellow, Pin5=ground LED
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
of the supplied basic switch3SE5114-1CA00-0AF3
of the supplied operating lever3SE5000-0AA02
of the supplied switching contacts3SE5000-0CA00
Ürün Hakkında
konum anahtar Metal muhafaza 40 mm according to EN 50041 1 NO/1 NC quick action contacts ile 2 LEDs, yellow/green, 24 V DC döner aktüatör right ve/veya left ayarlanabilir, metal lever 27 mm long ve paslanmaz çelik roller 19 mm Pin assignment: Pin1=21, Pin2=22 Pin3=13 ve LED green, Pin4=14 ve LED yellow, Pin5=ground LED
Siemens 3SE5114-1CH02-1AF3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
of the supplied basic switch3SE5114-1CA00-0AF3
of the supplied actuator head for position switches3SE5000-0AH00
of the supplied operating lever3SE5000-0AA02
of the supplied switching contacts3SE5000-0CA00
General technical data
product function positive openingVar
insulation voltage rated value125 V
degree of pollutionclass 3
surge voltage resistance rated value0,8 kV
protection class IPIP66/IP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical15.000.000
thermal current4 A
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG4 A
active principlemechanical
repeat accuracy0,05 mm
operating resource protection classIII (according to EN 60536)
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight0,36 kg
minimum actuating torque in directions of actuation0,25 N·m
length of the sensor141,5 mm
width of the sensor40 mm
Ambient conditions
during operation-25... +60 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 24 V rated value3 A
Enclosure
design of the housingblock, narrow
material of the enclosuremetal
coating of the enclosurecathodic dip coating
design of the housing according to standardVar
Drive Head
design of the actuating elementTwist lever, metal lever, 27 mm long, step 9 mm, high-grade steel roller 19 mm
standard-compliant actuator headEN 50041, design A
shape of the switch headroller
design of the switching functionpositive opening
circuit principlesnap-action contacts
number of switching contacts safety-related1
cable entry typeM12 plug
design of plug-in connectionM12 plug, 5-pole: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13/LED green, Pin 4 = 14/LED yelow, Pin 5 = ground LED
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionM12 plug, fixed
Besleme gerilimi
type of voltage of the supply voltage of the optional LED displayDC
24 V
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Safety related data
product function suitable for safety functionVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2A
Aksesuarlar 6
Siemens 3SE5114-1CH02-1AF3 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SY3027 | Aksesuar · Miscellaneous accessories · base plates | |
| 3SY3110 | Aksesuar · Miscellaneous accessories · laminations | |
| 3SE5000-0CA00 | Bileşen | |
| 3SE5000-0AH00 | Bileşen | |
| 3SE5000-0AA02 | Bileşen | |
| 3SX5100-1SS05 | Bileşen |
