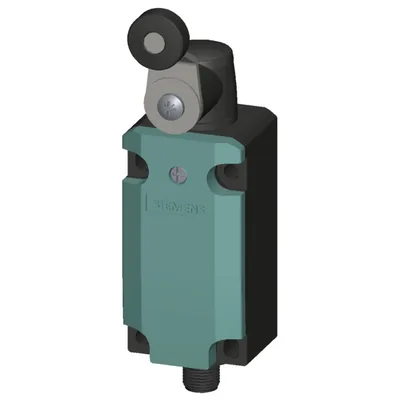

Siemens 3SE5114-0LH01-1AE3
konum anahtar ile twist lever, metal muhafaza 40 according to DIN EN 50041, 1 NO/2 NC quick action contacts, ile M12 plug, 5-pole, fixed pin assignment: Pin1=21, Pin4=22 Pin2=31, Pin5=32, Pin3=PE. part-turn aktüatör right ve/veya left ayarlanabilir, metal lever 27 mm long ve plastic roller 19 mm, suitable için bağlantı to all SIMATIC ET 200 compact block I/O modülleri
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SE5
of the supplied basic switch3SE5114-0LA00-1AE3
of the supplied operating lever3SE5000-0AA01
product function positive openingVar
Ürün Hakkında
konum anahtar ile twist lever, metal muhafaza 40 according to DIN EN 50041, 1 NO/2 NC quick action contacts, ile M12 plug, 5-pole, fixed pin assignment: Pin1=21, Pin4=22 Pin2=31, Pin5=32, Pin3=PE. part-turn aktüatör right ve/veya left ayarlanabilir, metal lever 27 mm long ve plastic roller 19 mm, suitable için bağlantı to all SIMATIC ET 200 compact block I/O modülleri

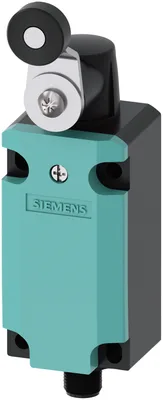

Siemens 3SE5114-0LH01-1AE3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SE5
of the supplied basic switch3SE5114-0LA00-1AE3
of the supplied actuator head for position switches3SE5000-0AH00
of the supplied operating lever3SE5000-0AA01
General technical data
product function positive openingVar
insulation voltage rated value125 V
degree of pollutionclass 3
surge voltage resistance rated value1,5 kV
protection class IPIP66/IP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical15.000.000
thermal current4 A
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG4 A
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1 Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-Yok. 96-45-7
Net Weight0,334 kg
minimum actuating force in directions of actuation20 N
length of the sensor141,5 mm
width of the sensor40 mm
Ambient conditions
during operation-25... +85 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
at 24 V rated value4 A
at 125 V rated value4 A
at 24 V rated value3 A
at 125 V rated value0,55 A
Enclosure
design of the housingblock, narrow
material of the enclosuremetal
coating of the enclosurecathodic dip coating
design of the housing according to standardVar
Drive Head
design of the actuating elementTwist lever, metal lever, 27 mm long, step 9 mm, plastic roller 19 mm
shape of the switch headroller
design of the switching functionPositive opening with appropriate positive opening actuator head
circuit principlesnap-action contacts
number of switching contacts safety-related2
cable entry typeM12 plug
design of plug-in connectionM12 connector, 5-pin: Pin 1= terminal 21, pin 2= 31, pin 3= PE, pin 4= 22, pin 5= 32

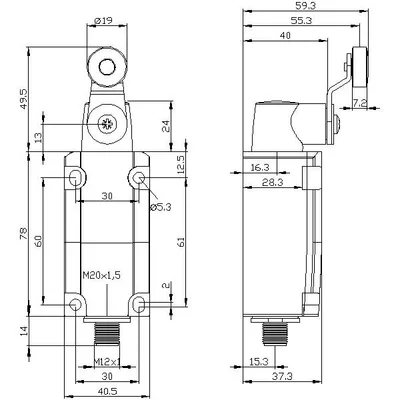

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionM12 plug, fixed
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Safety related data
product function suitable for safety functionVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2A
Aksesuarlar 14
Siemens 3SE5114-0LH01-1AE3 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SX5601-3SB55 | Aksesuar | |
| 3SY3027 | Aksesuar · Miscellaneous accessories · base plates | |
| 3SY3110 | Aksesuar · Miscellaneous accessories · laminations | |
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 3SX5601-3SV15 | Aksesuar | |
| 3SE5000-0AH00 | Bileşen | |
| 3SE5000-0AA01 | Bileşen | |
| 3SE5114-0LA00-1AE3 | Bileşen | |
| 3SX5100-1SS51 | Bileşen | |
| 3SE5000-0AT10 | Seçmeli zorunlu ürün | |
| 3SE5000-0AR01 | Seçmeli zorunlu ürün | |
| 3SE5000-0AR02 | Seçmeli zorunlu ürün | |
| 3SE5000-0AR04 | Seçmeli zorunlu ürün | |
| 3SE5000-0AR03 | Seçmeli zorunlu ürün |
