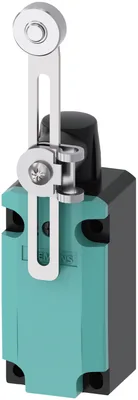

Siemens 3SE5112-0CH51
Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC quick action contacts Rotary actuator right/left adjustable with adjustable-length Metal lever 100 mm long and Stainless steel roller 19 mm
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
of the supplied basic switch3SE5112-0CA00
of the supplied operating lever3SE5000-0AA51
of the supplied switching contacts3SE5000-0CA00
Ürün Hakkında
Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC quick action contacts Rotary actuator right/left adjustable with adjustable-length Metal lever 100 mm long and Stainless steel roller 19 mm
Siemens 3SE5112-0CH51
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
of the supplied basic switch3SE5112-0CA00
of the supplied actuator head for position switches3SE5000-0AH00
of the supplied operating lever3SE5000-0AA51
of the supplied switching contacts3SE5000-0CA00
of the supplied empty enclosure with cover3SE5112-0AA00
General technical data
product function positive openingYok
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP66/IP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical15.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current10 A
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-Yok. 96-45-7
Net Weight0,341 kg
minimum actuating torque in directions of actuation0,25 N·m
length of the sensor192 mm
width of the sensor40 mm
Ambient conditions
during operation-25... +85 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 24 V rated value6 A
at 125 V rated value6 A
at 240 V rated value6 A
at 400 V rated value4 A
at 24 V rated value3 A
at 125 V rated value0,55 A
at 250 V rated value0,27 A
at 400 V rated value0,12 A
Enclosure
design of the housingblock, narrow
material of the enclosuremetal
coating of the enclosurecathodic dip coating
design of the housing according to standardVar
Drive Head
design of the actuating elementAdjustable twist lever, adjustable-length metal lever, high-grade steel roller 19 mm
standard-compliant actuator headEN 50041, design A
shape of the switch headroller
circuit principlesnap-action contacts
number of switching contacts safety-related0
cable entry type1x (M20 x 1,5)
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionscrew terminal
solid1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
finely stranded with core end processing1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
for AWG cables solid1x (20... 16), 2x (20... 18)
for AWG cables stranded1x (20... 16), 2x (20... 18)
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Aksesuarlar 9
Siemens 3SE5112-0CH51 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SY3128 | Aksesuar · Miscellaneous accessories · plugs | |
| 3SX9926 | Aksesuar · Miscellaneous accessories · cable glands | |
| 3SY3027 | Aksesuar · Miscellaneous accessories · base plates | |
| 3SY3110 | Aksesuar · Miscellaneous accessories · laminations | |
| 3SE5112-0CA00 | Bileşen | |
| 3SE5112-0AA00 | Bileşen | |
| 3SE5000-0CA00 | Bileşen | |
| 3SE5000-0AH00 | Bileşen | |
| 3SE5000-0AA51 | Bileşen |
