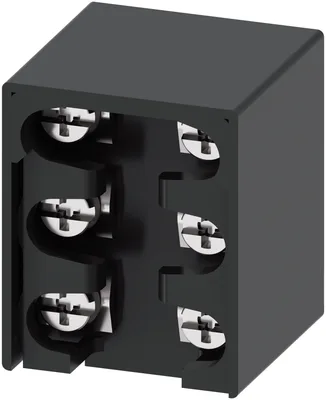

Siemens 3SE5060-0MA00
kontak block için konum anahtar 3SE5162 montaj konumu on the right in the anahtar 1 NO/2 NC slow-action kontak ile make-before-break
product brand nameSIRIUS
product designationcontact
product type designation3SE5
product function positive openingVar
insulation voltage rated value250 V
degree of pollutionclass 3
Ürün Hakkında
kontak block için konum anahtar 3SE5162 montaj konumu on the right in the anahtar 1 NO/2 NC slow-action kontak ile make-before-break
Siemens 3SE5060-0MA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationcontact
product type designation3SE5
General technical data
product function positive openingVar
insulation voltage rated value250 V
degree of pollutionclass 3
surge voltage resistance rated value4 kV
protection class IPIP00
according to IEC 60068-2-2730 g / 11 ms
according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical15.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current10 A
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0,1 mm
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,025 kg
width of the sensor25 mm
Ambient conditions
during operation-25... +85 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
at 24 V rated value6 A
at 125 V rated value6 A
at 240 V rated value6 A
at 400 V rated value4 A
at 24 V rated value3 A
at 125 V rated value0,55 A
at 250 V rated value0,27 A
at 400 V rated value0,12 A
Enclosure
coating of the enclosureOther types
Drive Head
design of the switching functionpositive opening
circuit principleslow-action contacts
number of switching contacts safety-related2
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
Connections/ Terminals
type of electrical connectionscrew terminal
solid1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
finely stranded with core end processing1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
for AWG cables solid1x (20... 16), 2x (20... 18)
for AWG cables stranded1x (20... 16), 2x (20... 18)
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
