Siemens 3SE2903-1AA20

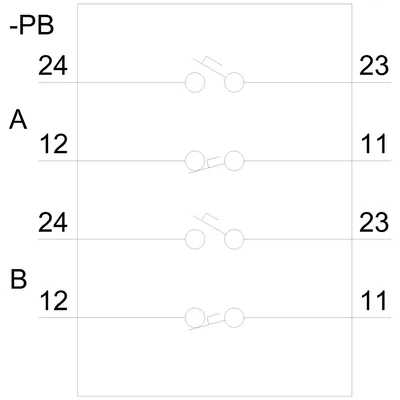

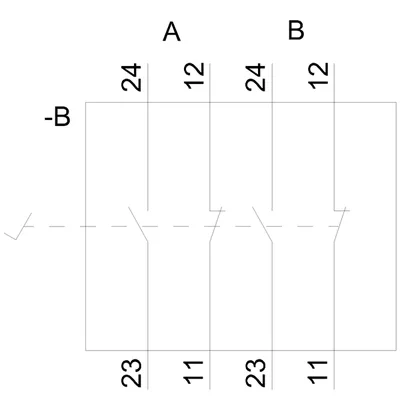

Old=3SE39031AA20 1-pedal, with cover, without latching, Metal enclosure IP65, 2 NO+2 NC, Cable entry M20 x 1.5
product brand nameSIRIUS
product designationmomentary-contact foot switch
product type designation3SE29
protection class IPIP65
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Ürün Hakkında
Old=3SE39031AA20 1-pedal, with cover, without latching, Metal enclosure IP65, 2 NO+2 NC, Cable entry M20 x 1.5
Siemens 3SE2903-1AA20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationmomentary-contact foot switch
product type designation3SE29
General technical data
protection class IPIP65
mechanical service life (operating cycles) typical1.000.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight1,422 kg
number of switching steps1
number of the actuation pedals1
minimum actuating force in directions of actuation20 N
Ambient conditions
ambient temperature during operation-25... +80 °C
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
at 230 V rated value6 A
at 400 V rated value6 A
at 24 V rated value3 A
at 250 V rated value0,25 A
Enclosure
material of the enclosuremetal
of the enclosureblack
of the enclosure top partgrey
Actuator
interlockYok
latchingYok
cable entry typeM20 x 1,5
Installation/ mounting/ dimensions
height138 mm
width156 mm
depth265 mm
Safety related data
with low demand rate according to SN 3192050 %
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
IEC 61508
T1 value for proof test interval or service life according to IEC 6150820 a
