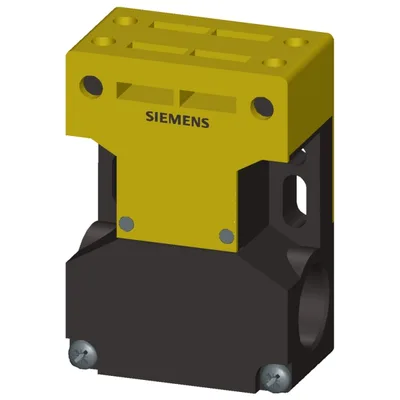

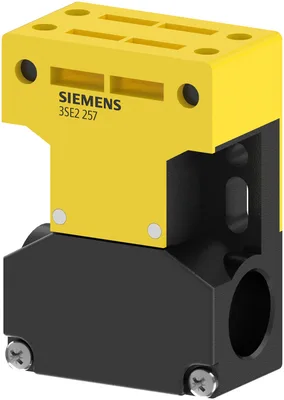

Siemens 3SE2257-6XX40
For 3SE2243/3SE2257, from August to October 2024, a color change from orange to yellow is planned. Molded-plastic-encapsulated short enclosure, 3x(M20x1.5) lateral and face-end operation slow-action contact 1 NC, Pull-out force 5 N Supplied without actuator
product brand nameSIRIUS
product designationsafety position switch
product type designation3SE22
insulation voltage rated value500 V
surge voltage resistance rated value6 kV
protection class IPIP67
Ürün Hakkında
For 3SE2243/3SE2257, from August to October 2024, a color change from orange to yellow is planned. Molded-plastic-encapsulated short enclosure, 3x(M20x1.5) lateral and face-end operation slow-action contact 1 NC, Pull-out force 5 N Supplied without actuator
Siemens 3SE2257-6XX40
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationsafety position switch
product type designation3SE22
General technical data
insulation voltage rated value500 V
surge voltage resistance rated value6 kV
protection class IPIP67
mechanical service life (operating cycles) typical1.000.000
thermal current10 A
reference code according to IEC 81346-2B
active principlemechanical
Substance Prohibitance (day/month/year)07/01/2006
Net Weight117 g

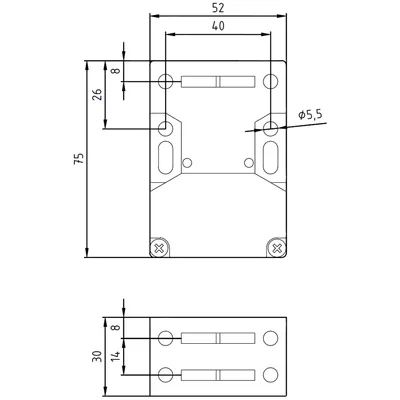

length of the sensor75 mm
width of the sensor52 mm
Ambient conditions
during operation-30... +80 °C
during storage-30... +80 °C
explosion protection category for dustyok
design of the switching contactmechanical
operating frequency rated value60... 50 Hz
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
at 230 V rated value4 A
at 24 V rated value4 A
Enclosure
design of the housingwide
material of the enclosureglass fiber reinforced thermoplast
coating of the enclosureOther types
design of the housing according to standardYok
Drive Head
design of the actuating elementwithout
design of the switching functionpositive opening
circuit principleslow-action contacts
number of switching contacts safety-related1
cable entry type3x (M20 x 1,5)
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionscrew terminal
solid2x (0,75... 2,5 mm²)
finely stranded with core end processing2x (0,75... 2,5 mm²)
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Aksesuarlar 5
Siemens 3SE2257-6XX40 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SX3218 | Seçmeli zorunlu ürün · Miscellaneous accessories · actuators | |
| 3SX3228 | Seçmeli zorunlu ürün · Miscellaneous accessories · actuators | |
| 3SX3217 | Seçmeli zorunlu ürün · Miscellaneous accessories · actuators | |
| 3SX3234 | Seçmeli zorunlu ürün · Miscellaneous accessories · actuators | |
| 3SX3256 | Seçmeli zorunlu ürün · Miscellaneous accessories · actuators |
