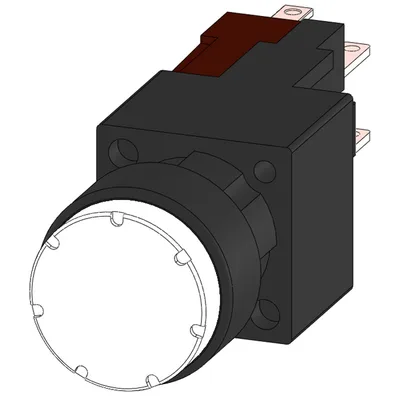

Siemens 3SB2226-0LH01
Illuminated pushbutton, 16 mm, round, plastic, clear, pushbutton, raised, 1 NO, Lampholder W2 x 4,6 d, ile incandescent lamba 24 V
product brand nameSIRIUS
product designationIlluminated pushbuttons
design of the productComplete unit round
product type designation3SB2
number of command points1
design of the actuating elementIlluminated pushbutton
Ürün Hakkında
Illuminated pushbutton, 16 mm, round, plastic, clear, pushbutton, raised, 1 NO, Lampholder W2 x 4,6 d, ile incandescent lamba 24 V
Siemens 3SB2226-0LH01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationIlluminated pushbuttons
design of the productComplete unit round
product type designation3SB2
Enclosure
number of command points1
Actuator
design of the actuating elementIlluminated pushbutton
principle of operation of the actuating elementmomentary contact type
product extension optional light sourceVar
color of the actuating elementclear
material of the actuating elementplastic
shape of the actuating elementRaised pushbutton
type of unlocking devicewithout
number of switching positions2
Front ring
product component front ringVar
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Contact block/ lampholder
socket designW2 x 4.6d with lamp
number of lampholders1
number of switching elements1
General technical data
positive openingYok
EMERGENCY STOP functionYok
product component light sourceVar
type of voltage of the operating voltageAC/DC
protection class IPIP65
vibration resistance according to IEC 60068-2-620... 200 Hz: 5 g
operating frequency maximum1.000 1/h
mechanical service life (operating cycles) typical3.000.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,017 kg
operating voltage rated value5... 60 V
Besleme gerilimi
of the light sourceAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
supply voltage 1 of the light source at DC rated value24 V
relative negative tolerance of the supply voltage-15 %
relative positive tolerance of the supply voltage10 %
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts0
consumed current for rated value of supply voltage maximum40 mA
at 24 V rated value10 A
at 60 V rated value10 A
at 110 V rated value10 A
at 230 V rated value10 A
at 24 V rated value4 A
at 110 V rated value4 A
at 230 V rated value4 A
at 24 V rated value6 A
at 60 V rated value5 A
at 110 V rated value2,5 A
at 230 V rated value1 A
at 24 V rated value3 A
at 60 V rated value1,2 A
at 110 V rated value0,7 A
at 230 V rated value0,3 A
Connections/ Terminals
type of electrical connectiontab terminals
tightening torque of the screws in the bracket maximum0,4 N·m
Ambient conditions
during operation-25... +60 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213K6
Installation/ mounting/ dimensions
fastening methodfront plate mounting
shape of the installation openinground
mounting diameter16 mm
mounting height12 mm
installation width19 mm
installation depth50 mm
