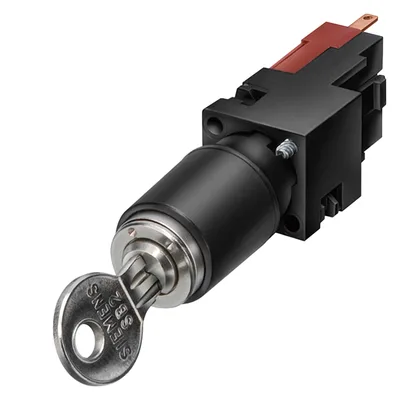

Siemens 3SB2210-4QA01
keyswitch, 16 mm, round, plastic, CES, 3 switch positions I>O<II, momentary contact type, resetting from left and right, actuating angle 2 x 50 degrees, key removal O, 1 NO, 1 NO
product brand nameSIRIUS
product designationKey-operated switches
design of the productComplete unit round
product type designation3SB2
number of command points1
design of the actuating elementKey-operated switch
Ürün Hakkında
keyswitch, 16 mm, round, plastic, CES, 3 switch positions I>O<II, momentary contact type, resetting from left and right, actuating angle 2 x 50 degrees, key removal O, 1 NO, 1 NO
Siemens 3SB2210-4QA01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationKey-operated switches
design of the productComplete unit round
product type designation3SB2
Enclosure
number of command points1
Actuator
design of the actuating elementKey-operated switch
principle of operation of the actuating elementmomentary contact type
product extension optional light sourceYok
material of the actuating elementplastic
type of unlocking devicewithout
number of switching positions3
switch position for key distractionO
clockwise50°
anticlockwise50°
lock makeCES
Front ring
product component front ringYok
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Contact block/ lampholder
number of lampholders0
number of switching elements2
General technical data
positive openingYok
EMERGENCY STOP functionYok
type of voltage of the operating voltageAC/DC
protection class IPIP65
vibration resistance according to IEC 60068-2-620... 200 Hz: 5 g
operating frequency maximum1.000 1/h
mechanical service life (operating cycles) typical300.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,04 kg
operating voltage rated value5... 250 V
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts2
number of CO contacts for auxiliary contacts0
at 24 V rated value10 A
at 60 V rated value10 A
at 110 V rated value10 A
at 230 V rated value10 A
at 24 V rated value4 A
at 110 V rated value4 A
at 230 V rated value4 A
at 24 V rated value6 A
at 60 V rated value5 A
at 110 V rated value2,5 A
at 230 V rated value1 A
at 24 V rated value3 A
at 60 V rated value1,2 A
at 110 V rated value0,7 A
at 230 V rated value0,3 A
Connections/ Terminals
type of electrical connectiontab terminals
tightening torque of the screws in the bracket maximum0,4 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213K6
Installation/ mounting/ dimensions
fastening methodfront plate mounting
shape of the installation openinground
mounting diameter16 mm
mounting height20 mm
installation width19 mm
installation depth50 mm
Aksesuarlar 11
Siemens 3SB2210-4QA01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SB2902-0AA | Aksesuar | |
| 3SB2404-0B | Aksesuar | |
| 3SB2404-0C | Aksesuar | |
| 3SB2404-0D | Aksesuar | |
| 3SB2908-3AA | Aksesuar | |
| 3SB2902-0AB | Aksesuar | |
| 3SB2908-2AJ | Bileşen | |
| 3SB2908-8AA | Seçmeli zorunlu ürün | |
| 3SB2908-8AE | Seçmeli zorunlu ürün | |
| 3SB2908-8AB | Seçmeli zorunlu ürün | |
| 3SB2908-8AD | Seçmeli zorunlu ürün |
