Siemens 3SB2203-1AC01

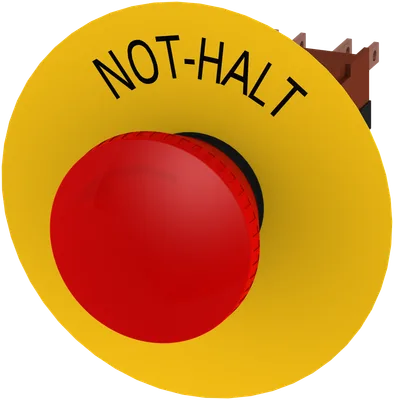

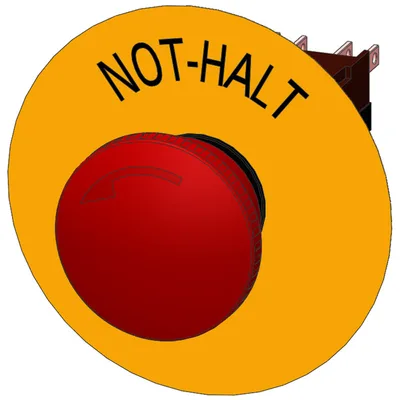

Emergency stop mushroom pushbutton, 16 mm, round, plastic, red, latching, with rotate-to-unlatch mechanism, according to ISO 13850, 1 NC, with yellow backing plate, EMERGENCY STOP
product brand nameSIRIUS
product designationEMERGENCY STOP mushroom pushbuttons
product type designation3SB2
number of command points1
design of the actuating elementEMERGENCY STOP mushroom pushbutton
product extension optional light sourceYok
Ürün Hakkında
Emergency stop mushroom pushbutton, 16 mm, round, plastic, red, latching, with rotate-to-unlatch mechanism, according to ISO 13850, 1 NC, with yellow backing plate, EMERGENCY STOP
Siemens 3SB2203-1AC01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationEMERGENCY STOP mushroom pushbuttons
design of the productComplete unit round with positive latching in accordance with ISO 13850
product type designation3SB2
Enclosure
number of command points1
Actuator
design of the actuating elementEMERGENCY STOP mushroom pushbutton
principle of operation of the actuating elementlatching
product extension optional light sourceYok
color of the actuating elementred
material of the actuating elementplastic
type of unlocking devicerotate-to-unlatch mechanism
number of switching positions2
Front ring
product component front ringYok
Holder
material of the holderPlastic
Contact block/ lampholder
number of lampholders0
number of switching elements1
General technical data
positive openingVar
EMERGENCY STOP functionVar
type of voltage of the operating voltageAC/DC
protection class IPIP65
vibration resistance according to IEC 60068-2-620... 200 Hz: 5 g
operating frequency maximum1.000 1/h
mechanical service life (operating cycles) typical10.000.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,02 kg
operating voltage rated value5... 250 V
Auxiliary circuit
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
at 24 V rated value10 A
at 60 V rated value10 A
at 110 V rated value10 A
at 230 V rated value10 A
at 24 V rated value4 A
at 110 V rated value4 A
at 230 V rated value4 A
at 24 V rated value6 A
at 60 V rated value5 A
at 110 V rated value2,5 A
at 230 V rated value1 A
at 24 V rated value3 A
at 60 V rated value1,2 A
at 110 V rated value0,7 A
at 230 V rated value0,3 A
Connections/ Terminals
type of electrical connectiontab terminals
tightening torque of the screws in the bracket maximum0,4 N·m
Safety related data
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
B10 value with high demand rate according to SN 31920100.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
IEC 61508
T1 value for proof test interval or service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213K6

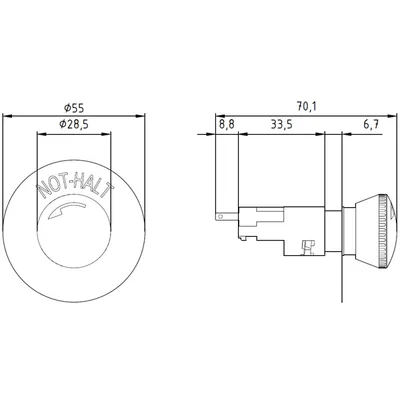

Installation/ mounting/ dimensions
fastening methodfront plate mounting
shape of the installation openinground
mounting diameter16 mm
mounting height21 mm
installation width28,5 mm
installation depth50 mm
Accessories
marking of backing plateYellow backing plate, inscription "NOT-HALT"
Aksesuarlar 12
Siemens 3SB2203-1AC01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SB2902-0AA | Aksesuar | |
| 3SB2404-0B | Aksesuar | |
| 3SB2404-0C | Aksesuar | |
| 3SB2404-0D | Aksesuar | |
| 3SB2908-3AA | Aksesuar | |
| 3SB2908-2AF | Seçmeli zorunlu ürün | |
| 3SB2908-2AG | Seçmeli zorunlu ürün | |
| 3SB2908-2AK | Seçmeli zorunlu ürün | |
| 3SB2908-8AA | Seçmeli zorunlu ürün | |
| 3SB2908-8AE | Seçmeli zorunlu ürün | |
| 3SB2908-8AB | Seçmeli zorunlu ürün | |
| 3SB2908-8AD | Seçmeli zorunlu ürün |
