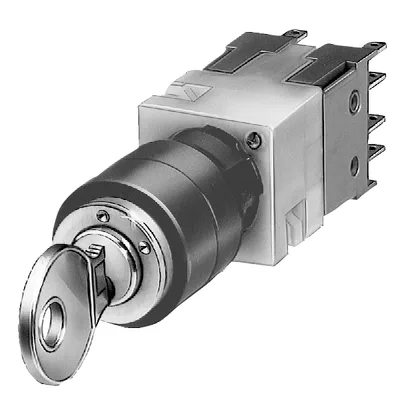

Siemens 3SB2202-4LB01
keyswitch, 16 mm, round, plastic, CES, 2 switch positions O-I, latching, actuating angle 62 degrees, key removal O+I
product brand nameSIRIUS
product designationKey-operated switches
design of the productComplete unit round
product type designation3SB2
number of command points1
design of the actuating elementKey-operated switch
Ürün Hakkında
keyswitch, 16 mm, round, plastic, CES, 2 switch positions O-I, latching, actuating angle 62 degrees, key removal O+I
Siemens 3SB2202-4LB01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationKey-operated switches
design of the productComplete unit round
product type designation3SB2
Enclosure
number of command points1
Actuator
design of the actuating elementKey-operated switch
principle of operation of the actuating elementlatching
product extension optional light sourceYok
material of the actuating elementplastic
type of unlocking devicekey unlatching
number of switching positions2
switch position for key distractionO+I
clockwise62°
lock makeCES
Front ring
product component front ringYok
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Contact block/ lampholder
number of lampholders0
number of switching elements1
General technical data
positive openingYok
EMERGENCY STOP functionYok
type of voltage of the operating voltageAC/DC
protection class IPIP65
vibration resistance according to IEC 60068-2-620... 200 Hz: 5 g
operating frequency maximum1.000 1/h
mechanical service life (operating cycles) typical300.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,04 kg
operating voltage rated value5... 250 V
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts0
at 24 V rated value10 A
at 60 V rated value10 A
at 110 V rated value10 A
at 230 V rated value10 A
at 24 V rated value4 A
at 110 V rated value4 A
at 230 V rated value4 A
at 24 V rated value6 A
at 60 V rated value5 A
at 110 V rated value2,5 A
at 230 V rated value1 A
at 24 V rated value3 A
at 60 V rated value1,2 A
at 110 V rated value0,7 A
at 230 V rated value0,3 A
Connections/ Terminals
type of electrical connectiontab terminals
tightening torque of the screws in the bracket maximum0,4 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213K6
Installation/ mounting/ dimensions
fastening methodfront plate mounting
shape of the installation openinground
mounting diameter16 mm
mounting height20 mm
installation width19 mm
installation depth50 mm
Aksesuarlar 27
Siemens 3SB2202-4LB01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SB2902-0AA | Aksesuar | |
| 3SB2404-0B | Aksesuar | |
| 3SB2404-0C | Aksesuar | |
| 3SB2404-0D | Aksesuar | |
| 3SB2908-3AA | Aksesuar | |
| 3SB2902-0AB | Aksesuar | |
| 3SB2910-0AE | Bileşen | |
| 3SB2910-0AB | Bileşen | |
| 3SB2910-0DD | Bileşen | |
| 3SB2910-0DC | Bileşen | |
| 3SB2910-0CF | Bileşen | |
| 3SB2910-0CE | Bileşen | |
| 3SB2910-0CD | Bileşen | |
| 3SB2910-0CC | Bileşen | |
| 3SB2910-0BH | Bileşen | |
| 3SB2910-0BD | Bileşen | |
| 3SB2910-0BC | Bileşen | |
| 3SB2910-0AC | Bileşen | |
| 3SB2910-0AH | Bileşen | |
| 3SB2910-0AG | Bileşen | |
| 3SB2910-0AF | Bileşen | |
| 3SB2910-0AD | Bileşen | |
| 3SB2910-0BB | Bileşen | |
| 3SB2908-8AE | Seçmeli zorunlu ürün | |
| 3SB2908-8AA | Seçmeli zorunlu ürün | |
| 3SB2908-8AB | Seçmeli zorunlu ürün | |
| 3SB2908-8AD | Seçmeli zorunlu ürün |
