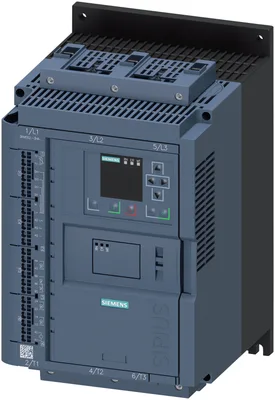

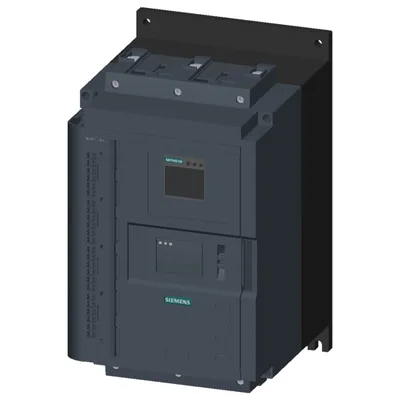

Siemens 3RW5527-3HA14

SIRIUS soft starter 200-480 V 93 A, 110-250 V AC spring-type terminals

SiemensMFR # 3RW5527-3HA14SKU # CEY-937FC780C359

product brand nameSIRIUS

product categoryHybrid switching devices

product designationSoft starter

product type designation3RW55

of high feature HMI module usable3RW5980-0HF00

of communication module PROFIBUS usable3RW5980-0CP00

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIRIUS soft starter 200-480 V 93 A, 110-250 V AC spring-type terminals

Siemens 3RW5527-3HA14

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product categoryHybrid switching devices

product designationSoft starter

product type designation3RW55

of high feature HMI module usable3RW5980-0HF00

of communication module PROFINET standard usable3RW5980-0CS00

of communication module PROFINET high-feature usable3RW5950-0CH00

of communication module PROFIBUS usable3RW5980-0CP00

of communication module Modbus TCP usable3RW5980-0CT00

of communication module Modbus RTU usable3RW5980-0CR00

of communication module Ethernet/IP3RW5980-0CE00

of circuit breaker usable at 400 V3VA2216-7MN32-0AA0; Type of coordination 1, Iq = 15 kA, CLASS 10

of circuit breaker usable at 500 V3VA2216-7MN32-0AA0; Type of coordination 1, Iq = 10 kA, CLASS 10

of circuit breaker usable at 400 V at inside-delta circuit3VA2220-7MN32-0AA0; Type of coordination 1, Iq = 15 kA, CLASS 10

of circuit breaker usable at 500 V at inside-delta circuit3VA2220-7MN32-0AA0; Type of coordination 1, Iq = 10 kA, CLASS 10

of the gG fuse usable up to 690 V3NA3136-6; Type of coordination 1, Iq = 65 kA

of the gG fuse usable at inside-delta circuit up to 500 V3NA3136-6; Type of coordination 1, Iq = 65 kA

of full range R fuse link for semiconductor protection usable up to 690 V3NE1224-0; Type of coordination 2, Iq = 65 kA

of back-up R fuse link for semiconductor protection usable up to 690 V3NE3227; Type of coordination 2, Iq = 65 kA

General technical data

starting voltage [%]20... 100 %

stopping voltage [%]50 %; non-adjustable

start-up ramp time of soft starter0... 360 s

ramp-down time of soft starter0... 360 s

start torque [%]10... 100 %

stopping torque [%]10... 100 %

torque limitation [%]20... 200 %

current limiting value [%] adjustable125... 800 %

breakaway voltage [%] adjustable40... 100 %

breakaway time adjustable0... 2 s

number of parameter sets3

accuracy class5 (based on IEC 61557-12)

CE markingVar

UL onayıVar

CSA approvalVar

HMI-High FeatureVar

is supported HMI-High FeatureVar

product feature integrated bypass contact systemVar

number of controlled phases3

current unbalance limiting value [%]10... 60 %

ground-fault monitoring limiting value [%]10... 95 %

for main current circuit100 ms

for control circuit100 ms

idle time adjustable0... 255 s

insulation voltage rated value480 V

degree of pollution3, acc. to IEC 60947-4-2

impulse voltage rated value6 kV

blocking voltage of the thyristor maximum1.400 V

service factor1,15

surge voltage resistance rated value6 kV

between main and auxiliary circuit480 V; does not apply for thermistor connection

shock resistance15 g / 11 ms, from 6 g / 11 ms with potential contact lifting

vibration resistance15 mm up to 6 Hz; 2 g up to 500 Hz

recovery time after overload trip adjustable60... 1.800 s

utilization category according to IEC 60947-4-2AC 53a

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)02/15/2018

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-Yok. 22673-19-4 Diboron trioxide CAS-Yok. 1303-86-2

Net Weight6,518 kg

ramp-up (soft starting)Var

soft stoppingVar

breakaway pulseVar

adjustable current limitationVar

creep speed in both directions of rotationVar

pump stopVar

DC brakingVar

motor heatingVar

min/max pointerVar

trace functionVar

intrinsic device protectionVar

motor overload protectionVar; Full motor protection (thermistor motor protection ve electronic motor overload protection) / When using the motor overload protection according to ATEX, an upstream contactor is required in inside-delta circuit.

evaluation of thermistor motor protectionVar; Type A PTC veya Klixon / Thermoclick

inside-delta circuitVar

auto-RESETVar

manual RESETVar

remote resetVar

communication functionVar

operating measured value displayVar

event listVar

error logbookVar

via software parameterizableVar

via software configurableVar

screw terminalYok

spring-loaded terminalVar

PROFIenergyVar; in connection with the PROFINET Standard ve PROFINET High-Feature communication modules

firmware updateVar

removable terminal for control circuitVar

voltage rampVar

torque controlVar

combined brakingVar

analog outputVar; 4... 20 mA (default) / 0... 10 V

programmable control inputs/outputsVar

condition monitoringVar

automatic parameterisationVar

application wizardsVar

alternative stopping modeVar

emergency operation modeVar

reversing operationVar

soft starting at heavy starting conditionsVar

Power Electronics

at 40 °C rated value93 A

at 40 °C rated value minimum19 A

at 50 °C rated value82,5 A

at 60 °C rated value75,5 A

at 40 °C rated value161 A

at 50 °C rated value143 A

at 60 °C rated value131 A

rated value200... 480 V

at inside-delta circuit rated value200... 480 V

relative negative tolerance of the operating voltage-15 %

relative positive tolerance of the operating voltage10 %

relative negative tolerance of the operating voltage at inside-delta circuit-15 %

relative positive tolerance of the operating voltage at inside-delta circuit10 %

at 230 V at 40 °C rated value22 kW

at 230 V at inside-delta circuit at 40 °C rated value45 kW

at 400 V at 40 °C rated value45 kW

at 400 V at inside-delta circuit at 40 °C rated value90 kW

Operating frequency 1 rated value50 Hz

Operating frequency 2 rated value60 Hz

relative negative tolerance of the operating frequency-10 %

relative positive tolerance of the operating frequency10 %

minimum load [%]10 %; Relative to set Ie

at 40 °C after startup28 W

at 50 °C after startup25 W

at 60 °C after startup23 W

at 40 °C during startup1.258 W

at 50 °C during startup1.065 W

at 60 °C during startup948 W

type of the motor protectionElectronic, tripping in the event of thermal overload of the motor

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz110... 250 V

at 60 Hz110... 250 V

relative negative tolerance of the control supply voltage at AC at 50 Hz-15 %

relative positive tolerance of the control supply voltage at AC at 50 Hz10 %

relative negative tolerance of the control supply voltage at AC at 60 Hz-15 %

relative positive tolerance of the control supply voltage at AC at 60 Hz10 %

control supply voltage frequency50... 60 Hz

relative negative tolerance of the control supply voltage frequency-10 %

relative positive tolerance of the control supply voltage frequency10 %

control supply current in standby mode rated value100 mA

holding current in bypass operation rated value180 mA

inrush current by closing the bypass contacts maximum0,8 A

inrush current peak at application of control supply voltage maximum43 A

duration of inrush current peak at application of control supply voltage1,6 ms

design of the overvoltage protectionVaristor

design of short-circuit protection for control circuit4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply

Inputs/ Outputs

number of digital inputs4

parameterizable4

number of digital outputs4

number of digital outputs parameterizable3

number of digital outputs not parameterizable1

digital output version3 normally-open contacts (NO) / 1 changeover contact (CO)

number of analog outputs1

at AC-15 at 250 V rated value3 A

at DC-13 at 24 V rated value1 A

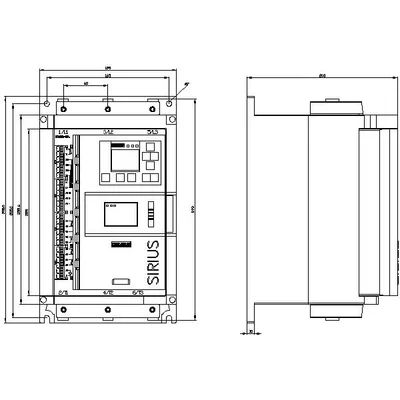

Installation/ mounting/ dimensions

mounting positionVertical (can be rotated +/- 90° ve tilted forward veya backward +/- 22,5°)

fastening methodscrew fixing

height306 mm

width185 mm

depth203 mm

forwards10 mm

backwards0 mm

upwards100 mm

downwards75 mm

at the side5 mm

weight without packaging7,15 kg

Connections/ Terminals

for main current circuitbox terminal

for control circuitspring-loaded terminals

width of connection bar maximum25 mm

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

using the front clamping point solid1x (2,5... 16 mm²)

using the front clamping point finely stranded with core end processing1x (2,5... 50 mm²)

using the front clamping point stranded1x (10... 70 mm²)

using the back clamping point solid1x (2,5... 16 mm²)

r box terminal using the back clamping point1x (10... 2/0)

using both clamping points solid2x (2,5... 16 mm²)

using both clamping points finely stranded with core end processing2x (2,5... 35 mm²)

using both clamping points stranded2x (6... 16 mm²), 2x (10... 50 mm²)

using the back clamping point finely stranded with core end processing1x (2,5... 50 mm²)

using the back clamping point stranded1x (10... 70 mm²)

for control circuit solid2x (0,25... 1,5 mm²)

for control circuit finely stranded with core end processing2x (0,25... 1,5 mm²)

for AWG cables for control circuit solid2x (24... 16)

for AWG cables for control circuit finely stranded with core end processing2x (24... 16)

between soft starter and motor maximum800 m

at the digital inputs at DC maximum1.000 m

for main contacts with screw-type terminals4,5... 6 N·m

for auxiliary and control contacts with screw-type terminals0,8... 1,2 N·m

for main contacts with screw-type terminals40... 53 lbf·in

for auxiliary and control contacts with screw-type terminals7... 10,3 lbf·in

Ambient conditions

installation altitude at height above sea level maximum5.000 m

during operation-25... +60 °C; Please observe derating temperatures of 40 °C veya above

during storage and transport-40... +80 °C

during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (maks. fall height 0,3 m)

Electromagnetic compatibility

EMC emitted interferenceacc. to IEC 60947-4-2: Class A, Class B talep üzerine

Communication/ Protocol

PROFINET standardVar

PROFINET high-featureVar

EtherNet/IPVar

Modbus RTUVar

Modbus TCPVar

PROFIBUSVar

UL/CSA ratings

— at 460/480 V according to ULSiemens type: 3VA51, maks. 125 A; Iq = 10 kA

— 60/480 V according to ULSiemens type: 3VA51, maks. 125 A; Iq max = 65 kA

— at 460/480 V at inside-delta circuit according to ULSiemens type: 3VA51, maks. 125 A; Iq = 10 kA

— 60/480 V at inside-delta circuit according to ULSiemens type: 3VA51, maks. 125 A; Iq max = 65 kA

— at 575/600 V according to ULSiemens type: 3VA51, maks. 125 A; Iq = 10 kA

— 75/600 V at inside-delta circuit according to ULSiemens type: 3VA51, maks. 125 A; Iq max = 65 kA

— at 575/600 V at inside-delta circuit according to ULSiemens type: 3VA51, maks. 125 A; Iq = 10 kA

— usable for Standard Faults up to 575/600 V according to ULType: Class RK5 / K5, maks. 300 A; Iq = 10 kA

— usable for High Faults up to 575/600 V according to ULType: Class J / L, maks. 250 A; Iq = 100 kA

— usable for Standard Faults at inside-delta circuit up to 575/600 V according to ULType: Class RK5 / K5, maks. 300 A; Iq = 10 kA

— usable for High Faults at inside-delta circuit up to 575/600 V according to ULType: Class J / L, maks. 250 A; Iq = 100 kA

at 200/208 V at 50 °C rated value25 hp

at 220/230 V at 50 °C rated value30 hp

at 460/480 V at 50 °C rated value60 hp

at 200/208 V at inside-delta circuit at 50 °C rated value40 hp

at 220/230 V at inside-delta circuit at 50 °C rated value50 hp

at 460/480 V at inside-delta circuit at 50 °C rated value100 hp

contact rating of auxiliary contacts according to ULR300-B300

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with cover

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with cover

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEXSIL 1

PFHD with high demand rate according to IEC 61508 relating to ATEX5E-7 1/h

PFDavg with low demand rate according to IEC 61508 relating to ATEX0,008

hardware fault tolerance according to IEC 61508 relating to ATEX0

T1 value for proof test interval or service life according to IEC 61508 relating to ATEX3 a

ATEXVar

IECExVar

according to ATEX directive 2014/34/EUBVS 18 ATEX F 003 X

type of protection according to ATEX directive 2014/34/EUII (2)G [Ex eb Gb] [Ex db Gb] [Ex pxb Gb], II (2)D [Ex tb Db] [Ex pxb Db], I (M2) [Ex db Mb]

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing92,6 kg

global warming potential [CO2 eq] / during sales2,37 kg

global warming potential [CO2 eq] / during operation324 kg

global warming potential [CO2 eq] / after end of life-19.4 kg

global warming potential [CO2 eq] / total399 kg

Aksesuarlar 14

Siemens 3RW5527-3HA14 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RW5950-0CH00	Aksesuar · Communication modules
3RW5980-0CP00	Aksesuar · Communication modules
3RW5980-0CR00	Aksesuar · Communication modules
3RW5980-0CS00	Aksesuar · Communication modules
3RW5980-0CT00	Aksesuar · Communication modules
3RW5980-0CE00	Aksesuar · Communication modules
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RW5983-0TC20	Aksesuar · Terminal covers
3RW5983-0FC00	Aksesuar · Fan covers
3RW5980-0HF00	Yedek parça · HMI modules
3VA2216-7MN32-0AA0	Seçmeli zorunlu ürün
3NA3136-6	Seçmeli zorunlu ürün
3NE1224-0	Seçmeli zorunlu ürün
3NE3227	Seçmeli zorunlu ürün

İlgili Ürünler

MFR #BC8M12

SKU #YLSA0P5BE6ZJCIW

İlgili Aramalar

Siemens 3RW5527-3HA14 fiyatSiemens 3RW5527-3HA14 teklif alSiemens 3RW5527-3HA14 satın al3RW5527-3HA14 fiyat3RW5527-3HA14 stok durumuSiemens yedek parçaSiemens 3RW5527-3HA14 muadilSiemens 3RW5527-3HA14 teknik özellikler

Çerez Kullanımı

Siemens 3RW5527-3HA14

Ürün Hakkında

Siemens 3RW5527-3HA14

Teknik Özellikler

Aksesuarlar 14

İlgili Ürünler

3MV8100-0MB00

3MV8100-0MC00

3MV8100-0MD00

3MV8100-0ME00

3MV8100-0MF00

3MV8100-0MG00

3MV8100-0MH00

3MV8100-0MJ00

3MV8100-0MK00

3MV8100-0ML00

Öne Çıkan Ürünler

MXQ25L-40B-M9NZ

MY1M20-200AH

NCMC150-0600-X103US

ZCUKQ25-50D

MTS32-150M

MDBB63-100Z

MGPL25TN-200BZ-XC9

CG5EN50SV-150

AC20A-01G-V-1-B FR/L COMBO MODULAR

BC8M12

İlgili Aramalar
