Siemens 3RW3047-2BB04 için nasıl fiyat teklifi alabilirim?

Siemens 3RW3047-2BB04 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B0392FD5 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RW3047-2BB04 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RW3047-2BB04 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RW3047-2BB04 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

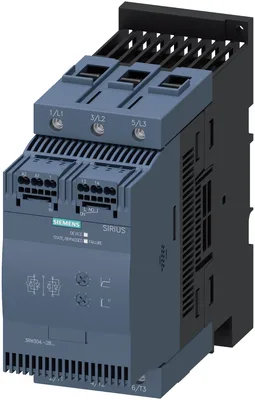

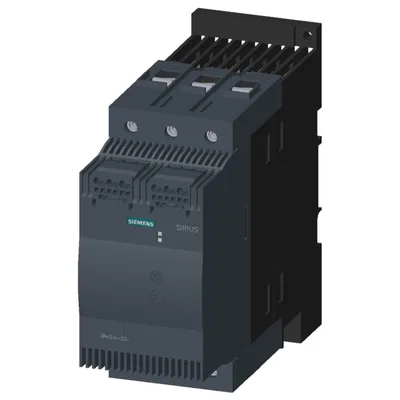

Siemens 3RW3047-2BB04

SIRIUS soft starter S3 106 A, 55 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC spring-type terminals

SiemensMFR # 3RW3047-2BB04SKU # CEY-8EF3B0392FD5

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemVar

thyristorsVar

intrinsic device protectionYok

motor overload protectionYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIRIUS soft starter S3 106 A, 55 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC spring-type terminals

Siemens 3RW3047-2BB04

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

General technical data

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemVar

thyristorsVar

intrinsic device protectionYok

motor overload protectionYok

evaluation of thermistor motor protectionYok

external resetYok

adjustable current limitationYok

inside-delta circuitYok

product component motor brake outputYok

insulation voltage rated value600 V

degree of pollution3, acc. to IEC 60947-4-2

blocking voltage of the thyristor maximum1.600 V

reference code according to EN 61346-2Q

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750G

Power Electronics

at 40 °C rated value106 A

at 50 °C rated value98 A

at 60 °C rated value90 A

— at standard circuit at 40 °C rated value30 kW

— at standard circuit at 40 °C rated value55 kW

yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value30 hp

operating frequency rated value50... 60 Hz

relative negative tolerance of the operating frequency-10 %

relative positive tolerance of the operating frequency10 %

operating voltage at standard circuit rated value200... 480 V

relative negative tolerance of the operating voltage at standard circuit-15 %

relative positive tolerance of the operating voltage at standard circuit10 %

minimum load [%]10 %

continuous operating current [% of Ie] at 40 °C115 %

power loss [W] at operational current at 40 °C during operation typical21 W

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

control supply voltage frequency 1 rated value50 Hz

control supply voltage frequency 2 rated value60 Hz

relative negative tolerance of the control supply voltage frequency-10 %

relative positive tolerance of the control supply voltage frequency10 %

at 50 Hz rated value24 V

at 60 Hz rated value24 V

relative negative tolerance of the control supply voltage at AC at 50 Hz-20 %

relative positive tolerance of the control supply voltage at AC at 50 Hz20 %

relative negative tolerance of the control supply voltage at AC at 60 Hz-20 %

relative positive tolerance of the control supply voltage at AC at 60 Hz20 %

control supply voltage 1 at DC rated value24 V

relative negative tolerance of the control supply voltage at DC-20 %

relative positive tolerance of the control supply voltage at DC20 %

display version for fault signalred

Mechanical data

size of engine control deviceS3

width70 mm

height170 mm

depth190 mm

fastening methodscrew ve snap-on mounting

mounting positionWith dikey mounting surface +/-10° rotatable, with dikey mounting surface +/- 10° tiltable to the front ve back

upwards60 mm

at the side30 mm

downwards40 mm

wire length maximum300 m

number of poles for main current circuit3

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitspring-loaded terminals

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts0

solid2x (2,5... 16 mm²)

finely stranded with core end processing2,5... 35 mm²

stranded4... 70 mm²

solid2x (2,5... 16 mm²)

finely stranded with core end processing2,5... 50 mm²

stranded10... 70 mm²

solid2x (2,5... 16 mm²)

finely stranded with core end processing2x (2,5... 35 mm²)

stranded2x (10... 50 mm²)

using the back clamping point10... 2/0

using the front clamping point10... 2/0

using both clamping points2x (10... 1/0)

finely stranded2 x (10... 50 mm²)

stranded2x (10... 70 mm²)

solid2x (0,25... 2,5 mm²)

finely stranded with core end processing2x (0,25... 1,5 mm²)

for main contacts2x (7... 1/0)

for auxiliary contacts2x (24... 14)

Ambient conditions

installation altitude at height above sea level5.000 m

during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (maks. fall height 0,3 m)

during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during operation-25... +60 °C

during storage-40... +80 °C

derating temperature40 °C

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

UL/CSA ratings

— at standard circuit at 50 °C rated value30 hp

— at standard circuit at 50 °C rated value75 hp

contact rating of auxiliary contacts according to ULB300 / R300

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing18,6 kg

global warming potential [CO2 eq] / during sales0,423 kg

global warming potential [CO2 eq] / during operation140 kg

global warming potential [CO2 eq] / after end of life-4.48 kg

global warming potential [CO2 eq] / total154 kg

Aksesuarlar 10

Siemens 3RW3047-2BB04 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA1941-1AA00	Aksesuar · Wiring modules, connectors and kits · link modules
3RT2946-4EA2	Aksesuar · Terminal covers · terminal covers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2946-4F	Aksesuar · Terminal covers · auxiliary conductor terminals
3RT1946-4EA1	Aksesuar · Terminal covers · terminal covers
3RV2041-4MA10	Seçmeli zorunlu ürün
3NA3136-6	Seçmeli zorunlu ürün
3NE1820-0	Seçmeli zorunlu ürün
3NE3224	Seçmeli zorunlu ürün
3NE8024-1	Seçmeli zorunlu ürün
