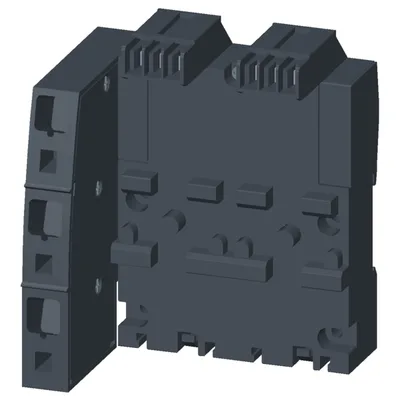

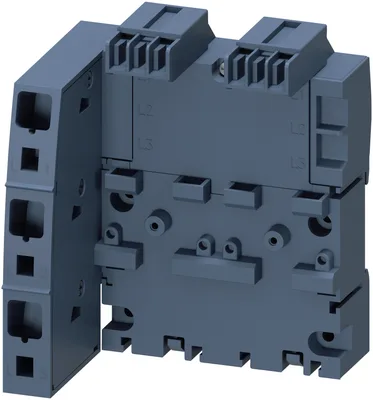

Siemens 3RV2917-1A
3-phase busbar with infeed left for 2 circuit breakers Size S00 and S0
product brand nameSIRIUS
product categoryInfeed systems
product designation3-phase busbar
design of the productfor 2 switches with infeed on the left
product type designation3RV29
suitability for usecircuit-breakers 3RV2
Ürün Hakkında
3-phase busbar with infeed left for 2 circuit breakers Size S00 and S0
Siemens 3RV2917-1A
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryInfeed systems
product designation3-phase busbar
design of the productfor 2 switches with infeed on the left
product type designation3RV29
suitability for usecircuit-breakers 3RV2
General technical data
certificate of suitabilityCE / UL / CSA / CCC
size of the circuit-breakerS00, S0
power loss [W] for rated value of the current at AC in hot operating state per pole4,52 W
type of calculation of power loss current-dependentquadratic
surge voltage resistance rated value6 kV
protection class IP on the front according to IEC 60529IP00
thermal current63 A
Substance Prohibitance (day/month/year)10/01/2009
Net Weight366,21 g
number of poles for main current circuit3
operating voltage at AC rated value500 V
operational current rated value63 A
UL/CSA ratings
operating voltage at AC according to UL rated value600 V
Ambient conditions
ambient temperature during operation-20... +60 °C
Electrical Safety
protection class IP on the front according to IEC 60529IP00; IP20 when using finely stranded conductor cross-section 6 mm² with end sleeve (with plastic collar) veya conductor cross-section ≥ 10 mm² the infeed terminal
touch protection on the front according to IEC 60529finger-safe when using finely stranded conductor cross-section 6 mm² ve end sleeve (with plastic collar) veya conductor cross-section ≥ 10 mm² the supply terminal
Short-circuit protection
short-circuit ratingsee table in the operating instructions

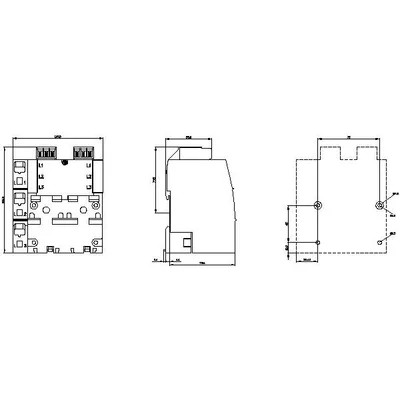

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on fastening on 35 mm DIN rail
height129 mm
width110 mm
depth87 mm
— backwards0 mm
— upwards10 mm
— at the side0 mm
— backwards0 mm
— upwards10 mm
— at the side0 mm
— backwards0 mm
— upwards10 mm
— at the side0 mm
Connections/ Terminals
type of electrical connection for main current circuitspring-loaded terminals
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing2,47 kg
global warming potential [CO2 eq] / during operation68,6 kg
global warming potential [CO2 eq] / after end of life-0.129 kg
global warming potential [CO2 eq] / total70,9 kg
Aksesuarlar 7
Siemens 3RV2917-1A motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RV2917-4A | Aksesuar · Infeed systems · busbars | |
| 3RV2917-4B | Aksesuar · Infeed systems · busbars | |
| 3RV2927-7AA00 | Aksesuar · Infeed systems · contactor bases | |
| 3RV2917-7AA00 | Aksesuar · Infeed systems · contactor bases | |
| 3RV2917-5CA00 | Seçmeli zorunlu ürün · Plugs, adapters and terminals · plugs | |
| 3RV2917-5AA00 | Seçmeli zorunlu ürün · Plugs, adapters and terminals · plugs | |
| 3RV2927-5AA00 | Seçmeli zorunlu ürün · Infeed systems · plug-in connectors |
