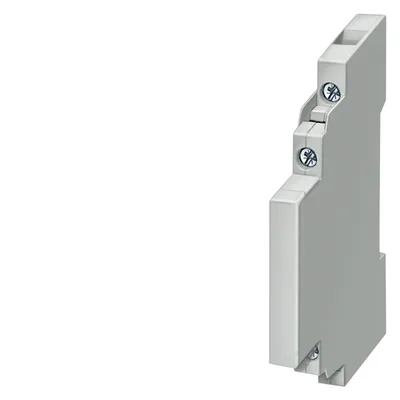

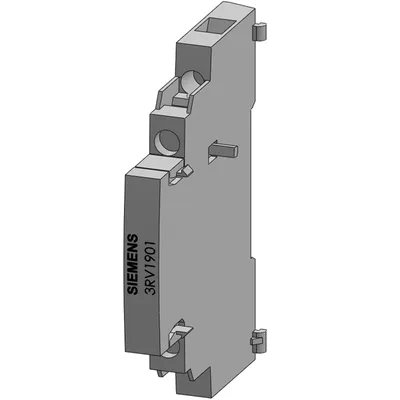

Siemens 3RV1901-1C
Auxiliary switch can be mounted on the side 2 NC, for circuit breaker Size S00...S3 !!! Phased-out product !!! Successor is SIRIUS 3RV2 Preferred successor type is >>3RV2901-1C<<
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productlateral auxiliary switches
product type designation3RV19
certificate of suitabilityCE / UL / CSA / CCC
Ürün Hakkında
Auxiliary switch can be mounted on the side 2 NC, for circuit breaker Size S00...S3 !!! Phased-out product !!! Successor is SIRIUS 3RV2 Preferred successor type is >>3RV2901-1C<<
Siemens 3RV1901-1C
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productlateral auxiliary switches
product type designation3RV19
General technical data
certificate of suitabilityCE / UL / CSA / CCC
size of the circuit-breakerS00, S0, S2, S3
according to IEC 60529IP20
Substance Prohibitance (day/month/year)07/01/2006
Net Weight44,79 g
number of NC contacts for auxiliary contacts instantaneous contact2
number of NO contacts for auxiliary contacts instantaneous contact0
number of CO contacts of auxiliary contacts instantaneous contact0
operational current at AC-15 at 690 V rated value1 A
at 24 V10 A
at 230 V10 A
at 400 V10 A
at 690 V10 A
operational current of auxiliary contacts at AC-12 maximum10 A
at 24 V6 A
at 230 V4 A
at 400 V3 A
at 24 V2 A
at 110 V0,5 A
at 220 V0,25 A
Ambient conditions
during operation-20... +60 °C
during storage-50... +80 °C
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Installation/ mounting/ dimensions
fastening methodplug-in fixing
height90 mm
width9,5 mm
depth70 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (18... 14)
AWG number as coded connectable conductor cross section for auxiliary contacts18... 14
