Siemens 3RT2627-1BB45 için nasıl fiyat teklifi alabilirim?

Siemens 3RT2627-1BB45 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B0392CB2 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RT2627-1BB45 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RT2627-1BB45 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RT2627-1BB45 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

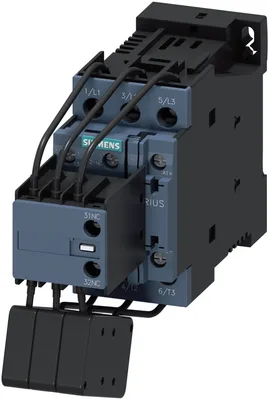

Siemens 3RT2627-1BB45

capacitor contactor, AC-6b 25 kVAr, / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NO + 2 NC, screw terminal, size: S0

SiemensMFR # 3RT2627-1BB45SKU # CEY-8EF3B0392CB2

product brand nameSIRIUS

product designationcapacitor contactors

product type designation3RT26

size of contactorS0

product extension auxiliary switchYok

at AC in hot operating state per pole2,7 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

capacitor contactor, AC-6b 25 kVAr, / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NO + 2 NC, screw terminal, size: S0

Siemens 3RT2627-1BB45

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationcapacitor contactors

product type designation3RT26

General technical data

size of contactorS0

product extension auxiliary switchYok

at AC in hot operating state per pole2,7 W

without load current share typical5,9 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V

at DC10g / 5 ms, 7,5g / 10 ms

at DC15 g / 5 ms, 10 g / 10 ms

of the contactor with added auxiliary switch block typical3.000.000

electrical endurance (operating cycles)200.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2014

Net Weight0,77 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

operational current at AC-6b at 690 V at ambient temperature 60 °C rated value36 A

at 230 V at 50/60 Hz at ambient temperature 60 °C rated value5... 14 kvar

at 400 V at 50/60 Hz at ambient temperature 60 °C rated value8... 25 kvar

at 500 V at 50/60 Hz at ambient temperature 60 °C rated value10... 31 kvar

at 690 V at 50/60 Hz at ambient temperature 60 °C rated value14... 43 kvar

at DC500 1/h

at 230 V maximum100 1/h

at 240 V maximum100 1/h

at 400 V maximum100 1/h

at 480 V maximum100 1/h

at 500 V maximum100 1/h

at 600 V maximum100 1/h

at 690 V maximum72 1/h

Control circuit/ Control

type of voltageDC

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

initial value0,8

full-scale value1,1

closing power of magnet coil at DC5,9 W

holding power of magnet coil at DC5,9 W

at DC50... 170 ms

at DC15... 18 ms

arcing time10 ms

control version of the switch operating mechanismStandard A1 - A2

at DC at 24 V maximum permissible16 mA

Auxiliary circuit

number of NC contacts for auxiliary contacts2

attachable0

instantaneous contact2

number of NO contacts for auxiliary contacts1

attachable0

instantaneous contact1

operational current of auxiliary contacts at AC-12 maximum10 A

at 230 V6 A

at 400 V3 A

at 690 V1 A

at 24 V6 A

at 60 V2 A

at 110 V1 A

at 125 V0,9 A

at 220 V0,3 A

contact reliability of auxiliary contacts0,00000001

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / Q600

UL File Number (CCN)E31519 (NLDX, NLDX7)

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

for short-circuit protection of the main circuit with type of coordination 1 requiredgG: 80 A (690 V, 50 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

height135 mm

width45 mm

depth165 mm

with side-by-side mounting at the side10 mm

for grounded parts at the side10 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

solid2x (1... 2,5 mm²), 2x (2,5... 10 mm²)

stranded2x (1... 2,5 mm²), 2x (2,5... 10 mm²)

solid or stranded2x (1... 2,5 mm²), 2x (2,5... 10 mm²)

finely stranded with core end processing2x (1... 2,5 mm²), 2x (2,5... 6 mm²), 1x 10 mm²

— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), 2x 4 mm²

— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14), 2x 12

at 40 °C1x 10 mm²

at 60 °C2x 10 mm²

AWG number as coded connectable conductor cross section for main contacts16... 8

Safety related data

mirror contact according to IEC 60947-4-1Yok

positively driven operation according to IEC 60947-5-1Yok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing2,47 kg

global warming potential [CO2 eq] / during operation104 kg

global warming potential [CO2 eq] / after end of life-0.226 kg

global warming potential [CO2 eq] / total106 kg

Aksesuarlar 6

Siemens 3RT2627-1BB45 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RT2926-4RB11	Aksesuar · Coil connection modules · coil connection modules
3RT1926-4P	Aksesuar · Miscellaneous accessories · adapters
3RT2926-4RA11	Aksesuar · Coil connection modules · coil connection modules
3RH2924-1GP11	Aksesuar · Coupling links · coupling links
3RT2926-1QT00	Aksesuar · LED modules · LED display indicator modules
3RT2926-4RC11	Aksesuar · Coil connection modules · coil connection modules
