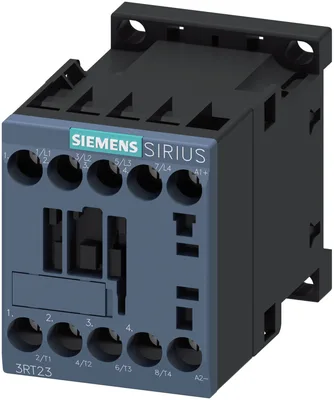

Siemens 3RT2316-1BB40
contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 24 V DC, screw terminal, size: S00
product brand nameSIRIUS
product designationContactor
product type designation3RT23
size of contactorS00
function module for communicationYok
auxiliary switchVar
Ürün Hakkında
contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 24 V DC, screw terminal, size: S00
Siemens 3RT2316-1BB40
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationContactor
product type designation3RT23
General technical data
size of contactorS00
function module for communicationYok
auxiliary switchVar
at AC in hot operating state4,4 W
at AC in hot operating state per pole1,1 W
without load current share typical4 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value690 V
of the auxiliary and control circuit with degree of pollution 3 rated value690 V
of main circuit rated value6 kV
of auxiliary circuit rated value6 kV
at DC6,7 g / 5 ms, 4,2 g / 10 ms
at DC10,5 g / 5 ms, 6,6 g / 10 ms
of contactor typical30.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)10/01/2009
Net Weight278,8 g
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit4
number of NO contacts for main contacts4
type of voltage for main current circuitAC
at AC-1 at 400 V at ambient temperature 40 °C rated value18 A
— up to 690 V at ambient temperature 40 °C rated value18 A
— up to 690 V at ambient temperature 60 °C rated value16 A
— at 400 V rated value9 A
at AC-4 at 400 V rated value8,5 A
minimum cross-section in main circuit at maximum AC-1 rated value2,5 mm²
— at 24 V rated value16 A
— at 60 V rated value16 A
— at 110 V rated value2,1 A
— at 220 V rated value0,8 A
— at 440 V rated value0,6 A
— at 24 V rated value16 A
— at 60 V rated value16 A
— at 110 V rated value12 A
— at 220 V rated value1,6 A
— at 440 V rated value0,8 A
— at 24 V rated value16 A
— at 60 V rated value16 A
— at 110 V rated value16 A
— at 220 V rated value16 A
— at 440 V rated value1,3 A
— at 24 V rated value16 A
— at 60 V rated value0,5 A
— at 110 V rated value0,15 A
— at 24 V rated value16 A
— at 60 V rated value5 A
— at 110 V rated value0,35 A
— at 24 V rated value16 A
— at 60 V rated value16 A
— at 110 V rated value16 A
— at 220 V rated value1,5 A
— at 440 V rated value0,2 A
at AC-3 at 400 V rated value4 kW
at AC-4 at 400 V rated value4 kW
at DC10.000 1/h
at AC-1 maximum1.000 1/h
Control circuit/ Control
type of voltageDC
type of voltage of the control supply voltageDC
control supply voltage at DC rated value24 V
initial value0,8
full-scale value1,1
closing power of magnet coil at DC4 W
holding power of magnet coil at DC4 W
at DC30... 100 ms
at DC7... 13 ms
arcing time10... 15 ms
control version of the switch operating mechanismStandard A1 - A2
Auxiliary circuit
attachable2
attachable2
Short-circuit protection
— with type of coordination 1 requiredgG: 35 A (690 V, 100 kA)
— with type of coordination 2 requiredgG: 20 A (690 V, 100 kA)
Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening method side-by-side mountingVar
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

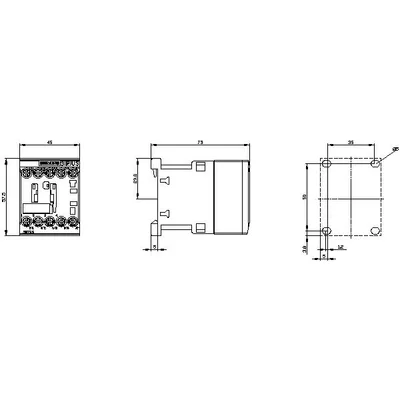

height58 mm
width45 mm
depth73 mm
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
— forwards10 mm
— upwards10 mm
— at the side6 mm
— downwards10 mm
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side6 mm
Connections/ Terminals
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
at contactor for auxiliary contactsScrew-type terminals
of magnet coilscrew terminal
— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), 2x 4 mm²
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for main contacts2x (20... 16), 2x (18... 14), 2x 12
solid0,5... 4 mm²
solid or stranded0,5... 4 mm²
stranded0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid or stranded0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14), 2x 12
AWG number as coded connectable conductor cross section for main contacts20... 12
AWG number as coded connectable conductor cross section for auxiliary contacts20... 12
Safety related data
mirror contact according to IEC 60947-4-1Var; with 3RH29
positively driven operation according to IEC 60947-5-1Yok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Communication/ Protocol
product function bus communicationYok
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing1,55 kg
global warming potential [CO2 eq] / during operation183 kg
global warming potential [CO2 eq] / after end of life-0.249 kg
global warming potential [CO2 eq] / total184 kg
Aksesuarlar 67
Siemens 3RT2316-1BB40 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RH2911-1HA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2916-1BB00 | Aksesuar · Surge suppressor · varistors | |
| 3RH2911-1LA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2916-1DG00 | Aksesuar · Surge suppressor · interference suppression diodes | |
| 3RH2911-1FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2916-1EH00 | Aksesuar · Surge suppressor · diode assemblies | |
| 3RT2916-1CB00 | Aksesuar · Surge suppressor · RC elements | |
| 3RH2911-1HA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA40 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA31 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA31-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2914-1GP11 | Aksesuar · Coupling links · coupling links | |
| 3RA2813-1FW10 | Aksesuar | |
| 3RT1916-4KA1 | Aksesuar · Plugs, adapters and terminals · adapters | |
| 3RH2911-1NF02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NF11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT1916-4BB41 | Aksesuar · Wiring modules, connectors and kits · coil connectors | |
| 3RT2916-4MC00 | Aksesuar · Miscellaneous accessories · Control Kits | |
| 3RT2916-4JA02 | Aksesuar · Miscellaneous accessories · insulation stops | |
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RH2911-1NF20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2813-1AW10 | Aksesuar | |
| 3RT2916-4MA10 | Aksesuar · Sealing covers · sealing covers | |
| 3RA2815-1AW10 | Aksesuar | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2916-1GA00 | Aksesuar · Additional load modules · additional load modules | |
| 3RT2926-1QT00 | Aksesuar · LED modules · LED display indicator modules | |
| 3RA2814-1FW10 | Aksesuar | |
| 3RT1916-4KA2 | Aksesuar · Plugs, adapters and terminals · adapters | |
| 3RH2911-1AA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2814-1AW10 | Aksesuar | |
| 3RH2916-1XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1YA21-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA04-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA04 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2916-1FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2916-1LM00 | Aksesuar · Surge suppressor · interference suppression diodes | |
| 3RT2916-1JJ00 | Aksesuar · Surge suppressor · varistors | |
| 3RH2911-1XA40-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NE22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA30 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA21 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FC30 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2815-1FW10 | Aksesuar | |
| 3RH2911-1AA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1BA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1BA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FB11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FB22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA12 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA13 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1LA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA03 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FC22 | Aksesuar · Auxiliary switch · auxiliary switches |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
İlgili Aramalar
Siemens 3RT2316-1BB40 fiyatSiemens 3RT2316-1BB40 teklif alSiemens 3RT2316-1BB40 satın al3RT2316-1BB40 fiyat3RT2316-1BB40 stok durumuSiemens yedek parçaSiemens 3RT2316-1BB40 muadilSiemens 3RT2316-1BB40 teknik özellikler
