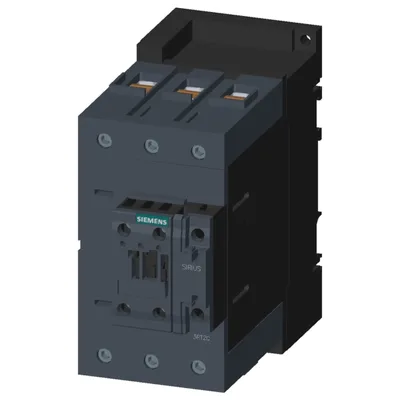

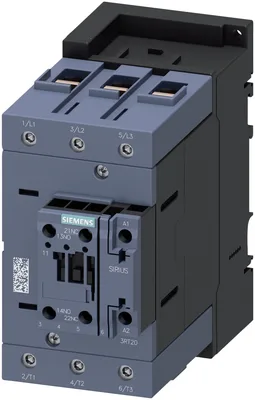

Siemens 3RT2045-1NB30-0CC0

güç kontaktör, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 20-33 V AC/DC, 50/60 Hz, ile dahili varistor, yardımcı contacts: 1 NO + 1 NC, vidalı klemens, boyut: S3, communication-capable

SiemensMFR # 3RT2045-1NB30-0CC0SKU # YLSYA1W95Z1REZ1

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

size of contactorS3

function module for communicationVar

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

güç kontaktör, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 20-33 V AC/DC, 50/60 Hz, ile dahili varistor, yardımcı contacts: 1 NO + 1 NC, vidalı klemens, boyut: S3, communication-capable

Siemens 3RT2045-1NB30-0CC0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

General technical data

size of contactorS3

function module for communicationVar

auxiliary switchVar

at AC in hot operating state15,9 W

at AC in hot operating state per pole5,3 W

without load current share typical1,8 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V

at AC10,3 g / 5 ms, 6,7 g / 10 ms

at DC6,7 g / 5 ms, 4 g / 10 ms

at AC16,3 g / 5 ms, 10,5 g / 10 ms

at DC10,6 g / 5 ms, 6,3 g / 10 ms

of contactor typical10.000.000

of the contactor with added electronically optimized auxiliary switch block typical5.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight1,775 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

at AC-1 at 400 V at ambient temperature 40 °C rated value125 A

— up to 690 V at ambient temperature 40 °C rated value125 A

— up to 690 V at ambient temperature 60 °C rated value105 A

— at 400 V rated value80 A

— at 500 V rated value80 A

— at 690 V rated value58 A

— at 400 V rated value80 A

— at 500 V rated value80 A

— at 690 V rated value58 A

at AC-4 at 400 V rated value66 A

at AC-5a up to 690 V rated value110 A

at AC-5b up to 400 V rated value80 A

— up to 230 V for current peak value n=20 rated value80 A

— up to 400 V for current peak value n=20 rated value80 A

— up to 500 V for current peak value n=20 rated value80 A

— up to 690 V for current peak value n=20 rated value58 A

— up to 230 V for current peak value n=30 rated value54 A

— up to 400 V for current peak value n=30 rated value54 A

— up to 500 V for current peak value n=30 rated value54 A

— up to 690 V for current peak value n=30 rated value54 A

minimum cross-section in main circuit at maximum AC-1 rated value50 mm²

at 400 V rated value34 A

at 690 V rated value24 A

— at 24 V rated value100 A

— at 60 V rated value60 A

— at 110 V rated value9 A

— at 220 V rated value2 A

— at 440 V rated value0,6 A

— at 600 V rated value0,4 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value10 A

— at 440 V rated value1,8 A

— at 600 V rated value1 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value80 A

— at 440 V rated value4,5 A

— at 600 V rated value2,6 A

— at 24 V rated value40 A

— at 60 V rated value6 A

— at 110 V rated value2,5 A

— at 220 V rated value1 A

— at 440 V rated value0,15 A

— at 600 V rated value0,06 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value7 A

— at 440 V rated value0,42 A

— at 600 V rated value0,16 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value35 A

— at 440 V rated value0,8 A

— at 600 V rated value0,35 A

at AC-2 at 400 V rated value37 kW

— at 230 V rated value22 kW

— at 400 V rated value37 kW

— at 500 V rated value45 kW

— at 690 V rated value55 kW

— at 230 V rated value22 kW

— at 400 V rated value37 kW

— at 500 V rated value45 kW

— at 690 V rated value55 kW

at 400 V rated value17,9 kW

at 690 V rated value21,8 kW

up to 230 V for current peak value n=20 rated value31 kVA

up to 400 V for current peak value n=20 rated value55 kVA

up to 500 V for current peak value n=20 rated value69 kVA

up to 690 V for current peak value n=20 rated value69 kVA

up to 230 V for current peak value n=30 rated value21,5 kVA

up to 400 V for current peak value n=30 rated value37,4 kVA

up to 500 V for current peak value n=30 rated value46,7 kVA

up to 690 V for current peak value n=30 rated value64,5 kVA

limited to 1 s switching at zero current maximum1.500 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum1.186 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum851 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum538 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum423 A; Use minimum cross-section acc. to AC-1 rated value

at AC1.000 1/h

at DC1.000 1/h

at AC-1 maximum900 1/h

at AC-2 maximum400 1/h

at AC-3 maximum1.000 1/h

— maximum1.000 1/h

at AC-4 maximum300 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value20... 33 V

at 60 Hz rated value20... 33 V

control supply voltage at DC rated value20... 33 V

initial value0,8

full-scale value1,1

at 50 Hz0,8... 1,1

at 60 Hz0,8... 1,1

design of the surge suppressorwith varistor

inrush current peak6,5 A

duration of inrush current peak50 µs

pickup current mean value3,2 A

pickup current peak6,5 A

duration of pickup current150 ms

holding current mean value75 mA

at 50 Hz151 V·A

at 60 Hz151 V·A

at minimum rated control supply voltage at DC1,8 V·A

at maximum rated control supply voltage at DC1,8 V·A

— at 50 Hz3,1 V·A

— at 60 Hz3,1 V·A

— at 50 Hz3,1 V·A

— at 60 Hz3,1 V·A

at 50 Hz3,1 V·A

at 60 Hz3,1 V·A

at 50 Hz0,95

at 60 Hz0,95

closing power of magnet coil at DC76 W

holding power of magnet coil at DC1,8 W

at AC50... 70 ms

at DC50... 70 ms

at AC38... 57 ms

at DC38... 57 ms

arcing time10... 20 ms

control version of the switch operating mechanismStandard A1 - A2, optionally via function module

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact1

number of NO contacts for auxiliary contacts instantaneous contact1

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0,15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

at 480 V rated value77 A

at 600 V rated value62 A

— at 110/120 V rated value7,5 hp

— at 230 V rated value15 hp

— at 200/208 V rated value25 hp

— at 220/230 V rated value30 hp

— at 460/480 V rated value60 hp

— at 575/600 V rated value60 hp

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA)

— with type of coordination 2 requiredgG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

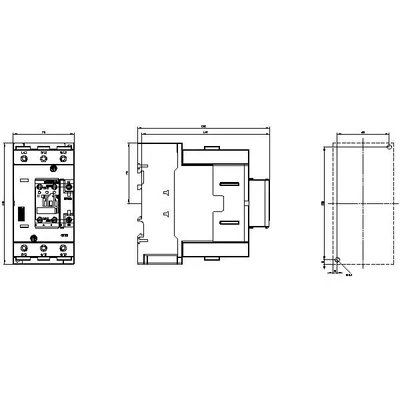

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening method side-by-side mountingVar

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height140 mm

width70 mm

depth152 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— finely stranded with core end processing2x (2,5... 35 mm²), 1x (2,5... 50 mm²)

for AWG cables for main contacts2x (10... 1/0), 1x (10... 2/0)

solid2,5... 16 mm²

stranded6... 70 mm²

finely stranded with core end processing2,5... 50 mm²

solid or stranded0,5... 2,5 mm²

finely stranded with core end processing0,5... 2,5 mm²

— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14)

AWG number extended as coded connectable conductor cross section for main contacts10... 2/0

AWG number as coded connectable conductor cross section for auxiliary contacts20... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

suitable for safety functionVar

suitability for use safety-related switching OFFVar

service life maximum20 a

test wear-related service life necessaryVar

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201.000.000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryVar

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing9,35 kg

global warming potential [CO2 eq] / during operation259 kg

global warming potential [CO2 eq] / after end of life-1.55 kg

global warming potential [CO2 eq] / total267 kg

İlgili Ürünler

MFR #MY1M20-200AH

SKU #YLSIZ8K8N4KBPBQ

İlgili Aramalar

Siemens 3RT2045-1NB30-0CC0 fiyatSiemens 3RT2045-1NB30-0CC0 teklif alSiemens 3RT2045-1NB30-0CC0 satın al3RT2045-1NB30-0CC0 fiyat3RT2045-1NB30-0CC0 stok durumuSiemens yedek parçaSiemens 3RT2045-1NB30-0CC0 muadilSiemens 3RT2045-1NB30-0CC0 teknik özellikler

Çerez Kullanımı

Siemens 3RT2045-1NB30-0CC0

Ürün Hakkında

Siemens 3RT2045-1NB30-0CC0

Teknik Özellikler

İlgili Ürünler

3MV8100-0MB00

3MV8100-0MC00

3MV8100-0MD00

3MV8100-0ME00

3MV8100-0MF00

3MV8100-0MG00

3MV8100-0MH00

3MV8100-0MJ00

3MV8100-0MK00

3MV8100-0ML00

Öne Çıkan Ürünler

MXQ25L-40B-M9NZ

SY5420-5DZ-01

BM3615T W/ 2-1/4" LONG SHAFT

MXQ25-40B-M9NZ

AW20-N02CG-6CZ-B

VM8001-5

VQZ2121-5LO1-N3T

NCMC150-0600-X103US

NCDMC150-0600-X155US

MY1M20-200AH

İlgili Aramalar
