Siemens 3RT2045-1CL24-3MA0 için nasıl fiyat teklifi alabilirim?

Siemens 3RT2045-1CL24-3MA0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02C4316 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RT2045-1CL24-3MA0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RT2045-1CL24-3MA0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RT2045-1CL24-3MA0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

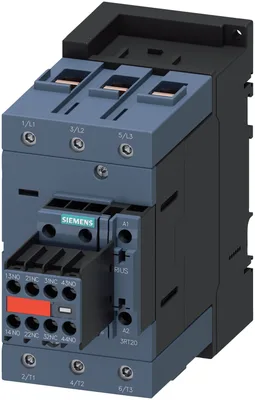

Siemens 3RT2045-1CL24-3MA0

güç kontaktör, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, ile plugged-in varistor, yardımcı contacts: 2 NO + 2 NC, vidalı klemens, boyut: S3, captive yardımcı anahtar

SiemensMFR # 3RT2045-1CL24-3MA0SKU # CEY-8EF3B02C4316

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

size of contactorS3

function module for communicationYok

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

güç kontaktör, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, ile plugged-in varistor, yardımcı contacts: 2 NO + 2 NC, vidalı klemens, boyut: S3, captive yardımcı anahtar

Siemens 3RT2045-1CL24-3MA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

General technical data

size of contactorS3

function module for communicationYok

auxiliary switchVar

at AC in hot operating state15,9 W

at AC in hot operating state per pole5,3 W

without load current share typical19 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value1.000 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V

at AC10,3 g / 5 ms, 6,7 g / 10 ms

at AC16,3 g / 5 ms, 10,5 g / 10 ms

of contactor typical10.000.000

of the contactor with added electronically optimized auxiliary switch block typical5.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance name2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-Yok. 3147-75-9

Net Weight1,706 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum1.000 V

at AC-3e rated value maximum1.000 V

at AC-1 at 400 V at ambient temperature 40 °C rated value125 A

— up to 690 V at ambient temperature 40 °C rated value125 A

— up to 690 V at ambient temperature 60 °C rated value105 A

— at 400 V rated value80 A

— at 500 V rated value80 A

— at 690 V rated value58 A

— at 1000 V rated value30 A

— at 400 V rated value80 A

— at 500 V rated value80 A

— at 690 V rated value58 A

— at 1000 V rated value30 A

at AC-4 at 400 V rated value66 A

at AC-5a up to 690 V rated value110 A

at AC-5b up to 400 V rated value80 A

— up to 230 V for current peak value n=20 rated value80 A

— up to 400 V for current peak value n=20 rated value80 A

— up to 500 V for current peak value n=20 rated value80 A

— up to 690 V for current peak value n=20 rated value58 A

— up to 230 V for current peak value n=30 rated value54 A

— up to 400 V for current peak value n=30 rated value54 A

— up to 500 V for current peak value n=30 rated value54 A

— up to 690 V for current peak value n=30 rated value54 A

minimum cross-section in main circuit at maximum AC-1 rated value50 mm²

at 400 V rated value34 A

at 690 V rated value24 A

— at 24 V rated value100 A

— at 60 V rated value60 A

— at 110 V rated value9 A

— at 220 V rated value2 A

— at 440 V rated value0,6 A

— at 600 V rated value0,4 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value10 A

— at 440 V rated value1,8 A

— at 600 V rated value1 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value80 A

— at 440 V rated value4,5 A

— at 600 V rated value2,6 A

— at 24 V rated value40 A

— at 60 V rated value6 A

— at 110 V rated value2,5 A

— at 220 V rated value1 A

— at 440 V rated value0,15 A

— at 600 V rated value0,06 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value7 A

— at 440 V rated value0,42 A

— at 600 V rated value0,16 A

— at 24 V rated value100 A

— at 60 V rated value100 A

— at 110 V rated value100 A

— at 220 V rated value35 A

— at 440 V rated value0,8 A

— at 600 V rated value0,35 A

at AC-2 at 400 V rated value37 kW

— at 230 V rated value22 kW

— at 400 V rated value37 kW

— at 500 V rated value45 kW

— at 690 V rated value55 kW

— at 1000 V rated value37 kW

— at 230 V rated value22 kW

— at 400 V rated value37 kW

— at 500 V rated value45 kW

— at 690 V rated value55 kW

— at 1000 V rated value37 kW

at 400 V rated value17,9 kW

at 690 V rated value21,8 kW

up to 230 V for current peak value n=20 rated value31 kVA

up to 400 V for current peak value n=20 rated value55 kVA

up to 500 V for current peak value n=20 rated value69 kVA

up to 690 V for current peak value n=20 rated value69 kVA

up to 230 V for current peak value n=30 rated value21,5 kVA

up to 400 V for current peak value n=30 rated value37,4 kVA

up to 500 V for current peak value n=30 rated value46,7 kVA

up to 690 V for current peak value n=30 rated value64,5 kVA

limited to 1 s switching at zero current maximum1.500 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum1.186 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum851 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum538 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum423 A; Use minimum cross-section acc. to AC-1 rated value

at AC5.000 1/h

at AC-1 maximum900 1/h

at AC-2 maximum400 1/h

at AC-3 maximum1.000 1/h

— maximum1.000 1/h

at AC-4 maximum300 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz rated value230 V

at 60 Hz rated value230 V

at 50 Hz0,8... 1,1

at 60 Hz0,85... 1,1

design of the surge suppressorwith varistor

at 50 Hz296 V·A

at 50 Hz0,61

at 50 Hz19 V·A

at 50 Hz0,38

at AC13... 50 ms

at AC10... 21 ms

arcing time10... 20 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

design of the auxiliary switchon the front, non-detachable

number of NC contacts for auxiliary contacts instantaneous contact2

number of NO contacts for auxiliary contacts instantaneous contact2

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0,15 A

at 24 V rated value6 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

at 480 V rated value77 A

at 600 V rated value62 A

— at 110/120 V rated value7,5 hp

— at 230 V rated value15 hp

— at 200/208 V rated value25 hp

— at 220/230 V rated value30 hp

— at 460/480 V rated value60 hp

— at 575/600 V rated value60 hp

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA)

— with type of coordination 2 requiredgG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening method side-by-side mountingVar

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height140 mm

width70 mm

depth195 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— finely stranded with core end processing2x (2,5... 35 mm²), 1x (2,5... 50 mm²)

for AWG cables for main contacts2x (10... 1/0), 1x (10... 2/0)

solid2,5... 16 mm²

stranded6... 70 mm²

finely stranded with core end processing2,5... 50 mm²

solid or stranded0,5... 2,5 mm²

finely stranded with core end processing0,5... 2,5 mm²

— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14)

AWG number extended as coded connectable conductor cross section for main contacts10... 2/0

AWG number as coded connectable conductor cross section for auxiliary contacts20... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

suitable for safety functionVar

suitability for use safety-related switching OFFVar

service life maximum20 a

test wear-related service life necessaryVar

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201.000.000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryVar

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Aksesuarlar 34

Siemens 3RT2045-1CL24-3MA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA1943-3D	Aksesuar · Wiring modules, connectors and kits · link modules
3RT2946-4EA2	Aksesuar · Terminal covers · terminal covers
3RA1943-3E	Aksesuar · Wiring modules, connectors and kits · link modules
3RA2942-2F	Aksesuar · Base plates · base plates
3RT2926-4RA11	Aksesuar · Coil connection modules · coil connection modules
3RH2914-1GP11	Aksesuar · Coupling links · coupling links
3RA1953-3G	Aksesuar · Wiring modules, connectors and kits · link rails
3RT2926-4RB11	Aksesuar · Coil connection modules · coil connection modules
3RT2926-1QT00	Aksesuar · LED modules · LED display indicator modules
3RT2946-4G	Aksesuar · Terminal covers · box terminal blocks
3RT2936-4MC00	Aksesuar · Miscellaneous accessories · Control Kits
3RT1946-4BB31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RA2934-2B	Aksesuar · Mechanical interlocks · mechanical interlocks
3RA1954-2G	Aksesuar · Mechanical interlocks · mechanical connectors
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RA2816-0EW20	Aksesuar
3RT2916-4MA10	Aksesuar · Sealing covers · sealing covers
3RA2932-2D	Aksesuar · Mechanical interlocks · mechanical connectors
3RA2943-2AA1	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RA2943-2BB1	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2943-2C	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2943-3L	Aksesuar · Plugs, adapters and terminals · infeed terminals
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RT1946-4EA1	Aksesuar · Terminal covers · terminal covers
3RT2916-2BE01	Aksesuar · OFF-delay device · OFF-delay device
3RT2926-4RC11	Aksesuar · Coil connection modules · coil connection modules
3RA2831-1DH10	Aksesuar
3RA2831-1DG10	Aksesuar
3RT1946-4BA31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RA2832-1DH10	Aksesuar
3RA2832-1DG10	Aksesuar
3RT2946-4F	Aksesuar · Terminal covers · auxiliary conductor terminals
3RT2945-6A	Yedek parça · Contact pieces and vacuum interrupters · contacts

İlgili Ürünler

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

İlgili Aramalar

Siemens 3RT2045-1CL24-3MA0 fiyatSiemens 3RT2045-1CL24-3MA0 teklif alSiemens 3RT2045-1CL24-3MA0 satın al3RT2045-1CL24-3MA0 fiyat3RT2045-1CL24-3MA0 stok durumuSiemens yedek parçaSiemens 3RT2045-1CL24-3MA0 muadilSiemens 3RT2045-1CL24-3MA0 teknik özellikler

Çerez Kullanımı

Siemens 3RT2045-1CL24-3MA0

Ürün Hakkında

Siemens 3RT2045-1CL24-3MA0

Teknik Özellikler

Aksesuarlar 34

İlgili Ürünler

3MV8100-0MB00

3MV8100-0MC00

3MV8100-0MD00

3MV8100-0ME00

3MV8100-0MF00

3MV8100-0MG00

3MV8100-0MH00

3MV8100-0MJ00

3MV8100-0MK00

3MV8100-0ML00

Öne Çıkan Ürünler

AW20-N02CG-6CZ-B

VM8001-5

MTS32-150M

AL30-03-8-A

MXQ25L-40B-M9NZ

EH22512

VQZ2121-5LO1-N3T

VQC2101R-51

MDBB63-100Z

AR30-N02E-1Z-B

İlgili Aramalar
