Siemens 3RT2017-2LF42

power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole, 110 V DC, 0.7-1.25* Uc, with integrated varistor, auxiliary contacts: 1 NC, spring-loaded terminal, frame size: S00

SiemensMFR # 3RT2017-2LF42SKU # CEY-8EF3B03937DA

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

size of contactorS00

function module for communicationYok

auxiliary switchYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole, 110 V DC, 0.7-1.25* Uc, with integrated varistor, auxiliary contacts: 1 NC, spring-loaded terminal, frame size: S00

Siemens 3RT2017-2LF42

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

General technical data

size of contactorS00

function module for communicationYok

auxiliary switchYok

at AC in hot operating state1,5 W

at AC in hot operating state per pole0,5 W

without load current share typical2,8 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V

at DC7,3 g / 5 ms, 4,7 g / 10 ms

at DC11,4 g / 5 ms, 7,3g / 10 ms

of contactor typical30.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0,304 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

at AC-1 at 400 V at ambient temperature 40 °C rated value22 A

— up to 690 V at ambient temperature 40 °C rated value22 A

— up to 690 V at ambient temperature 60 °C rated value20 A

— at 400 V rated value12 A

— at 500 V rated value9,2 A

— at 690 V rated value6,7 A

— at 400 V rated value12 A

— at 500 V rated value9,2 A

— at 690 V rated value6,7 A

at AC-4 at 400 V rated value8,5 A

at AC-5a up to 690 V rated value19,4 A

at AC-5b up to 400 V rated value9,9 A

— up to 230 V for current peak value n=20 rated value7,2 A

— up to 400 V for current peak value n=20 rated value7,2 A

— up to 500 V for current peak value n=20 rated value7,2 A

— up to 690 V for current peak value n=20 rated value6,7 A

— up to 230 V for current peak value n=30 rated value4,8 A

— up to 400 V for current peak value n=30 rated value4,8 A

— up to 500 V for current peak value n=30 rated value4,8 A

— up to 690 V for current peak value n=30 rated value4,8 A

minimum cross-section in main circuit at maximum AC-1 rated value4 mm²

at 400 V rated value4,1 A

at 690 V rated value3,3 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value2,1 A

— at 220 V rated value0,8 A

— at 440 V rated value0,6 A

— at 600 V rated value0,6 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value12 A

— at 220 V rated value1,6 A

— at 440 V rated value0,8 A

— at 600 V rated value0,7 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value20 A

— at 220 V rated value20 A

— at 440 V rated value1,3 A

— at 600 V rated value1 A

— at 24 V rated value20 A

— at 60 V rated value0,5 A

— at 110 V rated value0,15 A

— at 24 V rated value20 A

— at 60 V rated value5 A

— at 110 V rated value0,35 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value20 A

— at 220 V rated value1,5 A

— at 440 V rated value0,2 A

— at 600 V rated value0,2 A

at AC-2 at 400 V rated value5,5 kW

— at 230 V rated value3 kW

— at 400 V rated value5,5 kW

— at 500 V rated value5,5 kW

— at 690 V rated value5,5 kW

— at 230 V rated value3 kW

— at 400 V rated value5,5 kW

— at 500 V rated value5,5 kW

— at 690 V rated value5,5 kW

at 400 V rated value2 kW

at 690 V rated value2,5 kW

up to 230 V for current peak value n=20 rated value2,8 kVA

up to 400 V for current peak value n=20 rated value4,9 kVA

up to 500 V for current peak value n=20 rated value6,2 kVA

up to 690 V for current peak value n=20 rated value8 kVA

up to 230 V for current peak value n=30 rated value1,9 kVA

up to 400 V for current peak value n=30 rated value3,3 kVA

up to 500 V for current peak value n=30 rated value4,1 kVA

up to 690 V for current peak value n=30 rated value5,7 kVA

limited to 1 s switching at zero current maximum200 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum123 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum96 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum74 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum61 A; Use minimum cross-section acc. to AC-1 rated value

at DC10.000 1/h

at AC-1 maximum1.000 1/h

at AC-2 maximum750 1/h

at AC-3 maximum750 1/h

— maximum750 1/h

at AC-4 maximum250 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value110 V

initial value0,7

full-scale value1,25

design of the surge suppressorwith varistor

closing power of magnet coil at DC2,8 W

holding power of magnet coil at DC2,8 W

at DC25... 130 ms

at DC7... 20 ms

arcing time10... 15 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact1

number of NO contacts for auxiliary contacts instantaneous contact0

operational current at AC-12 maximum10 A

at 230 V rated value10 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0,15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

at 480 V rated value11 A

at 600 V rated value11 A

— at 110/120 V rated value0,5 hp

— at 230 V rated value2 hp

— at 200/208 V rated value3 hp

— at 220/230 V rated value3 hp

— at 460/480 V rated value8 hp

— at 575/600 V rated value10 hp

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 50 A (690 V,100 kA), aM: 20 A (690 V,100 kA), BS88: 35 A (415 V,80 kA)

— with type of coordination 2 requiredgG: 20 A (690 V, 100 kA), aM: 16 A (690 V, 100 kA), BS88: 20 A (415 V, 80 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening method side-by-side mountingVar

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height70 mm

width45 mm

depth73 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

at contactor for auxiliary contactsSpring-type terminals

of magnet coilSpring-loaded terminal

— solid2x (0,5... 4 mm²)

— solid or stranded2x (0,5... 4 mm²)

— finely stranded with core end processing2x (0,5... 2,5 mm²)

— finely stranded without core end processing2x (0,5... 2,5 mm²)

for AWG cables for main contacts2x (20... 12)

solid0,5... 4 mm²

stranded0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

finely stranded without core end processing0,5... 2,5 mm²

solid or stranded0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

finely stranded without core end processing0,5... 2,5 mm²

— solid or stranded2x (0,5... 4 mm²)

— finely stranded with core end processing2x (0,5... 2,5 mm²)

— finely stranded without core end processing2x (0,5... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 12)

AWG number as coded connectable conductor cross section for main contacts20... 12

AWG number as coded connectable conductor cross section for auxiliary contacts20... 12

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

suitable for safety functionVar

suitability for use safety-related switching OFFVar

service life maximum20 a

test wear-related service life necessaryVar

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201.000.000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryVar

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1,42 kg

global warming potential [CO2 eq] / during operation152 kg

global warming potential [CO2 eq] / after end of life-0.305 kg

global warming potential [CO2 eq] / total153 kg

Aksesuarlar 40

Siemens 3RT2017-2LF42 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RT2916-1DG00	Aksesuar · Surge suppressor · interference suppression diodes
3RT2916-1EH00	Aksesuar · Surge suppressor · diode assemblies
3RA2912-2H	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RT1916-4KA1	Aksesuar · Plugs, adapters and terminals · adapters
3RA2913-2AA2	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RT2916-4MC00	Aksesuar · Miscellaneous accessories · Control Kits
3RT2916-4JA02	Aksesuar · Miscellaneous accessories · insulation stops
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RH2914-2GP11	Aksesuar · Coupling links · coupling links
3RT2916-4MA10	Aksesuar · Sealing covers · sealing covers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RT2916-1GA00	Aksesuar · Additional load modules · additional load modules
3RA2816-0EW20	Aksesuar
3RT1916-4KA2	Aksesuar · Plugs, adapters and terminals · adapters
3RA2913-2BB2	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RT2916-1PA1	Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-1LN00	Aksesuar · Surge suppressor · interference suppression diodes
3RA2916-1A	Aksesuar · Wiring modules, connectors and kits · link modules
3RR2241-2FW30	Aksesuar
3RR2441-2AA40	Aksesuar
3RR2241-2FA30	Aksesuar
3RR2141-2AW30	Aksesuar
3RR2141-2AA30	Aksesuar
3RT1916-4BB31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RT2916-1PA2	Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-2BL01	Aksesuar · OFF-delay device · OFF-delay device
3RT2916-2BK01	Aksesuar · OFF-delay device · OFF-delay device
3RT2916-2BE01	Aksesuar · OFF-delay device · OFF-delay device
3RT2916-1PB3	Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-1PB2	Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-1PB1	Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-1PA3	Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-1CC00	Aksesuar · Surge suppressor · RC elements
3RA2913-3EA2	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2913-3DA2	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RA2812-2DW10	Aksesuar
3RA2811-2CW10	Aksesuar
3RT2916-4BA32	Aksesuar · Terminals · circuit connections

İlgili Ürünler

Detayları Gör

Siemens

1EE1122-..A00-...4

MFR #1EE1122-..A00-...4

SKU #YLS3FGFZLYE3EV8

Detayları Gör

Siemens

1EE1124-..A00-...4

MFR #1EE1124-..A00-...4

SKU #YLSKZIN1GEIPRVP

Detayları Gör

Siemens

1EE1142-..A00-...4

MFR #1EE1142-..A00-...4

SKU #YLSUX3MNEZEJGPU

Detayları Gör

Siemens

1EE1144-..A00-...4

MFR #1EE1144-..A00-...4

MFR #1EE1324-..A00-...4

MFR #VFSWDM3546T-5E

SKU #YLSRYYEFOOW6J5E

İlgili Aramalar

Siemens 3RT2017-2LF42 fiyatSiemens 3RT2017-2LF42 teklif alSiemens 3RT2017-2LF42 satın al3RT2017-2LF42 fiyat3RT2017-2LF42 stok durumuSiemens yedek parçaSiemens 3RT2017-2LF42 muadilSiemens 3RT2017-2LF42 teknik özellikler

Çerez Kullanımı

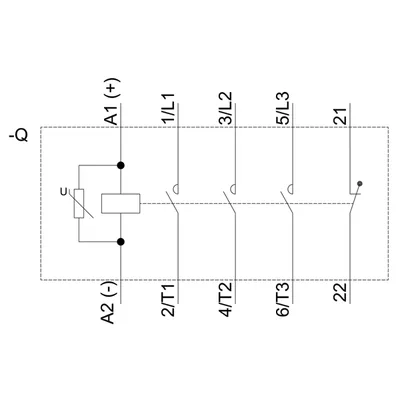

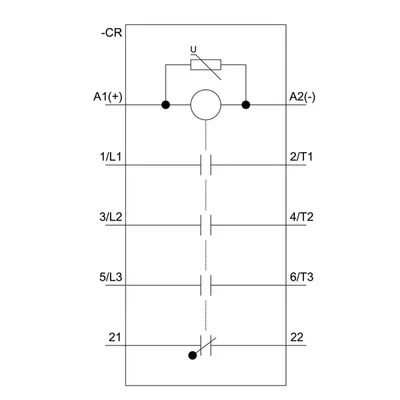

Siemens 3RT2017-2LF42

Ürün Hakkında

Siemens 3RT2017-2LF42

Teknik Özellikler

Aksesuarlar 40

İlgili Ürünler

1EE1122-..A00-...4

1EE1124-..A00-...4

1EE1142-..A00-...4

1EE1144-..A00-...4

1EE1322-....0-...4

1EE1322-...00-1..2

1EE1322-..A00-...4

1EE1324-....0-...4

1EE1324-...00-1..2

1EE1324-..A00-...4

Öne Çıkan Ürünler

BM3615T W/ 2-1/4" LONG SHAFT

MY1M20-200AH

AC20A-01G-V-1-B FR/L COMBO MODULAR

AW20-N02CG-6CZ-B

CG5EN50SV-150

MTS32-150M

VQC2101R-51

MXS-AS16L

BC8M12

VFSWDM3546T-5E

İlgili Aramalar
