Siemens 3RT1476-6LA06 için nasıl fiyat teklifi alabilirim?

Siemens 3RT1476-6LA06 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B039392F ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RT1476-6LA06 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RT1476-6LA06 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RT1476-6LA06 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

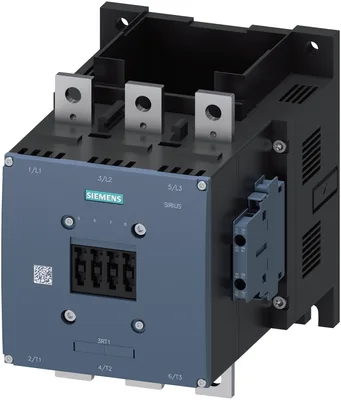

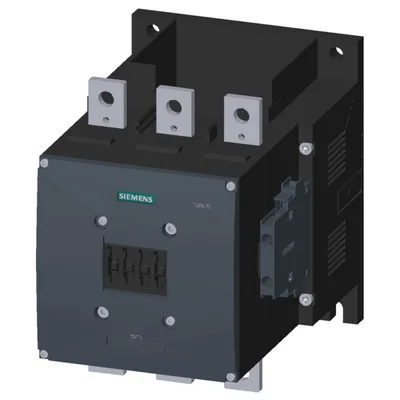

Siemens 3RT1476-6LA06

power contactor AC-1 690 A / 690 V / 40 °C 3-pole, drive: without auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

SiemensMFR # 3RT1476-6LA06SKU # CEY-8EF3B039392F

product brand nameSIRIUS

product designationContactor

product type designation3RT14

size of contactorS12

function module for communicationYok

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

power contactor AC-1 690 A / 690 V / 40 °C 3-pole, drive: without auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

Siemens 3RT1476-6LA06

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationContactor

product type designation3RT14

General technical data

size of contactorS12

function module for communicationYok

auxiliary switchVar

at AC in hot operating state185,7 W

at AC in hot operating state per pole61,9 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value1.000 V

of auxiliary circuit with degree of pollution 3 rated value500 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

at AC8,5 g / 5 ms, 4,2 g / 10 ms

at DC8,5 g / 5 ms, 4,2 g / 10 ms

at AC13,4 g / 5 ms, 6,5 g / 10 ms

at DC13,4 g / 5 ms, 6,5 g / 10 ms

of contactor typical10.000.000

of the contactor with added electronically optimized auxiliary switch block typical5.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1

Net Weight9,27 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

type of voltage for main current circuitAC

— up to 690 V at ambient temperature 40 °C rated value690 A

— up to 690 V at ambient temperature 55 °C rated value650 A

— up to 690 V at ambient temperature 60 °C rated value650 A

— at 400 V rated value170 A

— at 690 V rated value170 A

minimum cross-section in main circuit at maximum AC-1 rated value480 mm²

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value33 A

— at 220 V rated value3,8 A

— at 440 V rated value0,9 A

— at 600 V rated value0,6 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value4 A

— at 600 V rated value2 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value11 A

— at 600 V rated value5,2 A

— at 24 V rated value500 A

— at 60 V rated value11 A

— at 110 V rated value3 A

— at 220 V rated value0,6 A

— at 440 V rated value0,18 A

— at 600 V rated value0,125 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value2,5 A

— at 440 V rated value0,65 A

— at 600 V rated value0,37 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value1,4 A

— at 600 V rated value0,75 A

at AC2.000 1/h

at DC2.000 1/h

at AC-1 maximum600 1/h

Control circuit/ Control

at AC45... 100 ms

at DC45... 100 ms

at AC60... 100 ms

at DC60... 100 ms

arcing time10... 15 ms

control version of the switch operating mechanismWithout operating mechanism

Auxiliary circuit

number of NC contacts for auxiliary contacts2

attachable4

instantaneous contact2

number of NO contacts for auxiliary contacts2

attachable4

instantaneous contact2

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 800 A (690 V, 50 kA)

— with type of coordination 2 requiredgR: 710 A (690 V, 100 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting positionwith dikey mounting surface +/-90° rotatable, with dikey mounting surface +/- 22,5° tiltable to the front ve back

fastening method side-by-side mountingVar

fastening methodscrew fixing

height214 mm

width160 mm

depth225 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitConnection bar

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

width of connection bar25 mm

thickness of connection bar6 mm

diameter of holes11 mm

number of holes1

for AWG cables for main contacts2/0... 500 kcmil

solid or stranded70... 240 mm²

stranded70... 240 mm²

solid or stranded0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)

— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14), 1x 12

AWG number as coded connectable conductor cross section for auxiliary contacts18... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

service life maximum20 a

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with box terminal/cover

Aksesuarlar 30

Siemens 3RT1476-6LA06 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA1954-2A	Aksesuar · Mechanical interlocks · mechanical interlocks
3RH1921-1XA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3TX6546-3B	Aksesuar · Terminal covers · terminal covers
3RT1966-4EA3	Aksesuar · Terminal covers · terminal covers
3RT1966-4EA2	Aksesuar · Terminal covers · terminal covers
3RT1966-4G	Aksesuar · Terminal covers · box terminal blocks
3RT1966-4BA31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RT1926-4MA10	Aksesuar · Sealing covers · sealing covers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RH1921-1KA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1KA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1KA02	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1JA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1EA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1EA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1EA02	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1DA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CD10	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CD01	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CA10	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CA01	Aksesuar · Auxiliary switch · auxiliary switches
3RT1966-4EA1	Aksesuar · Terminal covers · terminal covers
3RA1973-3E	Aksesuar · Wiring modules, connectors and kits · link rails
3RA1973-2B	Aksesuar · Wiring modules, connectors and kits · link rails
3RA1973-2A	Aksesuar · Wiring modules, connectors and kits · link rails
3RA1972-2A	Aksesuar · Base plates · base plates
3RT1976-6D	Yedek parça · Contact pieces and vacuum interrupters · contacts
3RT1976-7B	Yedek parça · Arc chutes · arc chutes
