Siemens 3RT1456-6NB36 için nasıl fiyat teklifi alabilirim?

Siemens 3RT1456-6NB36 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02F237B ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RT1456-6NB36 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RT1456-6NB36 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RT1456-6NB36 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

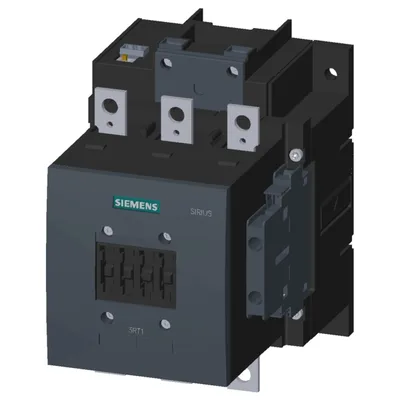

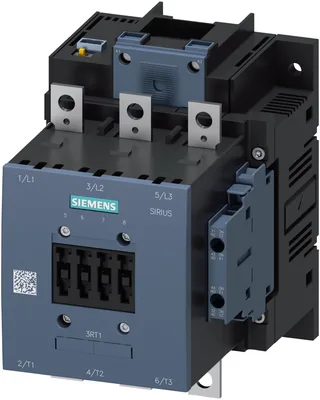

Siemens 3RT1456-6NB36

power contactor AC-1 275 A / 690 V / 40 °C 3-pole, Uc: 21-27.3 V AC(50-60 Hz) / DC PLC input 24 V DC drive: electronic auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

SiemensMFR # 3RT1456-6NB36SKU # CEY-8EF3B02F237B

product brand nameSIRIUS

product designationContactor

product type designation3RT14

size of contactorS6

function module for communicationYok

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RT1456-6NB36

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationContactor

product type designation3RT14

General technical data

size of contactorS6

function module for communicationYok

auxiliary switchVar

at AC in hot operating state86,4 W

at AC in hot operating state per pole28,8 W

without load current share typical2,8 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value1.000 V

of auxiliary circuit with degree of pollution 3 rated value500 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

at AC8,5 g / 5 ms, 4,2 g / 10 ms

at DC8,5 g / 5 ms, 4,2 g / 10 ms

at AC13,4 g / 5 ms, 6,5 g / 10 ms

at DC13,4 g / 5 ms, 6,5 g / 10 ms

of contactor typical10.000.000

of the contactor with added electronically optimized auxiliary switch block typical5.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1

Net Weight3,287 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +55 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

type of voltage for main current circuitAC

— up to 690 V at ambient temperature 40 °C rated value275 A

— up to 690 V at ambient temperature 55 °C rated value250 A

— up to 690 V at ambient temperature 60 °C rated value250 A

— at 400 V rated value97 A

— at 690 V rated value97 A

minimum cross-section in main circuit at maximum AC-1 rated value140 mm²

— at 24 V rated value250 A

— at 60 V rated value250 A

— at 110 V rated value18 A

— at 220 V rated value3,4 A

— at 440 V rated value0,8 A

— at 600 V rated value0,5 A

— at 24 V rated value250 A

— at 60 V rated value250 A

— at 110 V rated value250 A

— at 220 V rated value20 A

— at 440 V rated value3,2 A

— at 600 V rated value1,6 A

— at 24 V rated value250 A

— at 60 V rated value250 A

— at 110 V rated value250 A

— at 220 V rated value250 A

— at 440 V rated value11,5 A

— at 600 V rated value4 A

— at 24 V rated value250 A

— at 60 V rated value7,5 A

— at 110 V rated value2,5 A

— at 220 V rated value0,6 A

— at 440 V rated value0,17 A

— at 600 V rated value0,12 A

— at 24 V rated value250 A

— at 60 V rated value250 A

— at 110 V rated value250 A

— at 220 V rated value2,5 A

— at 440 V rated value0,65 A

— at 600 V rated value0,37 A

— at 24 V rated value250 A

— at 60 V rated value250 A

— at 110 V rated value250 A

— at 220 V rated value250 A

— at 440 V rated value1,4 A

— at 600 V rated value0,75 A

at AC1.000 1/h

at DC1.000 1/h

at AC-1 maximum600 1/h

Control circuit/ Control

type of voltageAC/DC

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value21... 27,3 V

at 60 Hz rated value21... 27,3 V

control supply voltage at DC rated value21... 27,3 V

initial value0,8

full-scale value1,1

at 50 Hz0,8... 1,1

at 60 Hz0,8... 1,1

type of PLC-control input according to IEC 60947-1Type 2

consumed current at PLC-control input according to IEC 60947-1 maximum20 mA

design of the surge suppressorwith varistor

— at 50 Hz190 V·A

— at 60 Hz190 V·A

— at 60 Hz280 V·A

— at 50 Hz280 V·A

at 50 Hz280 V·A

at 50 Hz0,8

at minimum rated control supply voltage at DC2,1 V·A

at maximum rated control supply voltage at DC2,8 V·A

— at 50 Hz4,3 V·A

— at 60 Hz4,3 V·A

— at 50 Hz5,2 V·A

— at 60 Hz5,2 V·A

at 50 Hz4,4 V·A

at 50 Hz0,5

closing power of magnet coil at DC320 W

holding power of magnet coil at DC2,8 W

at AC35... 75 ms

at DC35... 75 ms

at AC80... 90 ms

at DC80... 90 ms

arcing time10... 15 ms

control version of the switch operating mechanismPLC-IN veya Standard A1 - A2 (adjustable)

Auxiliary circuit

number of NC contacts for auxiliary contacts2

attachable4

instantaneous contact2

number of NO contacts for auxiliary contacts2

attachable4

instantaneous contact2

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 355 A (690 V, 100 kA)

— with type of coordination 2 requiredgR: 350 A (690 V, 100 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting positionwith dikey mounting surface +/-90° rotatable, with dikey mounting surface +/- 22,5° tiltable to the front ve back

fastening method side-by-side mountingVar

fastening methodscrew fixing

height172 mm

width120 mm

depth170 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitConnection bar

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

width of connection bar17 mm

thickness of connection bar3 mm

diameter of holes9 mm

number of holes1

for AWG cables for main contacts4... 250 kcmil

solid or stranded25... 120 mm²

stranded25... 120 mm²

solid or stranded0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)

— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14), 1x 12

AWG number as coded connectable conductor cross section for auxiliary contacts18... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

service life maximum20 a

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover
