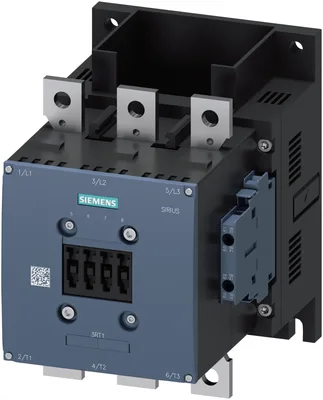

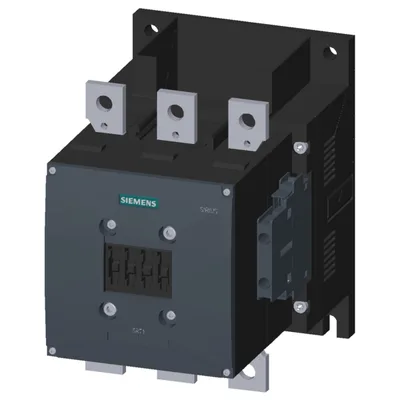

Siemens 3RT1065-6LA06

power contactor, AC-3e/AC-3 265 A, 132 kW / 400 V without operating mechanism 3-pole, auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

SiemensMFR # 3RT1065-6LA06SKU # CEY-8EF3B0393BA4

product brand nameSIRIUS

product designationPower contactor

product type designation3RT1

size of contactorS10

function module for communicationYok

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

power contactor, AC-3e/AC-3 265 A, 132 kW / 400 V without operating mechanism 3-pole, auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

Siemens 3RT1065-6LA06

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationPower contactor

product type designation3RT1

General technical data

size of contactorS10

function module for communicationYok

auxiliary switchVar

at AC in hot operating state54 W

at AC in hot operating state per pole18 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value1.000 V

of auxiliary circuit with degree of pollution 3 rated value500 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V

at AC8,5 g / 5 ms, 4,2 g / 10 ms

at DC8,5 g / 5 ms, 4,2 g / 10 ms

at AC13,4 g / 5 ms, 6,5 g / 10 ms

at DC13,4 g / 5 ms, 6,5 g / 10 ms

of contactor typical10.000.000

of the contactor with added electronically optimized auxiliary switch block typical5.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1

Net Weight5,522 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum1.000 V

at AC-3e rated value maximum1.000 V

at AC-1 at 400 V at ambient temperature 40 °C rated value330 A

— up to 690 V at ambient temperature 40 °C rated value330 A

— up to 690 V at ambient temperature 60 °C rated value300 A

— up to 1000 V at ambient temperature 40 °C rated value150 A

— up to 1000 V at ambient temperature 60 °C rated value150 A

— at 400 V rated value265 A

— at 500 V rated value265 A

— at 690 V rated value265 A

— at 1000 V rated value95 A

— at 400 V rated value265 A

— at 500 V rated value265 A

— at 690 V rated value265 A

— at 1000 V rated value95 A

at AC-4 at 400 V rated value230 A

at AC-5a up to 690 V rated value290 A

at AC-5b up to 400 V rated value219 A

— up to 230 V for current peak value n=20 rated value265 A

— up to 400 V for current peak value n=20 rated value265 A

— up to 500 V for current peak value n=20 rated value265 A

— up to 690 V for current peak value n=20 rated value265 A

— up to 1000 V for current peak value n=20 rated value95 A

— up to 230 V for current peak value n=30 rated value184 A

— up to 400 V for current peak value n=30 rated value184 A

— up to 500 V for current peak value n=30 rated value184 A

— up to 690 V for current peak value n=30 rated value184 A

— up to 1000 V for current peak value n=30 rated value95 A

minimum cross-section in main circuit at maximum AC-1 rated value185 mm²

at 400 V rated value117 A

at 690 V rated value105 A

— at 24 V rated value300 A

— at 60 V rated value300 A

— at 110 V rated value33 A

— at 220 V rated value3,8 A

— at 440 V rated value0,9 A

— at 600 V rated value0,6 A

— at 24 V rated value300 A

— at 60 V rated value300 A

— at 110 V rated value300 A

— at 220 V rated value300 A

— at 440 V rated value4 A

— at 600 V rated value2 A

— at 24 V rated value300 A

— at 60 V rated value300 A

— at 110 V rated value300 A

— at 220 V rated value300 A

— at 440 V rated value11 A

— at 600 V rated value5,2 A

— at 24 V rated value300 A

— at 60 V rated value11 A

— at 110 V rated value3 A

— at 220 V rated value0,6 A

— at 440 V rated value0,18 A

— at 600 V rated value0,125 A

— at 24 V rated value300 A

— at 60 V rated value300 A

— at 110 V rated value300 A

— at 220 V rated value2,5 A

— at 440 V rated value0,65 A

— at 600 V rated value0,37 A

— at 24 V rated value300 A

— at 60 V rated value300 A

— at 110 V rated value300 A

— at 220 V rated value300 A

— at 440 V rated value1,4 A

— at 600 V rated value0,75 A

— at 230 V rated value75 kW

— at 400 V rated value132 kW

— at 500 V rated value160 kW

— at 690 V rated value250 kW

— at 1000 V rated value132 kW

— at 230 V rated value75 kW

— at 400 V rated value132 kW

— at 500 V rated value160 kW

— at 690 V rated value250 kW

— at 1000 V rated value132 kW

at 400 V rated value66 kW

at 690 V rated value102 kW

up to 230 V for current peak value n=20 rated value100 kVA

up to 400 V for current peak value n=20 rated value180 kVA

up to 500 V for current peak value n=20 rated value220 kVA

up to 690 V for current peak value n=20 rated value310 kVA

up to 1000 V for current peak value n=20 rated value160 kVA

up to 230 V for current peak value n=30 rated value70 kVA

up to 400 V for current peak value n=30 rated value120 kVA

up to 500 V for current peak value n=30 rated value150 kVA

up to 690 V for current peak value n=30 rated value220 kVA

up to 1000 V for current peak value n=30 rated value160 kVA

limited to 1 s switching at zero current maximum4.880 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum4.045 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum2.785 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum1.664 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum1.276 A; Use minimum cross-section acc. to AC-1 rated value

at AC2.000 1/h

at DC2.000 1/h

at AC-1 maximum800 1/h

at AC-2 maximum250 1/h

at AC-3 maximum500 1/h

— maximum500 1/h

at AC-4 maximum130 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at AC30... 95 ms

at DC30... 95 ms

at AC40... 80 ms

at DC40... 80 ms

arcing time10... 15 ms

control version of the switch operating mechanismWithout operating mechanism

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact2

number of NO contacts for auxiliary contacts instantaneous contact2

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0,15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

at 480 V rated value240 A

at 600 V rated value242 A

— at 200/208 V rated value75 hp

— at 220/230 V rated value100 hp

— at 460/480 V rated value200 hp

— at 575/600 V rated value250 hp

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 500 A (690 V, 100 kA)

— with type of coordination 2 requiredgG: 400 A (690 V, 100 kA), aM: 315 A (690 V, 50 kA), BS88: 400 A (415 V, 50 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting positionwith dikey mounting surface +/-90° rotatable, with dikey mounting surface +/- 22,5° tiltable to the front ve back

fastening method side-by-side mountingVar

fastening methodscrew fixing

height210 mm

width145 mm

depth202 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitConnection bar

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

width of connection bar25 mm

thickness of connection bar6 mm

diameter of holes11 mm

number of holes1

for AWG cables for main contacts2/0... 500 kcmil

stranded70... 240 mm²

solid or stranded0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)

— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14), 1x 12

AWG number as coded connectable conductor cross section for auxiliary contacts18... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

suitable for safety functionVar

suitability for use safety-related switching OFFVar

service life maximum20 a

test wear-related service life necessaryVar

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201.000.000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryVar

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with box terminal/cover

Aksesuarlar 38

Siemens 3RT1065-6LA06 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RH1921-1DA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1EA11	Aksesuar · Auxiliary switch · auxiliary switches
3RT1966-4EA1	Aksesuar · Terminal covers · terminal covers
3RA1954-2A	Aksesuar · Mechanical interlocks · mechanical interlocks
3RT1966-4EA2	Aksesuar · Terminal covers · terminal covers
3TX6546-3B	Aksesuar · Terminal covers · terminal covers
3RH1921-1JA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1KA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1EA02	Aksesuar · Auxiliary switch · auxiliary switches
3RA1962-2A	Aksesuar · Base plates · base plates
3RT1966-4EA3	Aksesuar · Terminal covers · terminal covers
3RH1921-1EA20	Aksesuar · Auxiliary switch · auxiliary switches
3RT1916-4JA02	Aksesuar · Miscellaneous accessories · insulation stops
3RA1963-2A	Aksesuar · Wiring modules, connectors and kits · link rails
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RT2926-1QT00	Aksesuar · LED modules · LED display indicator modules
3RH1921-1KA20	Aksesuar · Auxiliary switch · auxiliary switches
3RT1926-4MA10	Aksesuar · Sealing covers · sealing covers
3RH1921-1KA02	Aksesuar · Auxiliary switch · auxiliary switches
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RA1962-2E	Aksesuar · Base plates · base plates
3RH1981-1JA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1981-1DA11	Aksesuar · Auxiliary switch · auxiliary switches
3RT1966-4G	Aksesuar · Terminal covers · box terminal blocks
3RT1966-4BA31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RT1955-4PA00	Aksesuar · Terminal covers · connection methods
3RH1921-1CD10	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CD01	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CA10	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CA01	Aksesuar · Auxiliary switch · auxiliary switches
3RA1973-3E	Aksesuar · Wiring modules, connectors and kits · link rails
3RA1963-3E	Aksesuar · Wiring modules, connectors and kits · link rails
3RA1963-2B	Aksesuar · Wiring modules, connectors and kits · link rails
3RA1962-2F	Aksesuar · Base plates · base plates
3RH1921-1XA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RT1965-7A	Yedek parça · Arc chutes · arc chutes
3RT1965-6A	Yedek parça · Contact pieces and vacuum interrupters · contacts

İlgili Ürünler

Detayları Gör

Siemens

1EE1122-..A00-...4

MFR #1EE1122-..A00-...4

SKU #YLS3FGFZLYE3EV8

Detayları Gör

Siemens

1EE1124-..A00-...4

MFR #1EE1124-..A00-...4

SKU #YLSKZIN1GEIPRVP

Detayları Gör

Siemens

1EE1142-..A00-...4

MFR #1EE1142-..A00-...4

SKU #YLSUX3MNEZEJGPU

Detayları Gör

Siemens

1EE1144-..A00-...4

MFR #1EE1144-..A00-...4

MFR #1EE1324-..A00-...4

MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR

SKU #YLS1HII4JHHH09L

İlgili Aramalar

Siemens 3RT1065-6LA06 fiyatSiemens 3RT1065-6LA06 teklif alSiemens 3RT1065-6LA06 satın al3RT1065-6LA06 fiyat3RT1065-6LA06 stok durumuSiemens yedek parçaSiemens 3RT1065-6LA06 muadilSiemens 3RT1065-6LA06 teknik özellikler

Çerez Kullanımı

Siemens 3RT1065-6LA06

Ürün Hakkında

Siemens 3RT1065-6LA06

Teknik Özellikler

Aksesuarlar 38

İlgili Ürünler

1EE1122-..A00-...4

1EE1124-..A00-...4

1EE1142-..A00-...4

1EE1144-..A00-...4

1EE1322-....0-...4

1EE1322-...00-1..2

1EE1322-..A00-...4

1EE1324-....0-...4

1EE1324-...00-1..2

1EE1324-..A00-...4

Öne Çıkan Ürünler

MXS-AS16L

MXQ25L-40B-M9NZ

VQZ2121-5LO1-N3T

VFSWDM3546T-5E

BM3615T W/ 2-1/4" LONG SHAFT

NCMC150-0600-X103US

NCDJ2L10-300-B

VM8001-5

NCDGFN25-0100

AC40B-N04G-RZ-B F/R COMBO MODULAR

İlgili Aramalar
