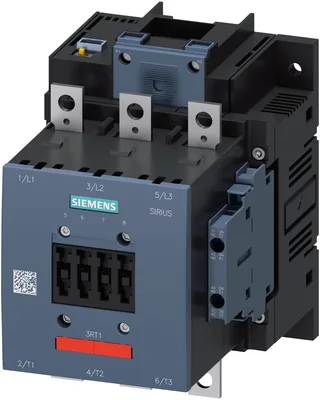

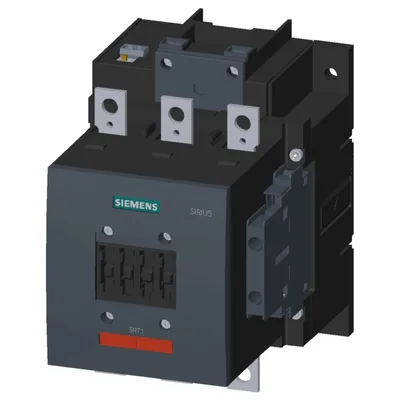

Siemens 3RT1056-6NB36-3PA0
güç kontaktör, AC-3e/AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC Uc: 21-27, 3 V PLC giriş 24 V DC 3-pole, yardımcı contacts 2 NO + 2 NC permanently mounted sürücü: elektronik main circuit: bara kontrol ve yardımcı circuit: vidalı klemens
product brand nameSIRIUS
product designationPower contactor
product type designation3RT1
size of contactorS6
function module for communicationYok
auxiliary switchVar
Ürün Hakkında
güç kontaktör, AC-3e/AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC Uc: 21-27, 3 V PLC giriş 24 V DC 3-pole, yardımcı contacts 2 NO + 2 NC permanently mounted sürücü: elektronik main circuit: bara kontrol ve yardımcı circuit: vidalı klemens
Siemens 3RT1056-6NB36-3PA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationPower contactor
product type designation3RT1
General technical data
size of contactorS6
function module for communicationYok
auxiliary switchVar
at AC in hot operating state39 W
at AC in hot operating state per pole13 W
without load current share typical2,8 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value1.000 V
of auxiliary circuit with degree of pollution 3 rated value500 V
of main circuit rated value8 kV
of auxiliary circuit rated value6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V
at AC8,5 g / 5 ms, 4,2 g / 10 ms
at DC8,5 g / 5 ms, 4,2 g / 10 ms
at AC13,4 g / 5 ms, 6,5 g / 10 ms
at DC13,4 g / 5 ms, 6,5 g / 10 ms
of contactor typical10.000.000
of the contactor with added electronically optimized auxiliary switch block typical5.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight3,274 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum1.000 V
at AC-3e rated value maximum1.000 V
at AC-1 at 400 V at ambient temperature 40 °C rated value215 A
— up to 690 V at ambient temperature 40 °C rated value215 A
— up to 690 V at ambient temperature 60 °C rated value185 A
— up to 1000 V at ambient temperature 40 °C rated value100 A
— up to 1000 V at ambient temperature 60 °C rated value100 A
— at 400 V rated value185 A
— at 500 V rated value185 A
— at 690 V rated value170 A
— at 1000 V rated value65 A
— at 400 V rated value185 A
— at 500 V rated value185 A
— at 690 V rated value170 A
— at 1000 V rated value65 A
at AC-4 at 400 V rated value160 A
at AC-5a up to 690 V rated value189 A
at AC-5b up to 400 V rated value153 A
— up to 230 V for current peak value n=20 rated value157 A
— up to 400 V for current peak value n=20 rated value157 A
— up to 500 V for current peak value n=20 rated value157 A
— up to 690 V for current peak value n=20 rated value157 A
— up to 1000 V for current peak value n=20 rated value65 A
— up to 230 V for current peak value n=30 rated value105 A
— up to 400 V for current peak value n=30 rated value105 A
— up to 500 V for current peak value n=30 rated value105 A
— up to 690 V for current peak value n=30 rated value105 A
— up to 1000 V for current peak value n=30 rated value65 A
minimum cross-section in main circuit at maximum AC-1 rated value95 mm²
at 400 V rated value81 A
at 690 V rated value65 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value18 A
— at 220 V rated value3,4 A
— at 440 V rated value0,8 A
— at 600 V rated value0,5 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value20 A
— at 440 V rated value3,2 A
— at 600 V rated value1,6 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value160 A
— at 440 V rated value11,5 A
— at 600 V rated value4 A
— at 24 V rated value160 A
— at 60 V rated value7,5 A
— at 220 V rated value0,6 A
— at 440 V rated value0,17 A
— at 600 V rated value0,12 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value2,5 A
— at 440 V rated value0,65 A
— at 600 V rated value0,37 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value160 A
— at 440 V rated value1,4 A
— at 600 V rated value0,75 A
at AC-2 at 400 V rated value90 kW
— at 230 V rated value55 kW
— at 400 V rated value90 kW
— at 500 V rated value132 kW
— at 690 V rated value160 kW
— at 1000 V rated value90 kW
— at 230 V rated value55 kW
— at 400 V rated value90 kW
— at 500 V rated value132 kW
— at 690 V rated value160 kW
— at 1000 V rated value90 kW
at 400 V rated value45 kW
at 690 V rated value65 kW
up to 230 V for current peak value n=20 rated value60 kVA
up to 400 V for current peak value n=20 rated value100 kVA
up to 500 V for current peak value n=20 rated value130 kVA
up to 690 V for current peak value n=20 rated value180 kVA
up to 1000 V for current peak value n=20 rated value110 kVA
up to 230 V for current peak value n=30 rated value40 kVA
up to 400 V for current peak value n=30 rated value70 kVA
up to 500 V for current peak value n=30 rated value90 kVA
up to 690 V for current peak value n=30 rated value120 kVA
up to 1000 V for current peak value n=30 rated value110 kVA
limited to 1 s switching at zero current maximum2.900 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum2.084 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum1.480 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum968 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum801 A; Use minimum cross-section acc. to AC-1 rated value
at AC1.000 1/h
at DC1.000 1/h
at AC-1 maximum800 1/h
at AC-2 maximum300 1/h
at AC-3 maximum750 1/h
— maximum750 1/h
at AC-4 maximum130 1/h
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value21... 27,3 V
at 60 Hz rated value21... 27,3 V
control supply voltage at DC rated value21... 27,3 V
initial value0,8
full-scale value1,1
at 50 Hz0,8... 1,1
at 60 Hz0,8... 1,1
type of PLC-control input according to IEC 60947-1Type 2
consumed current at PLC-control input according to IEC 60947-1 maximum20 mA
voltage at PLC-control input rated value24 V
operating range factor of the voltage at PLC-control input0,8... 1,1
design of the surge suppressorwith varistor
— at 50 Hz190 V·A
— at 60 Hz190 V·A
— at 60 Hz280 V·A
— at 50 Hz280 V·A
at 50 Hz280 V·A
at 60 Hz280 V·A
at 50 Hz0,8
at 60 Hz0,8
at minimum rated control supply voltage at DC2,1 V·A
at maximum rated control supply voltage at DC2,8 V·A
— at 50 Hz3,5 V·A
— at 60 Hz3,5 V·A
— at 50 Hz4,8 V·A
— at 60 Hz4,8 V·A
at 50 Hz0,6
at 60 Hz0,6
closing power of magnet coil at DC320 W
holding power of magnet coil at DC2,8 W
at AC35... 75 ms
at DC35... 75 ms
at AC80... 90 ms
at DC80... 90 ms
arcing time10... 15 ms
control version of the switch operating mechanismPLC-IN veya Standard A1 - A2 (adjustable)
Auxiliary circuit
design of the auxiliary switchlateral, permanently connected
number of NC contacts for auxiliary contacts instantaneous contact2
number of NO contacts for auxiliary contacts instantaneous contact2
operational current at AC-12 maximum10 A
at 230 V rated value6 A
at 400 V rated value3 A
at 500 V rated value2 A
at 690 V rated value1 A
at 24 V rated value10 A
at 48 V rated value6 A
at 60 V rated value6 A
at 110 V rated value3 A
at 125 V rated value2 A
at 220 V rated value1 A
at 600 V rated value0,15 A
at 24 V rated value10 A
at 48 V rated value2 A
at 60 V rated value2 A
at 110 V rated value1 A
at 125 V rated value0,9 A
at 220 V rated value0,3 A
at 600 V rated value0,1 A
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
UL/CSA ratings
at 480 V rated value180 A
at 600 V rated value192 A
— at 230 V rated value30 hp
— at 200/208 V rated value60 hp
— at 220/230 V rated value75 hp
— at 460/480 V rated value150 hp
— at 575/600 V rated value200 hp
contact rating of auxiliary contacts according to ULA600 / Q600
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
— with type of coordination 1 requiredgG: 355 A (690 V, 100 kA)
— with type of coordination 2 requiredgG: 315 A (690 V, 100 kA), aM: 200 A (690 V, 50 kA), BS88: 315 A (415 V, 50 kA)
for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)
Installation/ mounting/ dimensions
mounting positionwith dikey mounting surface +/-90° rotatable, with dikey mounting surface +/- 22,5° tiltable to the front ve back
fastening method side-by-side mountingVar
fastening methodscrew fixing
height172 mm
width120 mm
depth170 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
— forwards20 mm
— upwards10 mm
— at the side10 mm
— downwards10 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
Connections/ Terminals
for main current circuitConnection bar
for auxiliary and control circuitscrew-type terminals
at contactor for auxiliary contactsScrew-type terminals
of magnet coilscrew terminal
width of connection bar17 mm
thickness of connection bar3 mm
diameter of holes9 mm
number of holes1
for AWG cables for main contacts4... 250 kcmil
stranded25... 120 mm²
solid or stranded0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14), 1x 12
AWG number as coded connectable conductor cross section for auxiliary contacts18... 14
Safety related data
mirror contact according to IEC 60947-4-1Var
positively driven operation according to IEC 60947-5-1Yok
suitable for safety functionVar
suitability for use safety-related switching OFFVar; safety-related disconnection via A1 A2
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192073 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
Electrical Safety
protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with box terminal/cover
Aksesuarlar 47
Siemens 3RT1056-6NB36-3PA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RH1921-1CA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH1921-1CA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT1956-4EA1 | Aksesuar · Terminal covers · terminal covers | |
| 3RT1955-4G | Aksesuar · Terminal covers · box terminal blocks | |
| 3RT1956-4EA2 | Aksesuar · Terminal covers · terminal covers | |
| 3RH1921-1DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH1921-1EA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA1953-3D | Aksesuar · Wiring modules, connectors and kits · link rails | |
| 3RT1956-4G | Aksesuar · Terminal covers · box terminal blocks | |
| 3RA1954-2A | Aksesuar · Mechanical interlocks · mechanical interlocks | |
| 3RH1921-1XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH1921-1KA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH1921-1EA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3TX6526-3B | Aksesuar · Terminal covers · terminal covers | |
| 3RA1932-2D | Aksesuar · Mechanical interlocks · mechanical connectors | |
| 3RH1921-1EA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH1921-1JA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT1956-4BA31 | Aksesuar · Wiring modules, connectors and kits · coil connectors | |
| 3RT1956-4EA3 | Aksesuar · Terminal covers · terminal covers | |
| 3TX7500-0A | Aksesuar · Plugs, adapters and terminals · auxiliary conductor terminals | |
| 3RA1952-2A | Aksesuar · Base plates · base plates | |
| 3RA1952-2E | Aksesuar · Base plates · base plates | |
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT1956-1CB00 | Aksesuar · Surge suppressor · RC elements | |
| 3RT2926-1QT00 | Aksesuar · LED modules · LED display indicator modules | |
| 3RT1956-4EA4 | Aksesuar · Terminal covers · terminal covers | |
| 3RA1954-2G | Aksesuar · Mechanical interlocks · mechanical connectors | |
| 3RA1953-2A | Aksesuar · Wiring modules, connectors and kits · link rails | |
| 3RT1916-4JA02 | Aksesuar · Miscellaneous accessories · insulation stops | |
| 3RH1921-1KA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA1953-2B | Aksesuar · Wiring modules, connectors and kits · link rails | |
| 3RH1921-1CD01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT1926-4MA10 | Aksesuar · Sealing covers · sealing covers | |
| 3RA1953-3G | Aksesuar · Wiring modules, connectors and kits · link rails | |
| 3RH1921-1KA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA1953-2N | Aksesuar · Wiring modules, connectors and kits · link rails | |
| 3RA1963-3E | Aksesuar · Wiring modules, connectors and kits · link rails | |
| 3RH1921-1CD10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA1952-2F | Aksesuar · Base plates · base plates | |
| 3RT1955-4PA00 | Aksesuar · Terminal covers · connection methods | |
| 3RA1953-3P | Aksesuar · Wiring modules, connectors and kits · link rails | |
| 3RT1955-5NB31 | Yedek parça · Solenoid coils · solenoid coils | |
| 3RT1956-6A | Yedek parça · Contact pieces and vacuum interrupters · contacts | |
| 3RT1956-7A | Yedek parça · Arc chutes · arc chutes | |
| 3RT1955-4NQ02 | Yedek parça · Terminal covers · plugs |
İlgili Ürünler
Detayları Gör
Siemens
3MV8100-0MC00
MFR #3MV8100-0MC00
SKU #YLSNDRLO7GD0JC3
Detayları Gör
Siemens
3MV8100-0MD00
MFR #3MV8100-0MD00
SKU #YLSLDR7SAMNEI7
Detayları Gör
Siemens
3MV8100-0ME00
MFR #3MV8100-0ME00
SKU #YLSQYIXF5Z6DOGW
Detayları Gör
Siemens
3MV8100-0MF00
MFR #3MV8100-0MF00
SKU #YLSE4VVERJVVVFH
Detayları Gör
Siemens
3MV8100-0MG00
MFR #3MV8100-0MG00
SKU #YLSI4OKULAP3QK
Detayları Gör
Siemens
3MV8100-0MH00
MFR #3MV8100-0MH00
SKU #YLSCUEFEDHRZRUJ
Detayları Gör
Siemens
3MV8100-0MJ00
MFR #3MV8100-0MJ00
SKU #YLSMBKZVBRAS5T
Detayları Gör
Siemens
3MV8100-0MK00
MFR #3MV8100-0MK00
SKU #YLS3JCVHPICJ2VL
Detayları Gör
Siemens
3MV8100-0ML00
MFR #3MV8100-0ML00
SKU #YLSMFZC3SXLCXHP
Öne Çıkan Ürünler
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
İlgili Aramalar
Siemens 3RT1056-6NB36-3PA0 fiyatSiemens 3RT1056-6NB36-3PA0 teklif alSiemens 3RT1056-6NB36-3PA0 satın al3RT1056-6NB36-3PA0 fiyat3RT1056-6NB36-3PA0 stok durumuSiemens yedek parçaSiemens 3RT1056-6NB36-3PA0 muadilSiemens 3RT1056-6NB36-3PA0 teknik özellikler
