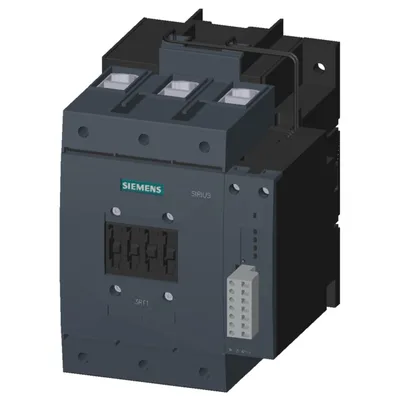

Siemens 3RT1054-1PP35

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

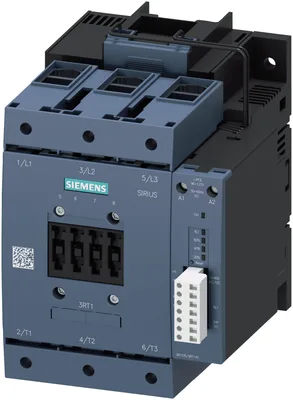

Siemens 3RT1054-1PP35

power contactor, AC-3e/AC-3 115 A, 55 kW / 400 V, AC (50-60 Hz) / DC Uc: 200-277 V PLC input 24 V DC 3-pole, auxiliary contacts 1 NO + 1 NC drive: electronic main circuit: box terminal control and auxiliary circuit: screw terminal , remaining lifetime signal

SiemensMFR # 3RT1054-1PP35SKU # CEY-8EF3B0393F5C
product brand nameSIRIUS
product designationPower contactor
product type designation3RT1
size of contactorS6
function module for communicationYok
auxiliary switchVar
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

power contactor, AC-3e/AC-3 115 A, 55 kW / 400 V, AC (50-60 Hz) / DC Uc: 200-277 V PLC input 24 V DC 3-pole, auxiliary contacts 1 NO + 1 NC drive: electronic main circuit: box terminal control and auxiliary circuit: screw terminal , remaining lifetime signal

Siemens 3RT1054-1PP35

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS
product designationPower contactor
product type designation3RT1
General technical data
size of contactorS6
function module for communicationYok
auxiliary switchVar
at AC in hot operating state21 W
at AC in hot operating state per pole7 W
without load current share typical2,8 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value1.000 V
of auxiliary circuit with degree of pollution 3 rated value500 V
of main circuit rated value8 kV
of auxiliary circuit rated value6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V
at AC8,5 g / 5 ms, 4,2 g / 10 ms
at DC8,5 g / 5 ms, 4,2 g / 10 ms
at AC13,4 g / 5 ms, 6,5 g / 10 ms
at DC13,4 g / 5 ms, 6,5 g / 10 ms
of contactor typical10.000.000
of the contactor with added electronically optimized auxiliary switch block typical5.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight3,931 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum1.000 V
at AC-3e rated value maximum1.000 V
at AC-1 at 400 V at ambient temperature 40 °C rated value160 A
— up to 690 V at ambient temperature 40 °C rated value160 A
— up to 690 V at ambient temperature 60 °C rated value140 A
— up to 1000 V at ambient temperature 40 °C rated value80 A
— up to 1000 V at ambient temperature 60 °C rated value80 A
— at 400 V rated value115 A
— at 500 V rated value115 A
— at 690 V rated value115 A
— at 1000 V rated value53 A
— at 400 V rated value115 A
— at 500 V rated value115 A
— at 690 V rated value115 A
— at 1000 V rated value53 A
at AC-4 at 400 V rated value97 A
at AC-5a up to 690 V rated value140 A
at AC-5b up to 400 V rated value95 A
— up to 230 V for current peak value n=20 rated value115 A
— up to 400 V for current peak value n=20 rated value115 A
— up to 500 V for current peak value n=20 rated value115 A
— up to 690 V for current peak value n=20 rated value115 A
— up to 1000 V for current peak value n=20 rated value53 A
— up to 230 V for current peak value n=30 rated value98 A
— up to 400 V for current peak value n=30 rated value98 A
— up to 500 V for current peak value n=30 rated value98 A
— up to 690 V for current peak value n=30 rated value98 A
— up to 1000 V for current peak value n=30 rated value53 A
minimum cross-section in main circuit at maximum AC-1 rated value70 mm²
at 400 V rated value54 A
at 690 V rated value48 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value18 A
— at 220 V rated value3,4 A
— at 440 V rated value0,8 A
— at 600 V rated value0,5 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value20 A
— at 440 V rated value3,2 A
— at 600 V rated value1,6 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value160 A
— at 440 V rated value11,5 A
— at 600 V rated value4 A
— at 24 V rated value160 A
— at 60 V rated value7,5 A
— at 220 V rated value0,6 A
— at 440 V rated value0,17 A
— at 600 V rated value0,12 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value2,5 A
— at 440 V rated value0,65 A
— at 600 V rated value0,37 A
— at 24 V rated value160 A
— at 60 V rated value160 A
— at 110 V rated value160 A
— at 220 V rated value160 A
— at 440 V rated value1,4 A
— at 600 V rated value0,75 A
— at 230 V rated value37 kW
— at 400 V rated value55 kW
— at 500 V rated value75 kW
— at 690 V rated value110 kW
— at 1000 V rated value75 kW
— at 230 V rated value37 kW
— at 400 V rated value55 kW
— at 500 V rated value75 kW
— at 690 V rated value110 kW
— at 1000 V rated value75 kW
at 400 V rated value29 kW
at 690 V rated value48 kW
up to 230 V for current peak value n=20 rated value40 kVA
up to 400 V for current peak value n=20 rated value80 kVA
up to 500 V for current peak value n=20 rated value100 kVA
up to 690 V for current peak value n=20 rated value130 kVA
up to 1000 V for current peak value n=20 rated value90 kVA
up to 230 V for current peak value n=30 rated value30 kVA
up to 400 V for current peak value n=30 rated value60 kVA
up to 500 V for current peak value n=30 rated value80 kVA
up to 690 V for current peak value n=30 rated value110 kVA
up to 1000 V for current peak value n=30 rated value90 kVA
limited to 1 s switching at zero current maximum2.565 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum1.654 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum1.170 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum729 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum572 A; Use minimum cross-section acc. to AC-1 rated value
at AC1.000 1/h
at DC1.000 1/h
at AC-1 maximum800 1/h
at AC-2 maximum400 1/h
at AC-3 maximum1.000 1/h
— maximum1.000 1/h
at AC-4 maximum130 1/h
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value200... 277 V
at 60 Hz rated value200... 277 V
control supply voltage at DC rated value200... 277 V
initial value0,8
full-scale value1,1
at 50 Hz0,8... 1,1
at 60 Hz0,8... 1,1
type of PLC-control input according to IEC 60947-1Type 2
consumed current at PLC-control input according to IEC 60947-1 maximum20 mA
voltage at PLC-control input rated value24 V
operating range factor of the voltage at PLC-control input0,8... 1,1
design of the surge suppressorwith varistor
— at 50 Hz190 V·A
— at 60 Hz190 V·A
— at 60 Hz280 V·A
— at 50 Hz280 V·A
at 50 Hz280 V·A
at 60 Hz280 V·A
at 50 Hz0,8
at 60 Hz0,8
at minimum rated control supply voltage at DC2,1 V·A
at maximum rated control supply voltage at DC2,8 V·A
— at 50 Hz3,5 V·A
— at 60 Hz3,5 V·A
— at 50 Hz4,8 V·A
— at 60 Hz4,8 V·A
at 50 Hz0,6
at 60 Hz0,6
closing power of magnet coil at DC320 W
holding power of magnet coil at DC2,8 W
at AC35... 75 ms
at DC35... 75 ms
at AC80... 90 ms
at DC80... 90 ms
arcing time10... 15 ms
control version of the switch operating mechanismPLC-IN veya Standard A1 - A2 (adjustable)
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact1
number of NO contacts for auxiliary contacts instantaneous contact1
operational current at AC-12 maximum10 A
at 230 V rated value6 A
at 400 V rated value3 A
at 500 V rated value2 A
at 690 V rated value1 A
at 24 V rated value10 A
at 48 V rated value6 A
at 60 V rated value6 A
at 110 V rated value3 A
at 125 V rated value2 A
at 220 V rated value1 A
at 600 V rated value0,15 A
at 24 V rated value10 A
at 48 V rated value2 A
at 60 V rated value2 A
at 110 V rated value1 A
at 125 V rated value0,9 A
at 220 V rated value0,3 A
at 600 V rated value0,1 A
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
UL/CSA ratings
at 480 V rated value124 A
at 600 V rated value125 A
— at 230 V rated value25 hp
— at 200/208 V rated value40 hp
— at 220/230 V rated value50 hp
— at 460/480 V rated value100 hp
— at 575/600 V rated value125 hp
contact rating of auxiliary contacts according to ULA600 / Q600
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
— with type of coordination 1 requiredgG: 355 A (690 V, 100 kA)
— with type of coordination 2 requiredgG: 250 A (690 V, 100 kA), aM: 200 A (690 V, 50 kA), BS88: 250 A (415 V, 50 kA)
for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)
for short-circuit protection of the RLT relay output requiredminiature fuse: 4 A FF (230 V, Ik= 400 A)

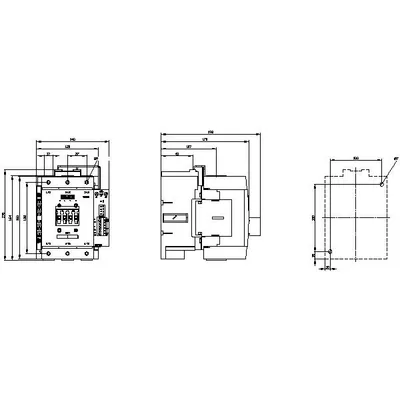

Installation/ mounting/ dimensions
mounting positionwith dikey mounting surface +/-90° rotatable, with dikey mounting surface +/- 22,5° tiltable to the front ve back
fastening method side-by-side mountingVar
fastening methodscrew fixing
height172 mm
width140 mm
depth170 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
— forwards20 mm
— upwards10 mm
— at the side10 mm
— downwards10 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
Connections/ Terminals
for main current circuitbox terminal
for auxiliary and control circuitscrew-type terminals
at contactor for auxiliary contactsScrew-type terminals
of magnet coilscrew terminal
— strandedmaks. 1x 50, 1x 70 mm²
— solid or strandedmaks. 1x 50, 1x 70 mm²
— finely stranded with core end processingmaks. 1x 50, 1x 70 mm²
— finely stranded without core end processingmaks. 1x 50, 1x 70 mm²
for AWG cables for main contacts2x 1/0
stranded16... 70 mm²
finely stranded with core end processing16... 70 mm²
finely stranded without core end processing16... 70 mm²
solid or stranded0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), maks. 2x (0,75... 4 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14), 1x 12
AWG number as coded connectable conductor cross section for auxiliary contacts18... 14
Safety related data
mirror contact according to IEC 60947-4-1Var
positively driven operation according to IEC 60947-5-1Yok
suitable for safety functionVar
suitability for use safety-related switching OFFVar; safety-related disconnection via A1 A2
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192073 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Aksesuarlar 47

Siemens 3RT1054-1PP35 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
3RH1921-1CA10Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1CA01Aksesuar · Auxiliary switch · auxiliary switches
3RT1956-4EA1Aksesuar · Terminal covers · terminal covers
3RT1955-4GAksesuar · Terminal covers · box terminal blocks
3RT1956-4EA2Aksesuar · Terminal covers · terminal covers
3RH1921-1DA11Aksesuar · Auxiliary switch · auxiliary switches
3RT1956-1CD00Aksesuar · Surge suppressor · RC elements
3RH1921-1EA11Aksesuar · Auxiliary switch · auxiliary switches
3RA1953-3DAksesuar · Wiring modules, connectors and kits · link rails
3RT1956-4GAksesuar · Terminal covers · box terminal blocks
3RA1954-2AAksesuar · Mechanical interlocks · mechanical interlocks
3RH1921-1XA22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1KA11Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1EA02Aksesuar · Auxiliary switch · auxiliary switches
3TX6526-3BAksesuar · Terminal covers · terminal covers
3RA1932-2DAksesuar · Mechanical interlocks · mechanical connectors
3RH1921-1EA20Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-1JA11Aksesuar · Auxiliary switch · auxiliary switches
3RT1956-4BA31Aksesuar · Wiring modules, connectors and kits · coil connectors
3RT1956-4EA3Aksesuar · Terminal covers · terminal covers
3TX7500-0AAksesuar · Plugs, adapters and terminals · auxiliary conductor terminals
3RA1952-2AAksesuar · Base plates · base plates
3RA1952-2EAksesuar · Base plates · base plates
3RT2900-1SB10Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB20Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60Aksesuar · Miscellaneous accessories · labeling plates
3RT2926-1QT00Aksesuar · LED modules · LED display indicator modules
3RT1956-4EA4Aksesuar · Terminal covers · terminal covers
3RT1956-1CE00Aksesuar · Surge suppressor · RC elements
3RA1954-2GAksesuar · Mechanical interlocks · mechanical connectors
3RA1953-2AAksesuar · Wiring modules, connectors and kits · link rails
3RT1916-4JA02Aksesuar · Miscellaneous accessories · insulation stops
3RH1921-1KA20Aksesuar · Auxiliary switch · auxiliary switches
3RA1953-2BAksesuar · Wiring modules, connectors and kits · link rails
3RH1921-1CD01Aksesuar · Auxiliary switch · auxiliary switches
3RT1926-4MA10Aksesuar · Sealing covers · sealing covers
3RA1953-3GAksesuar · Wiring modules, connectors and kits · link rails
3RH1921-1KA02Aksesuar · Auxiliary switch · auxiliary switches
3RA1953-2NAksesuar · Wiring modules, connectors and kits · link rails
3RA1963-3EAksesuar · Wiring modules, connectors and kits · link rails
3RH1921-1CD10Aksesuar · Auxiliary switch · auxiliary switches
3RA1952-2FAksesuar · Base plates · base plates
3RT1955-4PA00Aksesuar · Terminal covers · connection methods
3RA1953-3PAksesuar · Wiring modules, connectors and kits · link rails
3RT1954-7AYedek parça · Arc chutes · arc chutes
3RT1954-6AYedek parça · Contact pieces and vacuum interrupters · contacts
3RT1955-5PP31Yedek parça · Solenoid coils · solenoid coils

İlgili Ürünler

1EE1122-..A00-...4
Siemens 1EE1122-..A00-...4
Detayları Gör

Siemens

1EE1122-..A00-...4

MFR #1EE1122-..A00-...4

SKU #YLS3FGFZLYE3EV8

1EE1124-..A00-...4
Siemens 1EE1124-..A00-...4
Detayları Gör

Siemens

1EE1124-..A00-...4

MFR #1EE1124-..A00-...4

SKU #YLSKZIN1GEIPRVP

1EE1142-..A00-...4
Siemens 1EE1142-..A00-...4
Detayları Gör

Siemens

1EE1142-..A00-...4

MFR #1EE1142-..A00-...4

SKU #YLSUX3MNEZEJGPU

1EE1144-..A00-...4
Siemens 1EE1144-..A00-...4
Detayları Gör

Siemens

1EE1144-..A00-...4

MFR #1EE1144-..A00-...4

SKU #YLSD9GON9QOYBAE

1EE1322-....0-...4
Siemens 1EE1322-....0-...4
Detayları Gör

Siemens

1EE1322-....0-...4

MFR #1EE1322-....0-...4

SKU #YLSSAVZE8P7OOP6

1EE1322-...00-1..2
Siemens 1EE1322-...00-1..2
Detayları Gör

Siemens

1EE1322-...00-1..2

MFR #1EE1322-...00-1..2

SKU #YLSY69IQB2JXAXJ

1EE1322-..A00-...4
Siemens 1EE1322-..A00-...4
Detayları Gör

Siemens

1EE1322-..A00-...4

MFR #1EE1322-..A00-...4

SKU #YLSH1E6AJR6XWJF

1EE1324-....0-...4
Siemens 1EE1324-....0-...4
Detayları Gör

Siemens

1EE1324-....0-...4

MFR #1EE1324-....0-...4

SKU #YLS8GBB9BXAF83

1EE1324-...00-1..2
Siemens 1EE1324-...00-1..2
Detayları Gör

Siemens

1EE1324-...00-1..2

MFR #1EE1324-...00-1..2

SKU #YLSLOS6I1BDXR58

1EE1324-..A00-...4
Siemens 1EE1324-..A00-...4
Detayları Gör

Siemens

1EE1324-..A00-...4

MFR #1EE1324-..A00-...4

SKU #YLSE0T3LUEU0CI

Öne Çıkan Ürünler

MXQ25-40B-M9NZ
SMC MXQ25-40B-M9NZ
Detayları Gör

SMC

MXQ25-40B-M9NZ

MFR #MXQ25-40B-M9NZ

SKU #YLST5TX9LNATRNS

AW20-N02CG-6CZ-B
SMC AW20-N02CG-6CZ-B
Detayları Gör

SMC

AW20-N02CG-6CZ-B

MFR #AW20-N02CG-6CZ-B

SKU #YLSNOOF0IBCZ3J3

BM3615T W/ 2-1/4" LONG SHAFT
Baldor BM3615T W/ 2-1/4" LONG SHAFT
Detayları Gör

Baldor

BM3615T W/ 2-1/4" LONG SHAFT

MFR #BM3615T W/ 2-1/4" LONG SHAFT

SKU #YLSUV0OKQIKNTRJ

CDJ2L16-125Z-B
SMC CDJ2L16-125Z-B
Detayları Gör

SMC

CDJ2L16-125Z-B

MFR #CDJ2L16-125Z-B

SKU #YLS5V0RW2VJJR1A

MY1M20-200AH
SMC MY1M20-200AH
Detayları Gör

SMC

MY1M20-200AH

MFR #MY1M20-200AH

SKU #YLSIZ8K8N4KBPBQ

VM8001-5
Baldor VM8001-5
Detayları Gör

Baldor

VM8001-5

MFR #VM8001-5

SKU #YLS3TOWVXWW0DHP

ZCUKQ25-50D
SMC ZCUKQ25-50D
Detayları Gör

SMC

ZCUKQ25-50D

MFR #ZCUKQ25-50D

SKU #YLSQ684QXTNN958

CM2B40-75Z
SMC CM2B40-75Z
Detayları Gör

SMC

CM2B40-75Z

MFR #CM2B40-75Z

SKU #YLSOGLJ512KWTEJ

MDBB63-100Z
SMC MDBB63-100Z
Detayları Gör

SMC

MDBB63-100Z

MFR #MDBB63-100Z

SKU #YLSNBPQBGLI90UX

BC8M12
Brush Research Mfg BC8M12
Detayları Gör

Brush Research Mfg

BC8M12

MFR #BC8M12

SKU #YLSA0P5BE6ZJCIW

İlgili Aramalar

Siemens 3RT1054-1PP35 fiyatSiemens 3RT1054-1PP35 teklif alSiemens 3RT1054-1PP35 satın al3RT1054-1PP35 fiyat3RT1054-1PP35 stok durumuSiemens yedek parçaSiemens 3RT1054-1PP35 muadilSiemens 3RT1054-1PP35 teknik özellikler
