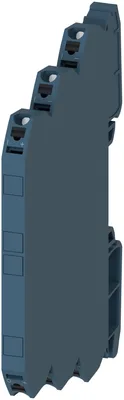

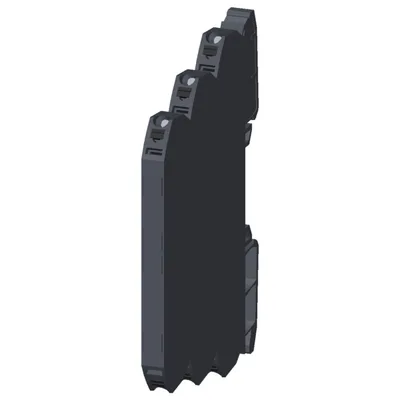

Siemens 3RS7020-2ET00
Separation amplifier Loop güç isolator, 1-channel giriş: 4-20 mA çıkış: 4-20 mA genişlik 6,2 mm Spring-type klemens (push-in)
product brand nameSIRIUS
product categorySignal converter
product designationSingle-range converters
design of the productpassive
product type designation3RS70
display version LEDYok
Ürün Hakkında
Separation amplifier Loop güç isolator, 1-channel giriş: 4-20 mA çıkış: 4-20 mA genişlik 6,2 mm Spring-type klemens (push-in)
Siemens 3RS7020-2ET00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySignal converter
product designationSingle-range converters
design of the productpassive
product type designation3RS70
General technical data
display version LEDYok
number of channels1
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value50 V
voltage drop at operating equipment4,1 V
surge voltage resistance rated value1.500 V
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-66... 150 Hz: 2 g
reference code according to IEC 81346-2T
Substance Prohibitance (day/month/year)03/25/2015
Net Weight0,043 kg
Precision
relative metering precision0,1 %
temperature drift per °C0,015 %/°C
voltage ripple maximum5 mV
settling time for 1 % deviation6 ms
Inputs/ Outputs
input voltage maximum30 V
property of the output short-circuit proofYok
type of signal at input4... 20 mA
type of signal at output4... 20 mA
input impedance of current input maximum100 Ω
at the current output maximum1.000 Ω
influence of the output load on measuring accuracy0,06 %/100 Ω
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1Environment B
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-41 kV 5/50 ns
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
design of the electrical isolation2 paths
between input and outputVar
between the outputsYok
between the inputsYok
between the voltage supply and other circuitsYok
Connections/ Terminals
type of electrical connectionspring-loaded terminal (push-in)
solid1x (0,25... 2,5 mm²)
finely stranded with core end processing1x (0,25... 1,5 mm²)
finely stranded without core end processing1x (0,25... 2,5 mm²)
for AWG cables solid1x (20... 14)
for AWG cables stranded1x (20... 14)
solid0,25... 2,5 mm²
finely stranded with core end processing0,25... 1,5 mm²
finely stranded without core end processing0,25... 2,5 mm²
solid20... 14
stranded20... 14

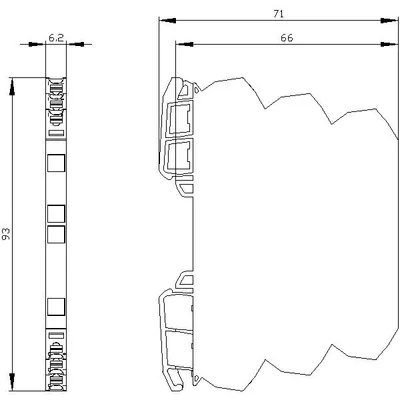

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height93 mm
width6,2 mm
depth71 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity during operation10... 95 %
