Siemens 3RS7005-1FE00

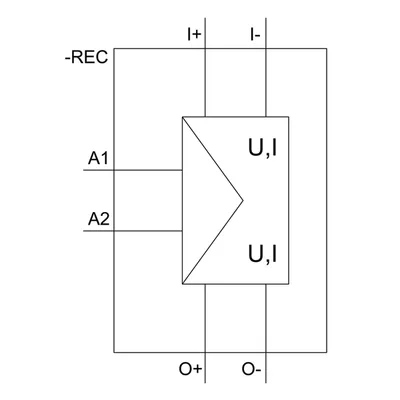

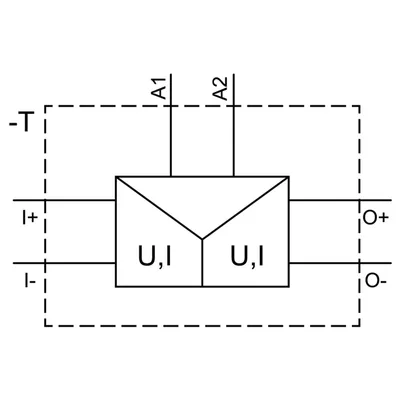

Separation amplifier 24 V AC/DC, 3-way separation input: 0-10 V, 0/4-20 mA output: 0-10 V, 0/4-20 mA screw terminal
product brand nameSIRIUS
product categorySignal converter
product designationmulti-range converters
design of the productactive, switchable
product type designation3RS70
display version LEDVar
Ürün Hakkında
Separation amplifier 24 V AC/DC, 3-way separation input: 0-10 V, 0/4-20 mA output: 0-10 V, 0/4-20 mA screw terminal
Siemens 3RS7005-1FE00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySignal converter
product designationmulti-range converters
design of the productactive, switchable
product type designation3RS70
General technical data
display version LEDVar
number of channels1
consumed active power0,29 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value50 V
surge voltage resistance rated value2.500 V
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-66... 150 Hz: 2 g
reference code according to IEC 81346-2T
Substance Prohibitance (day/month/year)03/25/2015
Net Weight0,048 kg
Besleme gerilimi
at 50 Hz rated value24 V
at 60 Hz rated value24 V
supply voltage at DC rated value24 V
supply voltage frequency rated value60... 50 Hz
at AC at 50 Hz0,8... 1,1
at AC at 60 Hz0,8... 1,1
at DC0,8... 1,1
Precision
relative metering precision0,1 %
relative linearity deviation0,05 %
temperature drift per °C0,015 %/°C
voltage ripple maximum20 mV
limit frequency30 Hz
settling time for 1 % deviation17 ms
rise time6 ms
Main circuit
type of voltageAC/DC
Inputs/ Outputs
input voltage maximum30 V
property of the output short-circuit proofVar
type of signal at input0... 10 V, 0... 20 mA, 4... 20 mA
type of signal at output0... 10 V, 0... 20 mA, 4... 20 mA
input impedance of current input maximum100 Ω
input impedance of voltage input minimum330 kΩ
at voltage output minimum2 kΩ
at the current output maximum500 Ω
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1Environment B
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-41 kV 5/50 ns
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
design of the electrical isolation3 paths
between input and outputVar
between the outputsYok
between the inputsYok
between the voltage supply and other circuitsVar
Connections/ Terminals
type of electrical connectionscrew terminal
solid1x (0,25... 2,5 mm²)
finely stranded with core end processing1x (0,25... 1,5 mm²)
for AWG cables solid1x (20... 14)
solid0,25... 2,5 mm²
finely stranded with core end processing0,25... 1,5 mm²
solid20... 14
tightening torque with screw-type terminals0,5... 0,6 N·m
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height93 mm
width6,2 mm
depth72,5 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity during operation10... 95 %
Aksesuarlar 6
Siemens 3RS7005-1FE00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RQ3901-0A | Aksesuar · Connecting combs | |
| 3RQ3901-0B | Aksesuar · Connecting combs | |
| 3RQ3901-0C | Aksesuar · Connecting combs | |
| 3RQ3901-0D | Aksesuar · Connecting combs | |
| 3RQ3900-0A | Aksesuar · Galvanic isolation plates | |
| 3RQ3902-0A | Aksesuar · Clip-on labels |
