Siemens 3RS2500-2AW30 için nasıl fiyat teklifi alabilirim?

Siemens 3RS2500-2AW30 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLS0MHWQRUKTHKX ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RS2500-2AW30 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RS2500-2AW30 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RS2500-2AW30 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

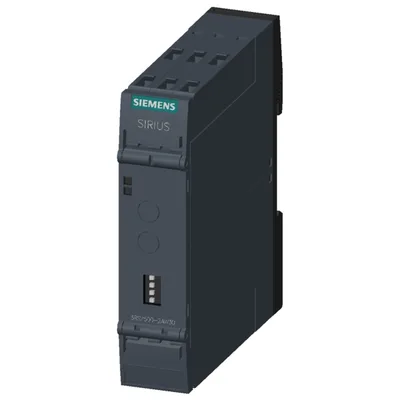

Siemens 3RS2500-2AW30

sıcaklık monitoring röle Pt100, thermocouple J, K 1 threshold value, genişlik 22,5 mm overshoot ve undershoot 24 - 240 V AC/DC 1 change-over kontak, quiescent akım principle yaylı klemens (push-in)

SiemensMFR # 3RS2500-2AW30SKU # YLS0MHWQRUKTHKX

product brand nameSIRIUS

product designationTemperature monitoring relay

product type designation3RS2

product functiontemperature monitoring

display version LEDVar

test voltage for isolation test4 kV

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RS2500-2AW30

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationTemperature monitoring relay

design of the productAnalog multifunction device, 1 sensor, 1 threshold value

product type designation3RS2

General technical data

product functiontemperature monitoring

display version LEDVar

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test4 kV

degree of pollution3

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610... 55 Hz: 0,35 mm

switching behaviormonostable

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) at AC-15 at 230 V typical100.000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

influence of the surrounding temperature0,05% per K deviation from T20

initial value-50 °C

full-scale value1.000 °C

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,139 kg

error memoryYok

external resetYok

design of the sensor connectableResistance sensors: Pt100 Thermocouples: Type J, K

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24... 240 V

at 60 Hz rated value24... 240 V

at 50 Hz rated value24 V

at 50 Hz24... 240 V

at 60 Hz rated value24 V

at 60 Hz24... 240 V

control supply voltage at DC rated value24... 240 V

control supply voltage 1 at DC24... 240 V

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

supply voltage frequency for auxiliary and control circuit50... 60 Hz

number of measuring circuits1

buffering time in the event of power failure minimum20 ms

Precision

relative metering precision5 %

Short-circuit protection

for short-circuit protection of the NO contacts of the relay outputs requiredgL/gG: 6 A veya MCB type C: 1 A

for short circuit protection of the NC contacts of the relay outputs requiredgL/gG: 6 A veya MCB type C: 1 A

for short-circuit protection of the NO contacts of the relay outputs safety-related requiredgL/gG: 2 A veya MCB type C: 1 A

for short circuit protection of the NC contacts of the relay outputs safety-related requiredgL/gG: 2 A veya MCB type C: 1 A

Communication/ Protocol

protocol is supported IO-Link protocolYok

Auxiliary circuit

material of switching contactsAgSnO2

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts1

at 24 V1 A

at 125 V0,2 A

at 250 V0,1 A

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

contact rating of auxiliary contacts according to ULR300 / B300

operating frequency rated value50... 60 Hz

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0,2 A

continuous current of the DIAZED fuse link of the output relay6 A

continuous current of DIAZED fuse link of the output relay safety-related2 A

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1Class B

due to burst according to IEC 61000-4-42 kV (power ports), 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)

due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationgalvanic isolation

between input and outputVar

between the voltage supply and other circuitsVar

ATEX

certificate of suitability relating to ATEXYok

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionspring-loaded terminal (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0,5... 4 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²)

finely stranded without core end processing0,5... 4 mm²

for AWG cables solid1x (20... 12)

for AWG cables stranded20... 12

solid0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

finely stranded without core end processing0,5... 4 mm²

solid20... 12

stranded20... 12

type of electrical connection plug-in socketVar

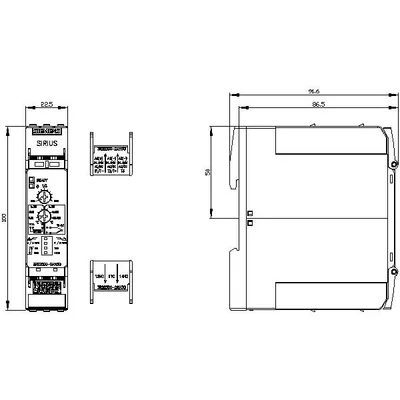

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height100 mm

width22,5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +85 °C

during transport-40... +85 °C

relative humidity during operation maximum70 %

Aksesuarlar 4

Siemens 3RS2500-2AW30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1450-1AB00	Aksesuar · Further accessories
