Siemens 3RR2443-1AA40 için nasıl fiyat teklifi alabilirim?

Siemens 3RR2443-1AA40 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02DFD6B ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RR2443-1AA40 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RR2443-1AA40 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RR2443-1AA40 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

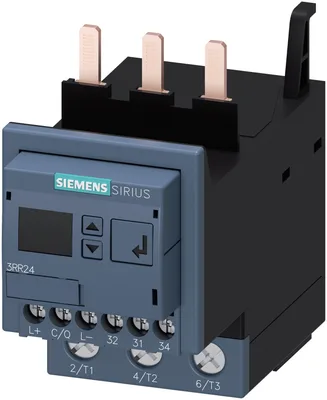

Siemens 3RR2443-1AA40

Current monitoring relay for IO-Link, can be mounted to Contactor, 3RT2, Size S2 Apparant/active current monitoring 8-80 A, 20-400 Hz, 3-phase Supply voltage 24 V DC 1 change-over contact Monitoring for Current overshoot and undershoot Current asymmetry Phase failure, Cable break Phase sequence, Residual current Blocking current, Switching cycle and Operating hours counter Warning and alarm thresholds Auto-reset or manual reset ON delay 0-9999.9 s OFF delay 0-9999.9 s Reclosing delay 0-300 min Screw connection system

SiemensMFR # 3RR2443-1AA40SKU # CEY-8EF3B02DFD6B

product brand nameSIRIUS

product designationMonitoring relays

product type designation3RR22

product functioncurrent monitoring

operating apparent power rated value2,5 V·A

with degree of pollution 3 rated value690 V

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RR2443-1AA40

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationMonitoring relays

design of the productdigitally adjustable, 3-phase current monitoring, IO-Link

product type designation3RR22

General technical data

size of contactor can be combined company-specificS2

product functioncurrent monitoring

operating apparent power rated value2,5 V·A

with degree of pollution 3 rated value690 V

type of voltage of the operating voltage for actuationDC

surge voltage resistance rated value6 kV

at 24 V90 mA

at 240 V12 mA

on the frontIP20

of the terminalIP00

shock resistance10 g / 11 ms

vibration resistance10... 55 Hz / 0,35 mm

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) at AC-15 at 230 V typical100.000

reference code according to IEC 81346-2K

relative repeat accuracy2 %

Substance Prohibitance (day/month/year)10/01/2009

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight388,08 g

Control circuit/ Control

control supply voltage at DC rated value24 V

Besleme gerilimi

type of voltage of the supply voltageDC

supply voltage 1 at DC rated value24 V

relative negative tolerance of the supply voltage25 %

relative positive tolerance of the supply voltage25 %

Measuring circuit

type of current for monitoringAC

18... 80 A

28... 80 A

when starting0... 999,9 s

with lower or upper limit violation0... 999,9 s

adjustable switching hysteresis for measured current value0,2... 16 A

accuracy of digital display+/-1 digit

Precision

temperature drift per °C0,1 %/°C

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A

Communication/ Protocol

protocol is supported IO-Link protocolVar

IO-Link transfer rateCOM2 (38,4 kBaud)

point-to-point cycle time between master and IO-Link device minimum10 ms

type of voltage supply via input/output link masterVar

of the address range of the inputs with cyclical transfer total4 bayt

of the address range of the outputs with cyclical transfer total2 bayt

Auxiliary circuit

for auxiliary contacts1

delayed switching1

at 24 V3 A

at 230 V3 A

at 24 V1 A

at 125 V0,2 A

at 250 V0,1 A

contact rating of auxiliary contacts according to ULB300 / R300

Main circuit

operating power rated value2,5 W

ampacity of the semiconductor output in SIO mode200 mA

operational current at 17 V minimum5 mA

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1ambience A (industrial sector)

Safety related data

product function suitable for safety functionYok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for main circuitYok

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionscrew terminal

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

solid2x (1... 35 mm²), 1x (1... 50 mm²)

stranded2x (1... 35 mm²), 1x (1... 50 mm²)

finely stranded with core end processing2x (1... 25 mm²), 1x (1... 35 mm²)

solid or stranded1... 50 mm²

finely stranded with core end processing1... 35 mm²

— solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)

for AWG cables for auxiliary contacts2x (20... 14)

AWG number as coded connectable conductor cross section for main contacts18... 1

tightening torque with screw-type terminals0,8... 1,2 N·m

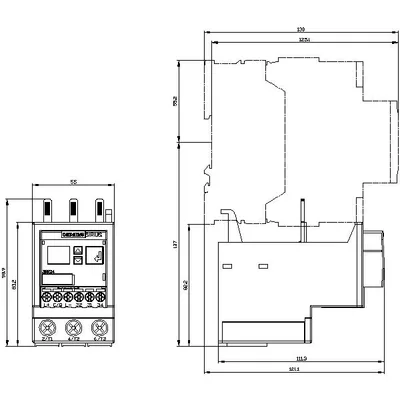

Installation/ mounting/ dimensions

mounting positionany

fastening methoddirect mounting

height99 mm

width55 mm

depth112 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— backwards0 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards10 mm

— backwards0 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

Aksesuarlar 5

Siemens 3RR2443-1AA40 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RR2940	Aksesuar · Sealing covers · sealing covers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RU2936-3AA01	Aksesuar · terminal support · stand-alone installation supports
3RU2936-3AA01-Z	Aksesuar
3RU2936-3AA01-Z	Aksesuar
