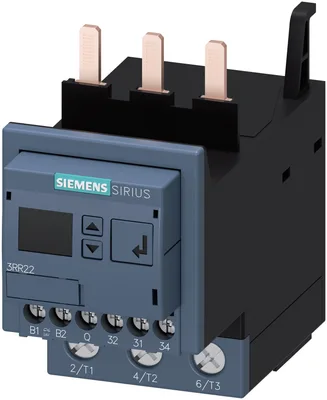

Siemens 3RR2243-1FA30
Monitoring relay, can be mounted to Contactor 3RT2, Size S2 standard, digitally adjustable Apparant/active current monitoring 8...80 A, 20...400 Hz, 3-phase Supply 24 V AC/DC 1 change-over contact, 1 semiconductor output for alarm and warning Monitoring for Current overshoot and undershoot Phase failure, Cable break Phase sequence Residual current Blocking current Warning and alarm thresholds with or without fault buffer ON delay 0-99 s Noise pulse suppression 0-30 s Pause after fault 0-300 min Screw connection system
product brand nameSIRIUS
product designationMonitoring relays
product type designation3RR22
product functioncurrent monitoring
operating apparent power rated value4 V·A
with degree of pollution 3 rated value690 V
Ürün Hakkında
Monitoring relay, can be mounted to Contactor 3RT2, Size S2 standard, digitally adjustable Apparant/active current monitoring 8...80 A, 20...400 Hz, 3-phase Supply 24 V AC/DC 1 change-over contact, 1 semiconductor output for alarm and warning Monitoring for Current overshoot and undershoot Phase failure, Cable break Phase sequence Residual current Blocking current Warning and alarm thresholds with or without fault buffer ON delay 0-99 s Noise pulse suppression 0-30 s Pause after fault 0-300 min Screw connection system
Siemens 3RR2243-1FA30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMonitoring relays
design of the productdigitally adjustable, 3-phase current monitoring
product type designation3RR22
General technical data
size of contactor can be combined company-specificS2
product functioncurrent monitoring
operating apparent power rated value4 V·A
with degree of pollution 3 rated value690 V
type of voltage of the operating voltage for actuationAC/DC
surge voltage resistance rated value6 kV
at 24 V90 mA
at 240 V12 mA
on the frontIP20
of the terminalIP00
shock resistance10 g / 11 ms
vibration resistance10... 55 Hz / 0,35 mm
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
reference code according to IEC 81346-2K
relative repeat accuracy2 %
Substance Prohibitance (day/month/year)10/01/2009
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight388,08 g
Control circuit/ Control
at 50 Hz rated value24 V
at 60 Hz rated value24 V
control supply voltage at DC rated value24 V
Besleme gerilimi
type of voltage of the supply voltageAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
supply voltage 1 at DC rated value24 V
supply voltage frequency 150... 60 Hz
Measuring circuit
type of current for monitoringAC
18... 80 A
28... 80 A
when starting0... 99 s
with lower or upper limit violation0... 30 s
adjustable switching hysteresis for measured current value0,2... 16 A
accuracy of digital display+/-1 digit
Precision
temperature drift per °C0,1 %/°C
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A
Communication/ Protocol
protocol is supported IO-Link protocolYok
type of voltage supply via input/output link masterYok
Auxiliary circuit
for auxiliary contacts1
delayed switching1
at 24 V3 A
at 230 V3 A
at 400 V3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
contact rating of auxiliary contacts according to ULB300 / R300
Main circuit
operating power rated value2,5 W
ampacity of the semiconductor output at AC-14 at 240 V at 50/60 Hz20 mA
ampacity of the semiconductor output at DC-13 at 240 V20 mA
ampacity of the semiconductor output in SIO mode20 mA
operational current at 17 V minimum5 mA
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1ambience A (industrial sector)
Safety related data
product function suitable for safety functionYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for main circuitYok
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
solid2x (1... 35 mm²), 1x (1... 50 mm²)
stranded2x (1... 35 mm²), 1x (1... 50 mm²)
finely stranded with core end processing2x (1... 25 mm²), 1x (1... 35 mm²)
solid or stranded1... 50 mm²
finely stranded with core end processing1... 35 mm²
— solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables for auxiliary contacts2x (20... 14)
AWG number as coded connectable conductor cross section for main contacts18... 1
tightening torque with screw-type terminals0,8... 1,2 N·m

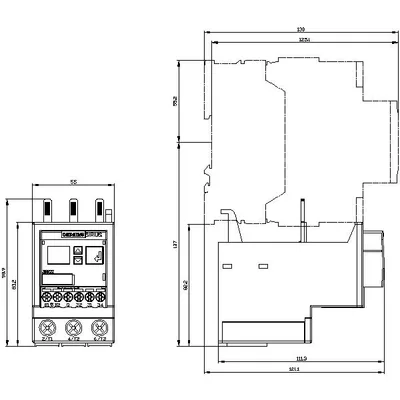

Installation/ mounting/ dimensions
mounting positionany
fastening methoddirect mounting
height99 mm
width55 mm
depth112 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards10 mm
— at the side0 mm
— forwards10 mm
— backwards0 mm
— upwards10 mm
— at the side10 mm
— downwards10 mm
— forwards10 mm
— backwards0 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
Aksesuarlar 5
Siemens 3RR2243-1FA30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RR2940 | Aksesuar · Sealing covers · sealing covers | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RU2936-3AA01 | Aksesuar · terminal support · stand-alone installation supports | |
| 3RU2936-3AA01-Z | Aksesuar | |
| 3RU2936-3AA01-Z | Aksesuar |
