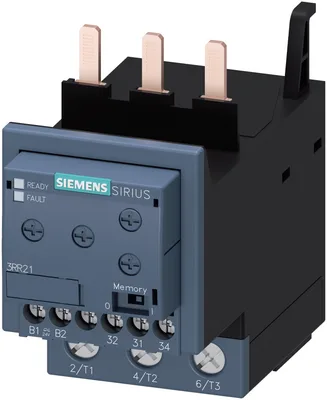

Siemens 3RR2143-1AA30
Monitoring relay, can be mounted to Contactor 3RT2, Size S2 basic, analog adjustment Apparent current monitoring 8...80 A, 50...60 Hz, 2-phase Supply 24 V AC/DC 1 change-over contact Monitoring for Current overshoot and undershoot Phase failure, Cable break with or without fault buffer ON delay 0-60 s Noise pulse suppression 0-30 s Switching hysteresis 6% Screw connection system
product brand nameSIRIUS
product designationMonitoring relays
product type designation3RR21
product functioncurrent monitoring
operating apparent power rated value4 V·A
with degree of pollution 3 rated value690 V
Ürün Hakkında
Monitoring relay, can be mounted to Contactor 3RT2, Size S2 basic, analog adjustment Apparent current monitoring 8...80 A, 50...60 Hz, 2-phase Supply 24 V AC/DC 1 change-over contact Monitoring for Current overshoot and undershoot Phase failure, Cable break with or without fault buffer ON delay 0-60 s Noise pulse suppression 0-30 s Switching hysteresis 6% Screw connection system
Siemens 3RR2143-1AA30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMonitoring relays
design of the productanalogically adjustable, 2-phase current monitoring
product type designation3RR21
General technical data
size of contactor can be combined company-specificS2
product functioncurrent monitoring
operating apparent power rated value4 V·A
with degree of pollution 3 rated value690 V
type of voltage of the operating voltage for actuationAC/DC
surge voltage resistance rated value6 kV
at 24 V90 mA
at 240 V12 mA
on the frontIP20
of the terminalIP00
shock resistance10 g / 11 ms
vibration resistance10... 55 Hz / 0,35 mm
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
reference code according to IEC 81346-2K
relative repeat accuracy2 %
Substance Prohibitance (day/month/year)03/01/2017
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight347,08 g
Control circuit/ Control
at 50 Hz rated value24 V
at 60 Hz rated value24 V
control supply voltage at DC rated value24 V
Besleme gerilimi
type of voltage of the supply voltageAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
supply voltage 1 at DC rated value24 V
supply voltage frequency 150... 60 Hz
Measuring circuit
type of current for monitoringAC
18... 80 A
28... 80 A
when starting0... 60 s
with lower or upper limit violation0... 30 s
Precision
temperature drift per °C0,1 %/°C
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A
Communication/ Protocol
protocol is supported IO-Link protocolYok
type of voltage supply via input/output link masterYok
Auxiliary circuit
for auxiliary contacts1
delayed switching1
at 24 V3 A
at 230 V3 A
at 400 V3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
contact rating of auxiliary contacts according to ULB300 / R300
Main circuit
operating power rated value2,5 W
ampacity of the semiconductor output in SIO mode20 mA
operational current at 17 V minimum5 mA
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1ambience A (industrial sector)
Safety related data
product function suitable for safety functionYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for main circuitYok
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
solid2x (1... 35 mm²), 1x (1... 50 mm²)
stranded2x (1... 35 mm²), 1x (1... 50 mm²)
finely stranded with core end processing2x (1... 25 mm²), 1x (1... 35 mm²)
solid or stranded1... 50 mm²
finely stranded with core end processing1... 35 mm²
— solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables for auxiliary contacts2x (20... 14)
AWG number as coded connectable conductor cross section for main contacts18... 1
tightening torque with screw-type terminals0,8... 1,2 N·m

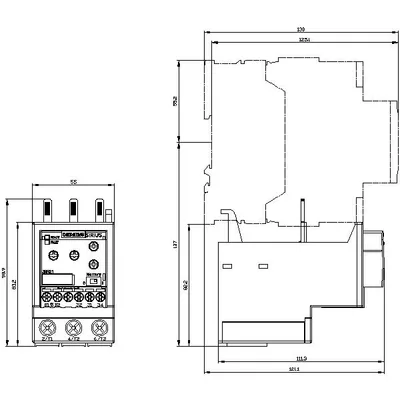

Installation/ mounting/ dimensions
mounting positionany
fastening methoddirect mounting
height99 mm
width55 mm
depth112 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards10 mm
— at the side0 mm
— forwards10 mm
— backwards0 mm
— upwards10 mm
— at the side10 mm
— downwards10 mm
— forwards10 mm
— backwards0 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
Aksesuarlar 5
Siemens 3RR2143-1AA30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RR2940 | Aksesuar · Sealing covers · sealing covers | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RU2936-3AA01 | Aksesuar · terminal support · stand-alone installation supports | |
| 3RU2936-3AA01-Z | Aksesuar | |
| 3RU2936-3AA01-Z | Aksesuar |
