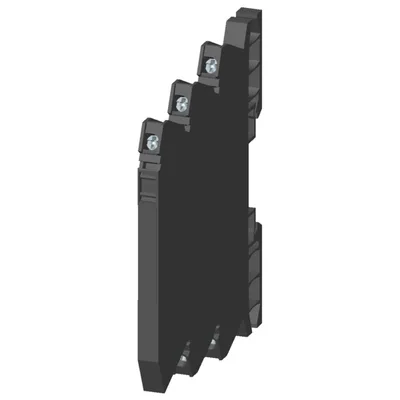

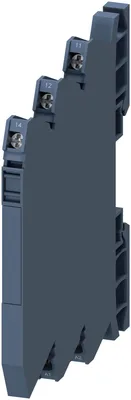

Siemens 3RQ4038-1AB00
input coupler with integrated relay, 24 V AC/DC, 1 change-over contact, screw terminal, width 6.2 mm, thermal current 6 A
product brand nameSIRIUS
product designationCoupling relay with dahili relay output
design of the productinput coupling link
product type designation3RQ4
display version LEDVar
relay outputVar
Ürün Hakkında
input coupler with integrated relay, 24 V AC/DC, 1 change-over contact, screw terminal, width 6.2 mm, thermal current 6 A
Siemens 3RQ4038-1AB00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySIRIUS 3RQ4 coupling relay, narrow design
product designationCoupling relay with dahili relay output
design of the productinput coupling link
product type designation3RQ4
General technical data
display version LEDVar
product feature protective coating on printed-circuit boardYok
relay outputVar
semi-conductor outputYok
power loss [W] maximum0,25 W
consumed active power0,3 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
surge voltage resistance rated value4 kV
between control and auxiliary circuit300 V
between control and auxiliary circuit according to IEC 60947-1300 V
percental drop-out voltage related to the input voltage10 %
protection class IPIP20
flammability class of enclosure materialUL94 V-0
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-66... 150 Hz: 2 g
operating frequency maximum72.000 1/h
switching behaviormonostable
mechanical service life (operating cycles) typical10.000.000
at AC-15 at 250 V typical100.000
thermal current6 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)09/26/2024
Net Weight0,039 kg
Control circuit/ Control
at 50 Hz rated value24 V
at 60 Hz rated value24 V
1 rated value50 Hz
2 rated value60 Hz
control supply voltage at DC rated value24 V
initial value0,85
full-scale value1,25
initial value0,8
full-scale value1,25
initial value0,8
full-scale value1,25
inrush current maximum1 A
at AC maximum10 ms
at DC maximum10 ms
OFF-delay time maximum10 ms
Switching Function
design of the switching function positively drivenYok
Digital Outputs
property of the output short-circuit proofYok
Mechanical data
product component plug-in socketYok
design of the relay operating mechanismpoled
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A
Auxiliary circuit
type of switching contactdouble contact
material of contact coatingother
material of switching contactsAgSnO2
material of the contact insertThermoplastic
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts1
at 24 V3 A
at 250 V3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)
Main circuit
type of voltageAC/DC
ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
Electromagnetic compatibility
electromagnetic compatibilityacc. to EN 60947-5-1
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Display
display version as status display by LEDLED green
Connections/ Terminals
product function removable terminalYok
type of electrical connectionscrew terminal
solid1x (0,25... 2,5 mm²)
finely stranded with core end processing1x (0,25... 2,5 mm²), 2x (0,25... 1,5 mm²)
for AWG cables solid1x (20... 14), 2x (20... 16)
solid0,25... 2,5 mm²
finely stranded with core end processing0,25... 2,5 mm²
solid20... 14
tightening torque with screw-type terminals0,5... 0,6 N·m
size of the screwdriver tip3,0 x 0,5 mm
stripped length10 mm

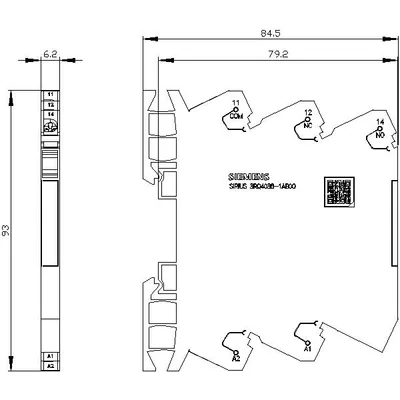

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height93 mm
width6,2 mm
depth84,5 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity during operation10... 95 %
Aksesuarlar 7
Siemens 3RQ4038-1AB00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RQ4901-0B | Aksesuar | |
| 3RQ4902-0B | Aksesuar | |
| 3RQ4902-0A | Aksesuar | |
| 3RQ4901-0D | Aksesuar | |
| 3RQ4900-0A | Aksesuar | |
| 3RQ4901-0A | Aksesuar | |
| 3RQ4901-0C | Aksesuar |
