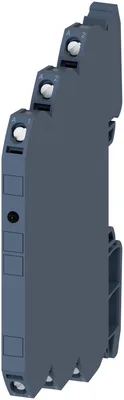

Siemens 3RQ3050-1SM50
!!! phased-out product !!! the preferred successor is 3RQ4050-1SM50 output coupler optocoupler 1 NO, transistor, 24 V DC output max. 60 V DC, 0.5 A screw terminal width 6.2 mm thermal current 0.5 A
product brand nameSIRIUS
design of the productOutput coupling link
product type designation3RQ3
display version LEDVar
relay outputYok
semi-conductor outputVar
Ürün Hakkında
!!! phased-out product !!! the preferred successor is 3RQ4050-1SM50 output coupler optocoupler 1 NO, transistor, 24 V DC output max. 60 V DC, 0.5 A screw terminal width 6.2 mm thermal current 0.5 A
Siemens 3RQ3050-1SM50
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySIRIUS 3RQ3 coupling relays in slim design
product designationCoupling relays with semiconductor output (not plug-in)
design of the productOutput coupling link
product type designation3RQ3
General technical data
display version LEDVar
product feature protective coating on printed-circuit boardYok
relay outputYok
semi-conductor outputVar
consumed active power0,3 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value50 V
surge voltage resistance rated value2,5 kV
flammability class of enclosure materialUL94 V-0
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-66... 150 Hz: 2 g
switching frequency50 Hz
thermal current0,5 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)03/25/2015
Net Weight0,031 kg
Control circuit/ Control
control supply voltage at DC rated value11... 30 V
initial value1
full-scale value1
minimum switching voltage when switching on11 V
maximum switching voltage when switching off5 V
at DC maximum0,3 ms
OFF-delay time maximum2 ms
Mechanical data
product component plug-in socketYok
Auxiliary circuit
type of switching contactNO contact
number of NO contacts for auxiliary contacts1
Main circuit
type of voltageDC
Inputs/ Outputs
property of the output short-circuit proofYok
switching voltage of the semiconductor output at DC10... 60 V
ampacity of the semiconductor output at DC1 mA... 0,5 A
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Display
display version as status display by LEDLED green
Connections/ Terminals
product function removable terminalYok
for auxiliary and control circuitscrew-type terminals
solid1x (0,25... 2,5 mm²)
finely stranded with core end processing1x (0,25... 1,5 mm²)
for AWG cables solid1x (20... 14)
solid0,25... 2,5 mm²
finely stranded with core end processing0,25... 1,5 mm²
solid20... 14
tightening torque with screw-type terminals0,5... 0,6 N·m

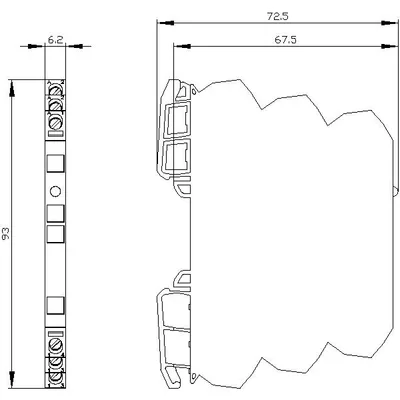

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height93 mm
width6,2 mm
depth72,5 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity during operation10... 95 %
Aksesuarlar 4
Siemens 3RQ3050-1SM50 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RQ3901-0A | Aksesuar · Connecting combs | |
| 3RQ3901-0B | Aksesuar · Connecting combs | |
| 3RQ3901-0C | Aksesuar · Connecting combs | |
| 3RQ3901-0D | Aksesuar · Connecting combs |
