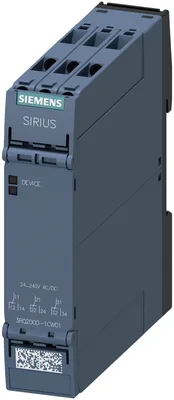

Siemens 3RQ2000-1CW01
kaplin röle in industrial muhafaza 3 hard gold-plated komütatör kontak Wide gerilim range 24 V to 240 V AC/DC vidalı terminals
product brand nameSIRIUS
product designationCoupling relay in industrial enclosure
product type designation3RQ2
consumed active power2,5 W
degree of pollution3
surge voltage resistance rated value4 kV
Ürün Hakkında
kaplin röle in industrial muhafaza 3 hard gold-plated komütatör kontak Wide gerilim range 24 V to 240 V AC/DC vidalı terminals
Siemens 3RQ2000-1CW01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCoupling relay in industrial enclosure
product type designation3RQ2
General technical data
product feature protective coating on printed-circuit boardYok
consumed active power2,5 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
degree of pollution3
surge voltage resistance rated value4 kV
between auxiliary and auxiliary circuit300 V
between control and auxiliary circuit according to IEC 60947-1300 V
according to IEC 60068-2-2711 g / 15 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 55 Hz: 0,35 mm
for railway applications according to EN 61373Category 1, Class B
switching behaviormonostable
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/31/2018
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,161 kg
Control circuit/ Control
at 50 Hz rated value24... 240 V
at 50 Hz24... 240 V
at 60 Hz rated value24... 240 V
at 60 Hz24... 240 V
control supply voltage at DC rated value24... 240 V
control supply voltage at DC24... 240 V
initial value0,7
full-scale value1,1
initial value0,7
full-scale value1,1
initial value0,7
full-scale value1,1
at AC maximum10 ms
at DC maximum10 ms
OFF-delay time maximum100 ms
Switching Function
design of the switching functionCO contact
Mechanical data
product component plug-in socketYok
design of the relay operating mechanismpoled
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 6 A
Auxiliary circuit
material of switching contactsAgNi + Au
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0

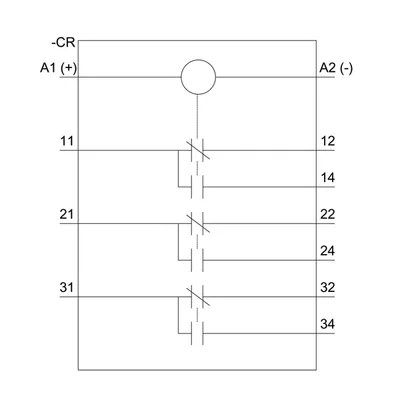

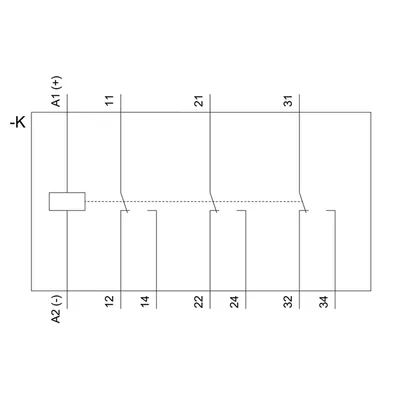

number of CO contacts for auxiliary contacts3
contact reliability of auxiliary contactsone incorrect switching per 100 million (11 V, 2 mA)
type of voltageAC/DC
at 24 V at 50/60 Hz3 A
at 110 V at 50/60 Hz3 A
at 250 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)
due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharging, 8 kV air discharging
Display
product component LEDVar
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 4 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 12), 2x (20... 14)
solid0,5... 4 mm²
finely stranded with core end processing maximum4 mm²
finely stranded without core end processing minimum0,5 mm²
solid12... 20
stranded12... 20
tightening torque with screw-type terminals0,6... 0,8 N·m
stripped length of the cable for auxiliary and control contacts10 mm

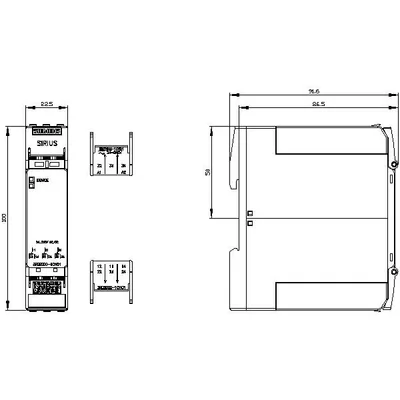

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height100 mm
width22,5 mm
depth90 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-40... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity during operation10... 95 %
Aksesuarlar 1
Siemens 3RQ2000-1CW01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3ZY1311-0AA00 | Aksesuar · Further accessories |
