Siemens 3RP2540-2BW30 için nasıl fiyat teklifi alabilirim?

Siemens 3RP2540-2BW30 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02D9636 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RP2540-2BW30 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RP2540-2BW30 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RP2540-2BW30 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

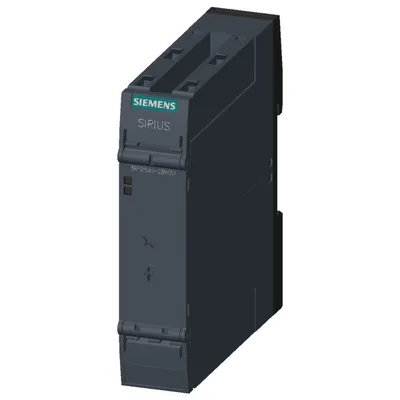

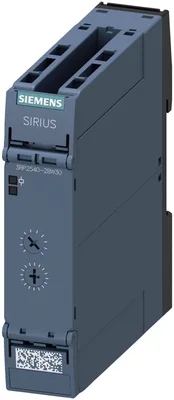

Siemens 3RP2540-2BW30

Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatile 7 time ranges 0.05...600 s 12-240 V AC/DC at 50/60 Hz AC, 2 change-over contacts with LED Spring-type terminal (push-in)

SiemensMFR # 3RP2540-2BW30SKU # CEY-8EF3B02D9636

product brand nameSIRIUS

product designationtiming relay

product type designation3RP25

relay outputVar

semi-conductor outputYok

power loss [W] maximum2 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RP2540-2BW30

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationtiming relay

design of the productOFF-delay without control signal, non-volatile, passing make contact

product type designation3RP25

General technical data

product feature protective coating on printed-circuit boardYok

relay outputVar

semi-conductor outputYok

product extension required remote controlYok

product extension optional remote controlYok

power loss [W] maximum2 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test2,5 kV

degree of pollution3

surge voltage resistance rated value4.000 V

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610... 55 Hz / 0,35 mm

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) at AC-15 at 230 V typical100.000

adjustable time0,05... 600 s

adjustable time noteminimum value function N = 0,5 s

relative setting accuracy relating to full-scale value5 %; +/-

thermal current5 A

ON period/maximum minimum250 ms

recovery time250 ms

reference code according to IEC 81346-2K

relative repeat accuracy1 %; +/-

influence of the surrounding temperature1% in the whole temperature range to the set runtime

power supply influence1% in the whole voltage range to the set runtime

Substance Prohibitance (day/month/year)09/12/2014

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,133 kg

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value12... 240 V

at 60 Hz rated value12... 240 V

at 50 Hz12... 240 V

at 60 Hz12... 240 V

control supply voltage frequency 150... 60 Hz

control supply voltage at DC rated value12... 240 V

control supply voltage 1 at DC12... 240 V

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

at 24 V0,4 A

at 240 V5 A

at 24 V0,3 ms

at 240 V0,5 ms

Switching Function

ON-delayYok

ON-delay/instantaneous contactYok

passing make contactVar

passing make contact/instantaneous contactYok

OFF delayVar

flashing symmetrically with interval start/instantaneousYok

flashing symmetrically with interval startYok

flashing symmetrically with pulse start/instantaneousYok

flashing symmetrically with pulse startYok

flashing asymmetrically with interval startYok

flashing asymmetrically with pulse startYok

star-delta circuit with delay timeYok

star-delta circuitYok

additive ON-delayYok

passing break contactYok

passing break contact/instantaneousYok

OFF delayYok

OFF delay/instantaneousYok

pulse delayedYok

pulse delayed/instantaneousYok

pulse-shapingYok

pulse-shaping/instantaneousYok

additive ON-delay/instantaneousYok

ON-delay/OFF-delay/instantaneousYok

passing make contactYok

passing make contact/instantaneous contactYok

retrotriggerable with deactivated control signal/instantaneous contactYok

retrotriggerable with switched-on control signalYok

retrotriggerable with switched-on control signal/instantaneous contactYok

retriggerable with deactivated control signalYok

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

Auxiliary circuit

material of switching contactsAgSnO2

delayed switching0

instantaneous contact0

delayed switching0

instantaneous contact0

delayed switching2

instantaneous contact0

at 24 V3 A

at 250 V3 A

at 24 V1 A

at 125 V0,2 A

at 250 V0,1 A

operating frequency with 3RT2 contactor maximum5.000 1/h

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

switching capacity current with inductive load0,01... 3 A

Inputs/ Outputs

at the relay outputs switchover delayed/without delayYok

non-volatileVar

at 24 V1 A

at 125 V0,2 A

Electromagnetic compatibility

EMC emitted interference according to IEC 61812-1ambience A (industrial sector)

EMC immunity according to IEC 61812-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

category according to EN 954-1yok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

type of insulationBasic insulation

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionspring-loaded terminal (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0,5... 4 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²)

finely stranded without core end processing0,5... 4 mm²

for AWG cables solid1x (20... 12)

for AWG cables stranded20... 12

solid0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

finely stranded without core end processing0,5... 4 mm²

solid20... 12

stranded20... 12

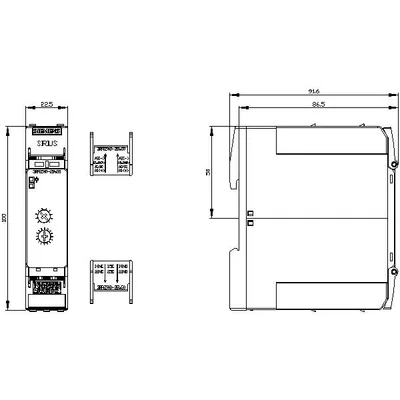

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height100 mm

width22,5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +85 °C

during transport-40... +85 °C

relative humidity during operation10... 95 %

Aksesuarlar 7

Siemens 3RP2540-2BW30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1321-2AA00	Aksesuar · Further accessories
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1122-2BA00	Aksesuar · Removable terminals
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1450-1AB00	Aksesuar · Further accessories
