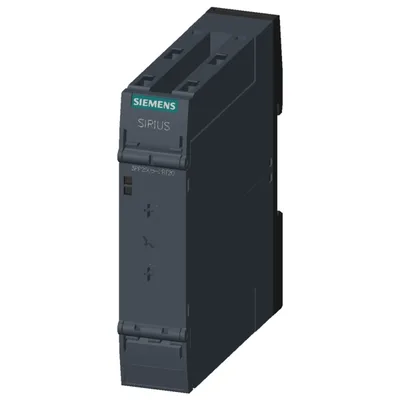

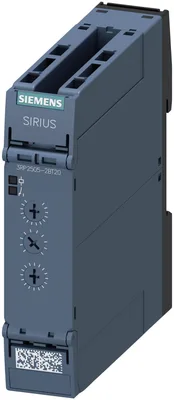

Siemens 3RP2505-2BT20
Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 400-440 V AC at 50/60 Hz AC with LED Spring-type terminal (push-in)
product brand nameSIRIUS
product designationtiming relay
design of the product27 functions
product type designation3RP25
relay outputVar
semi-conductor outputYok
Ürün Hakkında
Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 400-440 V AC at 50/60 Hz AC with LED Spring-type terminal (push-in)
Siemens 3RP2505-2BT20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationtiming relay
design of the product27 functions
product type designation3RP25
General technical data
product feature protective coating on printed-circuit boardYok
relay outputVar
semi-conductor outputYok
product extension required remote controlYok
product extension optional remote controlYok
power loss [W] maximum2 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value500 V
test voltage for isolation test2,5 kV
degree of pollution3
surge voltage resistance rated value4.000 V
shock resistance according to IEC 60068-2-2711 g / 15 ms
vibration resistance according to IEC 60068-2-610... 55 Hz / 0,35 mm
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
adjustable time0,05 s... 100 h
relative setting accuracy relating to full-scale value5 %; +/-
thermal current5 A
ON period/maximum minimum35 ms
recovery time150 ms
reference code according to IEC 81346-2K
relative repeat accuracy1 %; +/-
influence of the surrounding temperature1% in the whole temperature range to the set runtime
power supply influence1% in the whole voltage range to the set runtime
Substance Prohibitance (day/month/year)09/12/2014
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,14 kg
Control circuit/ Control
type of voltage of the control supply voltageAC
at 50 Hz rated value400... 440 V
at 60 Hz rated value400... 440 V
at 50 Hz400... 440 V
at 60 Hz400... 440 V
control supply voltage frequency 150... 60 Hz
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
at 440 V1,5 A
at 440 V0,1 ms
Switching Function
ON-delayVar
ON-delay/instantaneous contactVar
passing make contactVar
passing make contact/instantaneous contactVar
OFF delayYok
flashing symmetrically with interval start/instantaneousVar
flashing symmetrically with interval startVar
flashing symmetrically with pulse start/instantaneousVar
flashing symmetrically with pulse startVar
flashing asymmetrically with interval startYok
flashing asymmetrically with pulse startYok
star-delta circuit with delay timeYok
star-delta circuitVar
additive ON-delayVar
passing break contactVar
passing break contact/instantaneousVar
OFF delayVar
OFF delay/instantaneousVar
pulse delayedVar
pulse delayed/instantaneousVar
pulse-shapingVar
pulse-shaping/instantaneousVar
additive ON-delay/instantaneousVar
ON-delay/OFF-delay/instantaneousVar
passing make contactVar
passing make contact/instantaneous contactVar
retrotriggerable with deactivated control signal/instantaneous contactVar
retrotriggerable with switched-on control signalVar
retrotriggerable with switched-on control signal/instantaneous contactVar
retriggerable with deactivated control signalVar
design of the control terminal non-floatingVar
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A
Auxiliary circuit
material of switching contactsAgSnO2
delayed switching0
instantaneous contact0
delayed switching0
instantaneous contact0
delayed switching2
instantaneous contact0
at 24 V3 A
at 250 V3 A
at 400 V3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
operating frequency with 3RT2 contactor maximum5.000 1/h
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)
contact rating of auxiliary contacts according to ULR300 / B300
switching capacity current with inductive load0,01... 3 A
Inputs/ Outputs
at the relay outputs switchover delayed/without delayVar
non-volatileYok
at 24 V1 A
at 125 V0,2 A
Electromagnetic compatibility
EMC emitted interference according to IEC 61812-1ambience A (industrial sector)
EMC immunity according to IEC 61812-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Safety related data
category according to EN 954-1yok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
type of insulationBasic insulation
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionspring-loaded terminal (push-in)
for auxiliary and control circuitspring-loaded terminals (push-in)
solid1x (0,5... 4 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²)
finely stranded without core end processing0,5... 4 mm²
for AWG cables solid1x (20... 12)
for AWG cables stranded20... 12
solid0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
finely stranded without core end processing0,5... 4 mm²
solid20... 12
stranded20... 12

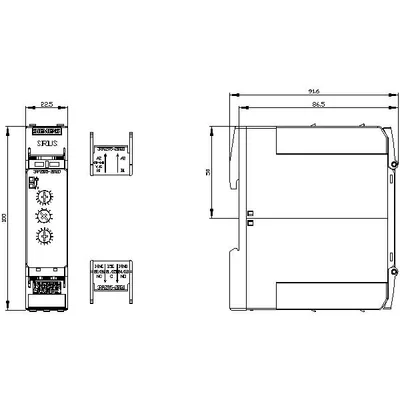

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height100 mm
width22,5 mm
depth90 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity during operation10... 95 %
