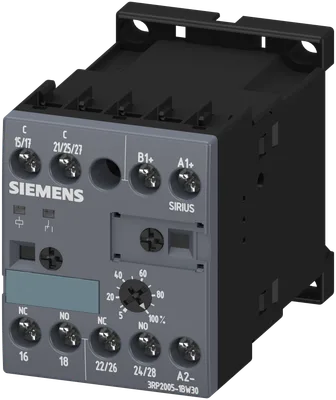

Siemens 3RP2005-1BW30

Timing röle, elektronik Multifunction, 16 functions 2 change-over contacts 24 to 240 V AC/DC at 50/60 Hz AC 0,05 s to 100 h Overall genişlik 45 mm vidalı klemens

SiemensMFR # 3RP2005-1BW30SKU # CEY-937FC780C2DD

product brand nameSIRIUS

product designationtiming relay

design of the productMultifunctional

product type designation3RP20

relay outputVar

semi-conductor outputYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Timing röle, elektronik Multifunction, 16 functions 2 change-over contacts 24 to 240 V AC/DC at 50/60 Hz AC 0,05 s to 100 h Overall genişlik 45 mm vidalı klemens

Siemens 3RP2005-1BW30

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationtiming relay

design of the productMultifunctional

product type designation3RP20

General technical data

product feature protective coating on printed-circuit boardYok

relay outputVar

semi-conductor outputYok

product extension required remote controlYok

product extension optional remote controlYok

power loss [W] maximum2 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test2 kV

degree of pollution3

surge voltage resistance rated value4.000 V

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610... 55 Hz / 0,35 mm

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) at AC-15 at 230 V typical100.000

adjustable time0,05 s... 100 h

relative setting accuracy relating to full-scale value5 %; +/-

thermal current5 A

ON period/maximum minimum35 ms

recovery time150 ms

reference code according to IEC 81346-2K

relative repeat accuracy1 %; +/-

influence of the surrounding temperature±5 %

power supply influence±1 %

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,114 kg

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24... 240 V

at 60 Hz rated value24... 240 V

at 50 Hz24... 240 V

at 60 Hz24... 240 V

control supply voltage frequency 150... 60 Hz

control supply voltage at DC rated value24... 240 V

control supply voltage 1 at DC24... 240 V

initial value0,85

full-scale value1,1

initial value0,8

full-scale value1,1

initial value0,8

full-scale value1,1

Switching Function

ON-delayVar

ON-delay/instantaneous contactVar

passing make contactVar

passing make contact/instantaneous contactVar

OFF delayYok

flashing symmetrically with interval start/instantaneousVar

flashing symmetrically with interval startVar

flashing symmetrically with pulse start/instantaneousYok

flashing symmetrically with pulse startYok

flashing asymmetrically with interval startYok

flashing asymmetrically with pulse startYok

star-delta circuit with delay timeYok

star-delta circuitVar

additive ON-delayVar

passing break contactVar

passing break contact/instantaneousVar

OFF delayVar

OFF delay/instantaneousVar

pulse delayedYok

pulse delayed/instantaneousYok

pulse-shapingVar

pulse-shaping/instantaneousVar

additive ON-delay/instantaneousVar

ON-delay/OFF-delay/instantaneousVar

passing make contactYok

passing make contact/instantaneous contactVar

retrotriggerable with deactivated control signal/instantaneous contactYok

retrotriggerable with switched-on control signalYok

retrotriggerable with switched-on control signal/instantaneous contactYok

retriggerable with deactivated control signalYok

design of the control terminal non-floatingVar

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

Auxiliary circuit

material of switching contactsAgSnO2

delayed switching0

instantaneous contact0

delayed switching0

instantaneous contact0

delayed switching2

instantaneous contact0

at 24 V3 A

at 250 V3 A

at 24 V1 A

at 125 V0,2 A

at 250 V0,1 A

operating frequency with 3RT2 contactor maximum5.000 1/h

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

contact rating of auxiliary contacts according to ULR300 / B300

Inputs/ Outputs

non-volatileYok

Electromagnetic compatibility

EMC emitted interference according to IEC 61812-1EN 61000-6-4(3)

EMC immunity according to IEC 61812-1EN 61000-6-2

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

category according to EN 954-1yok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

type of insulationBasic insulation

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYok

for auxiliary and control circuitscrew-type terminals

solid2x (0,5...1,5 mm²), 2x (0,75... 2,5 mm²)

finely stranded with core end processing2x (0,5...1,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables solid2x (18... 14)

for AWG cables stranded2x (18... 14)

solid0,5... 2,5 mm²

finely stranded with core end processing0,5... 2,5 mm²

solid18... 14

stranded18... 14

tightening torque0,8... 1,2 N·m

design of the thread of the connection screwM3

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height57 mm

width45 mm

depth73 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +85 °C

during transport-40... +85 °C

relative humidity during operation10... 95 %

Aksesuarlar 2

Siemens 3RP2005-1BW30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RP2901-0B	Aksesuar · Miscellaneous accessories · label sets
