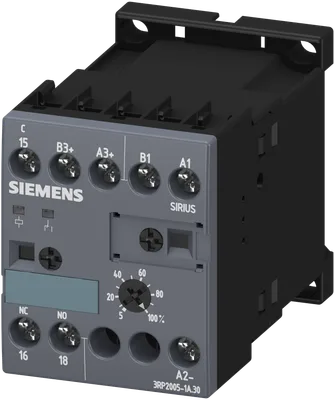

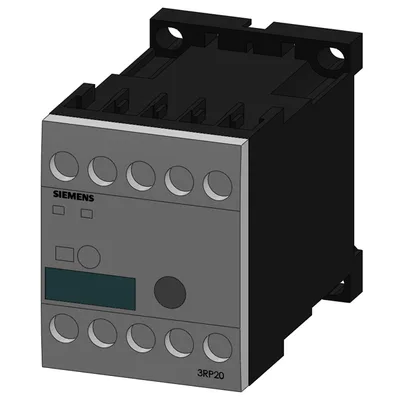

Siemens 3RP2005-1AP30
Timing relay, electronic Multifunction, 8 functions 1 change-over contact 24 V AC/DC, 200 to 240 V AC at 50/60 Hz AC 0.05 s to 100 h Overall width 45 mm screw terminal
product brand nameSIRIUS
product designationtiming relay
design of the productMultifunctional
product type designation3RP20
relay outputVar
semi-conductor outputYok
Ürün Hakkında
Timing relay, electronic Multifunction, 8 functions 1 change-over contact 24 V AC/DC, 200 to 240 V AC at 50/60 Hz AC 0.05 s to 100 h Overall width 45 mm screw terminal
Siemens 3RP2005-1AP30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationtiming relay
design of the productMultifunctional
product type designation3RP20
General technical data
product feature protective coating on printed-circuit boardYok
relay outputVar
semi-conductor outputYok
product extension required remote controlYok
product extension optional remote controlYok
power loss [W] maximum2 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
test voltage for isolation test2 kV
degree of pollution3
surge voltage resistance rated value4.000 V
shock resistance according to IEC 60068-2-2711 g / 15 ms
vibration resistance according to IEC 60068-2-610... 55 Hz / 0,35 mm
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
adjustable time0,05 s... 100 h
relative setting accuracy relating to full-scale value5 %; +/-
thermal current5 A
ON period/maximum minimum35 ms
recovery time150 ms
reference code according to IEC 81346-2K
relative repeat accuracy1 %; +/-
influence of the surrounding temperature±5 %
power supply influence±1 %
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight107,08 g
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
at 50 Hz rated value24 V
at 60 Hz rated value24 V
at 50 Hz200... 240 V
at 60 Hz200... 240 V
control supply voltage frequency 150... 60 Hz
control supply voltage at DC rated value24 V
control supply voltage 1 at DC rated value24 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
Switching Function
ON-delayVar
ON-delay/instantaneous contactYok
passing make contactVar
passing make contact/instantaneous contactYok
OFF delayYok
flashing symmetrically with interval start/instantaneousYok
flashing symmetrically with interval startVar
flashing symmetrically with pulse start/instantaneousYok
flashing symmetrically with pulse startYok
flashing asymmetrically with interval startYok
flashing asymmetrically with pulse startYok
star-delta circuit with delay timeYok
star-delta circuitYok
additive ON-delayVar
passing break contactVar
passing break contact/instantaneousYok
OFF delayVar
OFF delay/instantaneousYok
pulse delayedYok
pulse delayed/instantaneousYok
pulse-shapingVar
pulse-shaping/instantaneousYok
additive ON-delay/instantaneousYok
ON-delay/OFF-delay/instantaneousYok
passing make contactYok
passing make contact/instantaneous contactYok
retrotriggerable with deactivated control signal/instantaneous contactYok
retrotriggerable with switched-on control signalYok
retrotriggerable with switched-on control signal/instantaneous contactYok
retriggerable with deactivated control signalYok
design of the control terminal non-floatingVar
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A
Auxiliary circuit
material of switching contactsAgSnO2
delayed switching0
instantaneous contact0
delayed switching0
instantaneous contact0
delayed switching1
instantaneous contact0
at 24 V3 A
at 250 V3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
operating frequency with 3RT2 contactor maximum5.000 1/h
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)
contact rating of auxiliary contacts according to ULR300 / B300
Inputs/ Outputs
non-volatileYok
Electromagnetic compatibility
EMC emitted interference according to IEC 61812-1EN 61000-6-4(3)
EMC immunity according to IEC 61812-1EN 61000-6-2
due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Safety related data
category according to EN 954-1yok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
type of insulationBasic insulation
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
for auxiliary and control circuitscrew-type terminals
solid2x (0,5...1,5 mm²), 2x (0,75... 2,5 mm²)
finely stranded with core end processing2x (0,5...1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables solid2x (18... 14)
for AWG cables stranded2x (18... 14)
solid0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid18... 14
stranded18... 14
tightening torque0,8... 1,2 N·m
design of the thread of the connection screwM3

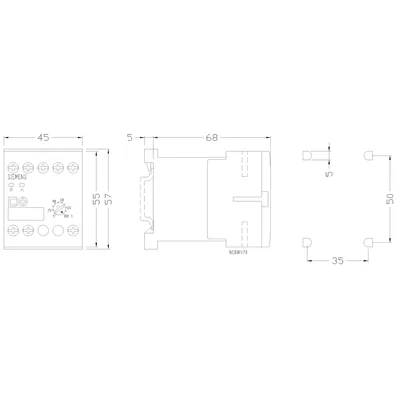

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height57 mm
width45 mm
depth73 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity during operation10... 95 %
Aksesuarlar 2
Siemens 3RP2005-1AP30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RP2901-0A | Aksesuar · Miscellaneous accessories · label sets |
