Siemens 3RN2023-1DW30 için nasıl fiyat teklifi alabilirim?

Siemens 3RN2023-1DW30 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02CD76B ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RN2023-1DW30 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RN2023-1DW30 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RN2023-1DW30 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

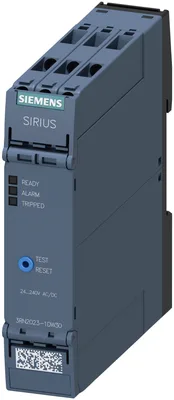

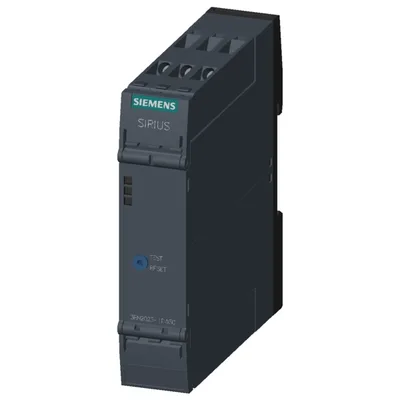

Siemens 3RN2023-1DW30

thermistor motor koruması röle cihaz için warning ve tripping 22,5 mm muhafaza vidalı klemens 1 NO kontak + 1 CO kontak Us = 24 V-240 V AC/DC manuel/auto/uzak RESET ile ATEX approval 3 LEDs (ready/warning/tripped) safe electrical separation test/RESET buton open-circuit monitoring short-circuit monitoring non-volatile 2 separate PTC sensör circuits

SiemensMFR # 3RN2023-1DW30SKU # CEY-8EF3B02CD76B

product brand nameSIRIUS

product categorySIRIUS 3RN2 thermistor motor protection

product designationThermistor motor protection relay

product type designation3RN2

product functionthermistor motor protection

display version LEDVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RN2023-1DW30

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product categorySIRIUS 3RN2 thermistor motor protection

product designationThermistor motor protection relay

design of the productStandard evaluation unit with ATEX approval ve 2 sensor circuits for warning ve disconnection, open-circuit ve short-circuit detection in both sensor circuits, safe disconnection, non-volatile

product type designation3RN2

General technical data

product functionthermistor motor protection

display version LEDVar

at AC in hot operating state1,8 W

at DC in hot operating state1,8 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

degree of pollution3

surge voltage resistance rated value6 kV

between auxiliary and auxiliary circuit300 V

between control and auxiliary circuit300 V

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610... 55 Hz: 0,35 mm

mechanical service life (operating cycles) typical10.000.000

at 24 V typical100.000

at 230 V typical100.000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,153 kg

Product Function

error memoryVar

dynamic open-circuit detectionVar

external resetVar

auto-RESETVar

manual RESETVar

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24... 240 V

at 60 Hz rated value24... 240 V

control supply voltage at DC rated value24... 240 V

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

at 24 V0,7 A

at 240 V12 A

at 24 V0,25 ms

at 240 V0,2 ms

Measuring circuit

buffering time in the event of power failure minimum30 ms

Precision

relative metering precision2 %

Auxiliary circuit

material of switching contactsAgSnO2

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts1

operational current of auxiliary contacts at AC-15 maximum3 A

at 24 V1 A

at 125 V0,2 A

at 250 V0,1 A

Main circuit

operating frequency rated value50... 60 Hz

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0,2 A

continuous current of the DIAZED fuse link of the output relay6 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)

due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationProtective separation

between input and outputVar

between the outputsVar

between the voltage supply and other circuitsVar

Safety related data

failure rate [FIT] at rate of recognizable hazardous failures (λdd)6.8E-8 1/h

failure rate [FIT] at rate of non-recognizable hazardous failures (λdu)3.08E-7 1/h

average diagnostic coverage level (DCavg)18 %

MTBF97 a

MTTFd303 a

IEC 62061

Safety Integrity Level (SIL) according to IEC 62061SIL 1

PFHD with high demand rate according to IEC 620613.76E-7 1/h

ISO 13849

performance level (PL) according to EN ISO 13849-1c

category according to EN ISO 13849-11

performance level (PL) according to ISO 13849-1PL c

IEC 61508

Safety Integrity Level (SIL) according to IEC 615081

safety device type according to IEC 61508-2Type B

PFDavg with low demand rate according to IEC 615080,0041

Safe failure fraction (SFF)74 %

hardware fault tolerance according to IEC 615080

T1 value for proof test interval or service life according to IEC 615083 a

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionscrew terminal

for auxiliary and control circuitscrew-type terminals

solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

finely stranded with core end processing1x (0,5... 4 mm²), 2x (0,5... 1,5 mm²)

for AWG cables solid1x (20... 12), 2x (20... 14)

solid0,5... 4 mm²

finely stranded with core end processing0,5... 4 mm²

solid20... 12

stranded20... 12

tightening torque with screw-type terminals0,6... 0,8 N·m

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height100 mm

width22,5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +85 °C

during transport-40... +85 °C

relative humidity during operation maximum70 %

explosion protection category for dust[Ex t] [Ex p]

explosion protection category for gas[Ex e] [Ex d] [Ex px]

Aksesuarlar 4

Siemens 3RN2023-1DW30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1122-1BA00	Aksesuar · Removable terminals
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1122-2BA00	Aksesuar · Removable terminals
