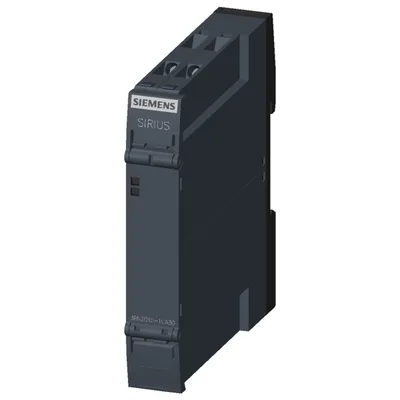

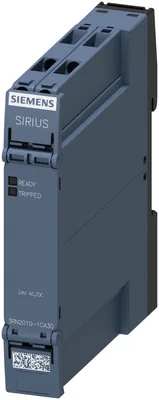

Siemens 3RN2010-1CA30
thermistor motor koruması röle compact evaluation ünite 17,5 mm muhafaza vidalı klemens 1 NO kontak, 1 NC Us = 24 V AC/DC otomatik RESET suitable için bimetallic anahtar 2 LEDs (ready/tripped) electrical separation
product brand nameSIRIUS
product categorySIRIUS 3RN2 thermistor motor protection
product designationThermistor motor protection relay
product type designation3RN2
product functionthermistor motor protection
display version LEDVar
Ürün Hakkında
thermistor motor koruması röle compact evaluation ünite 17,5 mm muhafaza vidalı klemens 1 NO kontak, 1 NC Us = 24 V AC/DC otomatik RESET suitable için bimetallic anahtar 2 LEDs (ready/tripped) electrical separation
Siemens 3RN2010-1CA30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySIRIUS 3RN2 thermistor motor protection
product designationThermistor motor protection relay
design of the productCompact evaluation unit, suitable for bimetallic switch
product type designation3RN2
General technical data
product functionthermistor motor protection
display version LEDVar
at AC in hot operating state0,4 W
at DC in hot operating state0,4 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
degree of pollution3
surge voltage resistance rated value4 kV
shock resistance according to IEC 60068-2-2711 g / 15 ms
vibration resistance according to IEC 60068-2-610... 55 Hz: 0,35 mm
mechanical service life (operating cycles) typical10.000.000
at 24 V typical100.000
at 230 V typical100.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/28/2009
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8
Net Weight104,46 g
Product Function
error memoryYok
dynamic open-circuit detectionYok
external resetYok
auto-RESETVar
manual RESETYok
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
control supply voltage at DC rated value24 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
at 24 V1,8 A
at 24 V2 ms
Measuring circuit
buffering time in the event of power failure minimum40 ms
Precision
relative metering precision9 %
Auxiliary circuit
material of switching contactsAgSnO2
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts0
operational current of auxiliary contacts at AC-15 maximum3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
Main circuit
operating frequency rated value50... 60 Hz
ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,2 A
continuous current of the DIAZED fuse link of the output relay6 A
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)
due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)
due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
design of the electrical isolationgalvanic isolation
between input and outputVar
between the outputsVar
between the voltage supply and other circuitsYok
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
for auxiliary and control circuitscrew-type terminals
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 4 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 12), 2x (20... 14)
solid0,5... 4 mm²
finely stranded with core end processing0,5... 4 mm²
solid20... 12
stranded20... 12
tightening torque with screw-type terminals0,6... 0,8 N·m

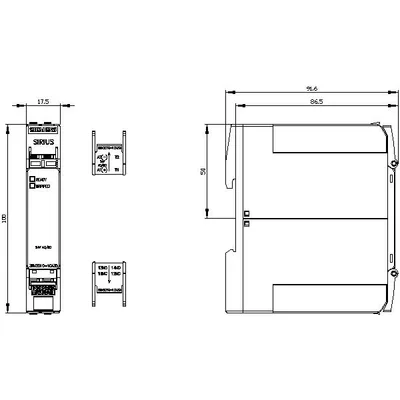

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height100 mm
width17,5 mm
depth90 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity during operation maximum70 %
Aksesuarlar 4
Siemens 3RN2010-1CA30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3ZY1122-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3ZY1122-2BA00 | Aksesuar · Removable terminals |
