Siemens 3RM1201-3AA04 için nasıl fiyat teklifi alabilirim?

Siemens 3RM1201-3AA04 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B0394DC2 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RM1201-3AA04 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RM1201-3AA04 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RM1201-3AA04 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

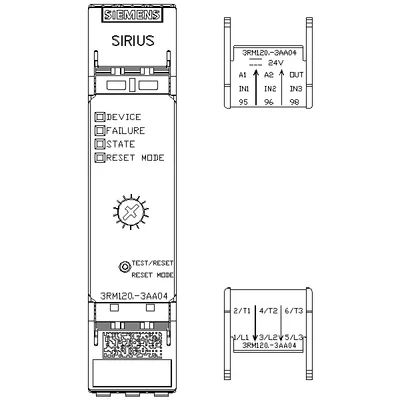

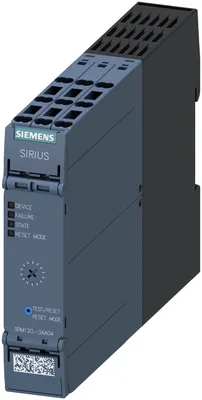

Siemens 3RM1201-3AA04

reversing starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 24 V DC, screw/spring-loaded terminals (push-in)

SiemensMFR # 3RM1201-3AA04SKU # CEY-8EF3B0394DC2

product brand nameSIRIUS

product categoryMotor starter

product designationReversing starter

design of the productwith electronic overload protection

product type designation3RM1

product functionReversing starter

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

reversing starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 24 V DC, screw/spring-loaded terminals (push-in)

Siemens 3RM1201-3AA04

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product categoryMotor starter

product designationReversing starter

design of the productwith electronic overload protection

product type designation3RM1

General technical data

equipment version according to IEC 60947-4-23

product functionReversing starter

intrinsic device protectionVar

for power supply reverse polarity protectionYok

suitability for operation device connector 3ZY12Var

at AC in hot operating state per pole0,01 W

without load current share typical1,68 W

insulation voltage rated value500 V

overvoltage categoryIII

surge voltage resistance rated value6 kV

between main and auxiliary circuit500 V

between control and auxiliary circuit250 V

shock resistance6 g / 11 ms

vibration resistance1... 6 Hz, 15 mm; 20 m/s², 500 Hz

operating frequency maximum1 1/s

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,28 kg

direct startYok

reverse startingVar

product function short circuit protectionYok

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1Class A

due to burst according to IEC 61000-4-43 kV / 5 kHz

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11Class B for the domestic, business ve commercial environments

field-bound HF interference emission according to CISPR11Class B for the domestic, business ve commercial environments

Safety related data

product function suitable for safety functionYok

safety-related switching onYok

safety-related switching OFFYok

test wear-related service life necessaryYok

ISO 13849

overdimensioning according to ISO 13849-2 necessaryYok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

Main circuit

number of poles for main current circuit3

design of the switching contactHybrid

design of the switching contact as NO contact for signaling functionOUT, electronic, 24 V DC, 15 mA

adjustable current response value current of the current-dependent overload release0,1... 0,5 A

minimum load [%]20 %; from set rated current

type of the motor protectionsolid-state

operating voltage rated value48... 500 V

relative symmetrical tolerance of the operating voltage10 %

operating frequency 1 rated value50 Hz

operating frequency 2 rated value60 Hz

relative symmetrical tolerance of the operating frequency10 %

at AC at 400 V rated value0,5 A

at AC-3 at 400 V rated value0,5 A

at AC-53a at 400 V at ambient temperature 40 °C rated value0,5 A

ampacity when starting maximum4 A

operating power for 3-phase motors at 400 V at 50 Hz0... 0,12 kW

Inputs/ Outputs

input voltage at digital input at DC rated value24 V

for signal <1> at DC11 mA

with signal <0> at DC1 mA

number of CO contacts for auxiliary contacts1

operational current of auxiliary contacts at AC-15 at 230 V maximum3 A

operational current of auxiliary contacts at DC-13 at 24 V maximum1 A

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value19,2... 30 V

relative negative tolerance of the control supply voltage at DC20 %

relative positive tolerance of the control supply voltage at DC25 %

control supply voltage 1 at DC rated value24 V

initial value0,8

full-scale value1,25

in standby mode of operation25 mA

during operation70 mA

at 24 V0,28 A; values 25 °C

at DC at 24 V300 mA

at DC at 24 V at switching on of motor140 mA

at 24 V85 ms

at DC at 24 V80 ms

at DC at 24 V at switching on of motor80 ms

— with bypass circuit0,6 W

— with bypass circuit1,68 W

Response times

ON-delay time60... 90 ms

OFF-delay time60... 90 ms

Power Electronics

at 40 °C rated value0,5 A

at 50 °C rated value0,5 A

at 55 °C rated value0,5 A

at 60 °C rated value0,5 A

Installation/ mounting/ dimensions

mounting positiondikey, yatay, standing (observe derating)

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height100 mm

width22,5 mm

depth141,6 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— at the side3,5 mm

— downwards50 mm

Ambient conditions

installation altitude at height above sea level maximum4.000 m

during operation-25... +60 °C

during storage-40... +70 °C

during transport-40... +70 °C

environmental category during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

relative humidity during operation10... 95 %

air pressure according to SN 31205900... 1.060 hPa

Communication/ Protocol

PROFINET IO protocolYok

PROFIsafe protocolYok

product function bus communicationYok

protocol is supported AS-Interface protocolYok

Connections/ Terminals

type of electrical connectionscrew-type terminals for main circuit, spring-loaded terminals (push-in) for control circuit

for main current circuitscrew-type terminals

for auxiliary and control circuitspring-loaded terminals (push-in)

wire length for motor unshielded maximum100 m

solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

finely stranded with core end processing1x (0,5... 4 mm²), 2x (0,5... 1,5 mm²)

solid or stranded0,5... 4 mm²

finely stranded with core end processing0,5... 4 mm²

solid or stranded0,5... 1,5 mm²

finely stranded with core end processing0,5... 1 mm²

finely stranded without core end processing0,5... 1,5 mm²

— solid1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)

— finely stranded with core end processing1x (0,5... 1,0 mm²), 2x (0,5... 1,0 mm²)

— finely stranded without core end processing1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)

for AWG cables for auxiliary contacts1x (20... 16), 2x (20... 16)

AWG number as coded connectable conductor cross section for main contacts20... 12

AWG number as coded connectable conductor cross section for auxiliary contacts20... 16

UL/CSA ratings

operational current at AC at 480 V according to UL 5080,5 A

Aksesuarlar 16

Siemens 3RM1201-3AA04 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1131-2BA00	Aksesuar · Removable terminals
8US1716-0RK00	Aksesuar
8US1616-0AK02	Aksesuar
8US1216-0AS00	Aksesuar
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1321-2AA00	Aksesuar · Further accessories
3RM1932-1AB	Aksesuar · 3RM1 fuse modules for use on busbars or DIN rails
3RM1930-1AA	Aksesuar · 3RM1 fuse modules for use on busbars or DIN rails
3RM1920-1AA	Aksesuar · Three-phase infeed system for 3RM1 with screw terminals
3RM1910-6AA	Aksesuar · Three-phase infeed system for 3RM1 with screw terminals
3RM1910-1DA	Aksesuar · Three-phase infeed system for 3RM1 with screw terminals
3RM1910-1BA	Aksesuar · Three-phase infeed system for 3RM1 with screw terminals
3RM1910-1AA	Aksesuar · Three-phase infeed system for 3RM1 with screw terminals
3ZY1122-1BA00	Aksesuar · Removable terminals
3ZY1450-1AB00	Yedek parça · Further accessories
