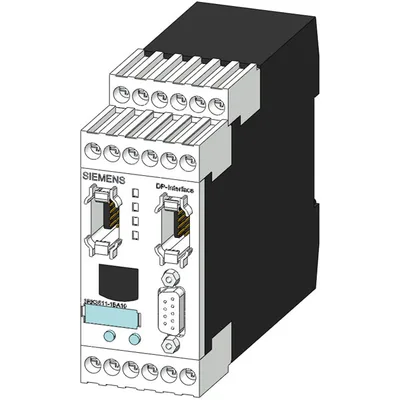

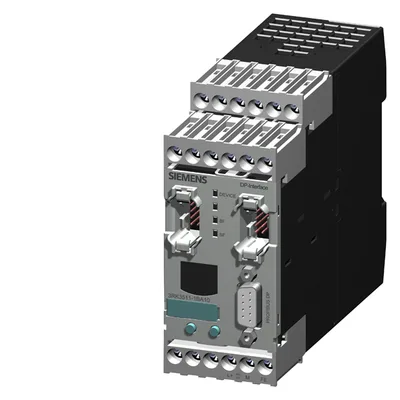

Siemens 3RK3511-1BA10
SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps, RS 485 45 mm overall width screw terminal can be parameterized via Safety ES without connection cable
product brand nameSIRIUS
product categoryModular safety system
product designationInterface module
design of the productDP-Interface
certificate of suitability UL approvalVar
degree of pollution2
Ürün Hakkında
SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps, RS 485 45 mm overall width screw terminal can be parameterized via Safety ES without connection cable
Siemens 3RK3511-1BA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryModular safety system
product designationInterface module
design of the productDP-Interface
General technical data
certificate of suitability UL approvalVar
degree of pollution2
shock resistance15 g / 11 ms
according to IEC 60068-2-65... 500 Hz: 0,75 mm
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,278 kg
Ambient conditions
installation altitude at height above sea level maximum4.000 m
relative humidity during operation10... 95 %
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV (power ports)
due to conductor-earth surge according to IEC 61000-4-5Test Level 0,5 KV / 1 KV
Communication/ Protocol
PROFIBUS DP protocolVar
Control circuit/ Control
type of voltageDC
inrush current peak at 24 V70 A
duration of inrush current peak at 24 V1 ms

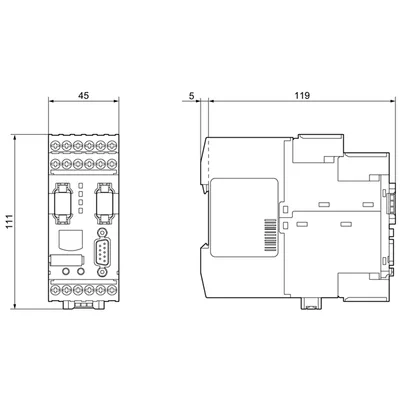

Installation/ mounting/ dimensions
mounting positiondikey
fastening methodDIN rail
height111 mm
width45 mm
depth124 mm
Connections/ Terminals
— solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables for auxiliary contacts2x (20... 14)
