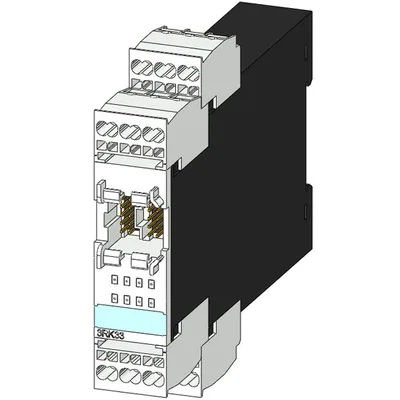

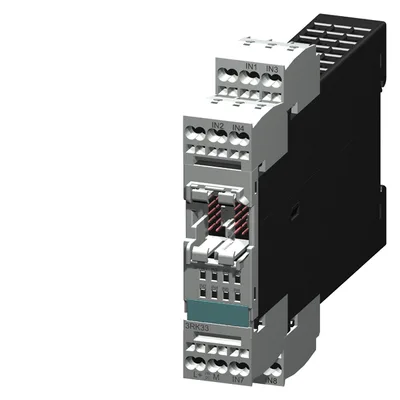

Siemens 3RK3321-2AA10
successor 3SK2, S7-1200F or ET200SP when AS-i is used for modular Safety system 3RK3 8 DI, 24 V DC Can be parameterized via MSS ES 22.5 mm overall width Spring-type terminal without connection cable
product brand nameSIRIUS
product categoryModular Safety System
design of the product8 DI
EMERGENCY OFF functionYok
protective door monitoringYok
evaluation: selector switchYok
Ürün Hakkında
successor 3SK2, S7-1200F or ET200SP when AS-i is used for modular Safety system 3RK3 8 DI, 24 V DC Can be parameterized via MSS ES 22.5 mm overall width Spring-type terminal without connection cable
Siemens 3RK3321-2AA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryModular Safety System
design of the product8 DI
EMERGENCY OFF functionYok
protective door monitoringYok
evaluation: electro-sensitive protective equipmentYok
evaluation: selector switchYok
evaluation: two-hand operator panelYok
evaluation: enabling switchYok
monitored start-upVar
insulation voltage rated value50 V
degree of pollution3
surge voltage resistance rated value500 V
shock resistance15 g / 11 ms
vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,118 kg
installation altitude at height above sea level maximum2.000 m
relative humidity during operation10... 95 %
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV (power ports)
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m, 3 V/m, 1 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Electrical Safety
touch protection against electrical shockfinger-safe
Inputs/ Outputs
parameterizable outputsYok
safety-related0
non-safety-related8
number of outputs for testing contact-based sensors0
1-channel0
2-channel0
safety-related 2-channel0
non-safety-related0
type of voltageDC
control supply voltage 1 at DC rated value24 V
mounting positiondikey
fastening methodDIN rail

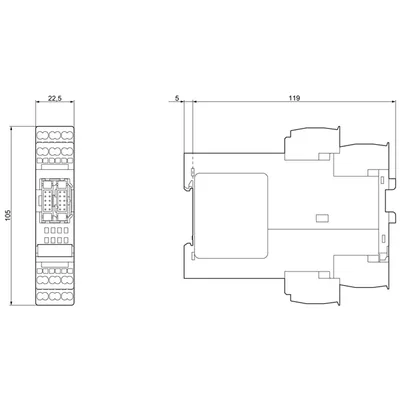

height105 mm
width22,5 mm
depth124 mm
type of electrical connectionspring-loaded terminals
