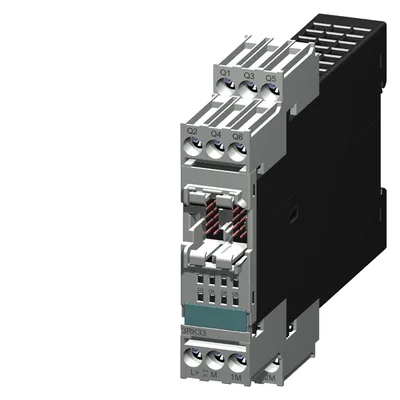

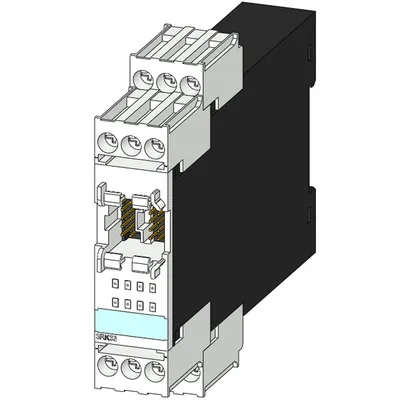

Siemens 3RK3311-1AA10
SIRIUS, Extension module 3RK33 for modular Safety system 3RK3 8 DO, 24 V DC/0.5 A Can be parameterized via MSS ES 22.5 mm overall width screw terminal without connection cable
product brand nameSIRIUS
product categoryModular Safety System
design of the product8 DO
EMERGENCY OFF functionYok
protective door monitoringYok
evaluation: selector switchYok
Ürün Hakkında
SIRIUS, Extension module 3RK33 for modular Safety system 3RK3 8 DO, 24 V DC/0.5 A Can be parameterized via MSS ES 22.5 mm overall width screw terminal without connection cable
Siemens 3RK3311-1AA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryModular Safety System
design of the product8 DO
EMERGENCY OFF functionYok
protective door monitoringYok
evaluation: electro-sensitive protective equipmentYok
evaluation: selector switchYok
evaluation: two-hand operator panelYok
evaluation: enabling switchYok
monitored start-upYok
insulation voltage rated value50 V
degree of pollution3
surge voltage resistance rated value500 V
shock resistance15 g / 11 ms
vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/28/2009
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,136 kg
installation altitude at height above sea level maximum2.000 m
relative humidity during operation10... 95 %
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV (power ports)
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m, 3 V/m, 1 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Electrical Safety
touch protection against electrical shockfinger-safe
Inputs/ Outputs
parameterizable outputsVar
safety-related0
non-safety-related0
number of outputs for testing contact-based sensors0
1-channel0
2-channel0
safety-related 2-channel0
non-safety-related8
type of voltageDC
control supply voltage 1 at DC rated value24 V
mounting positiondikey
fastening methodDIN rail
height102 mm
width22,5 mm
depth124 mm
type of electrical connectionscrew terminal
