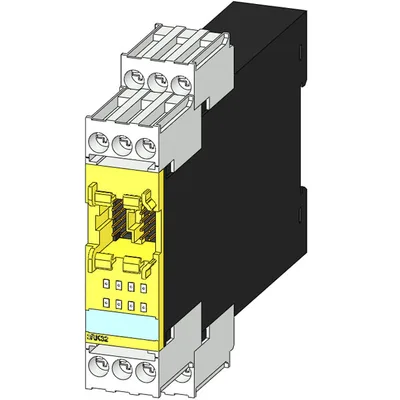

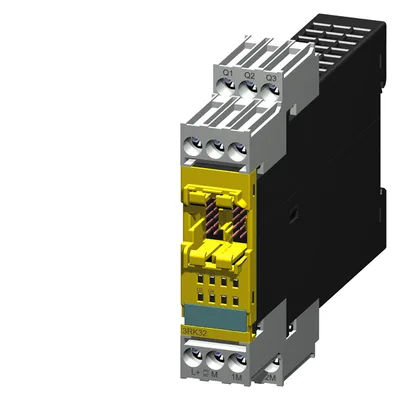

Siemens 3RK3242-1AA10
successor 3SK2, S7-1200F or ET200SP when AS-i is used for modular safety system 3RK3 4 F-DO, 24 V DC/ 2 A configurable via MSS ES 22.5 mm width screw terminal up to SIL 3 (IEC 61508) up to Performance Level e (ISO 13849-1) without connecting cable
product brand nameSIRIUS
product categoryModular Safety System
design of the product4 F-DO
EMERGENCY OFF functionYok
protective door monitoringYok
evaluation: selector switchYok
Ürün Hakkında
successor 3SK2, S7-1200F or ET200SP when AS-i is used for modular safety system 3RK3 4 F-DO, 24 V DC/ 2 A configurable via MSS ES 22.5 mm width screw terminal up to SIL 3 (IEC 61508) up to Performance Level e (ISO 13849-1) without connecting cable
Siemens 3RK3242-1AA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryModular Safety System
design of the product4 F-DO
EMERGENCY OFF functionYok
protective door monitoringYok
evaluation: electro-sensitive protective equipmentYok
evaluation: selector switchYok
evaluation: two-hand operator panelYok
evaluation: enabling switchYok
monitored start-upYok
insulation voltage rated value50 V
degree of pollution3
surge voltage resistance rated value500 V
shock resistance15 g / 11 ms
vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight0,134 kg
installation altitude at height above sea level maximum2.000 m
relative humidity during operation10... 95 %
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV (power ports)
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m, 3 V/m, 1 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Safety related data
category according to EN 954-14
IEC 62061
Safety Integrity Level (SIL) according to IEC 62061SIL 3
PFHD with high demand rate according to IEC 620613.18E-9 1/h
ISO 13849
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-14
performance level (PL) according to ISO 13849-1PL e
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
T1 value for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
Inputs/ Outputs
parameterizable outputsVar
safety-related0
non-safety-related0
number of outputs for testing contact-based sensors0
1-channel0
2-channel0
safety-related 2-channel4
non-safety-related0
switching capacity current of semiconductor outputs at DC-13 at 24 V2 A
type of voltageDC
control supply voltage 1 at DC rated value24 V
mounting positiondikey
fastening methodDIN rail
height102 mm
width22,5 mm
depth124 mm
type of electrical connectionscrew terminal
