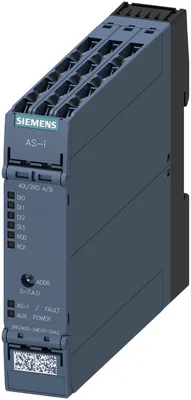

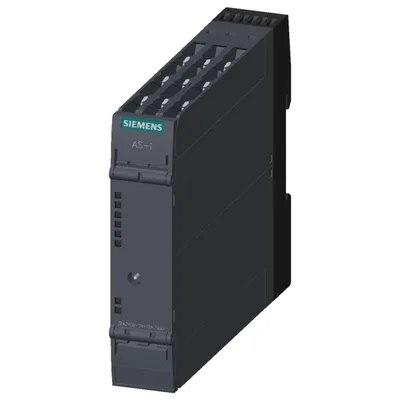

Siemens 3RK2402-2ME00-2AA2
UL/CSA CERTIFICATION IN PREPARATION SC22.5 digital, A/B slave 4 DI/2 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 2 x outlet relay 1 A DC 24 V Screw terminals Width 22.5 mm
design of the productAS-i SC22.5, 4DI/2RQ A/B
product type designation3RK2
design of the device typeA/B slave
AS-Interface device profileS-7.A.0
ID1 code7; Factory setting, changeable
at 30 V maximum270 mA
Ürün Hakkında
UL/CSA CERTIFICATION IN PREPARATION SC22.5 digital, A/B slave 4 DI/2 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 2 x outlet relay 1 A DC 24 V Screw terminals Width 22.5 mm
Siemens 3RK2402-2ME00-2AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC22.5, 4DI/2RQ A/B
product type designation3RK2
design of the device typeA/B slave
AS-Interface device profileS-7.A.0
ID1 code7; Factory setting, changeable
operating voltage according to AS-Interface specification18... 31,6 V
product function suitable for AS-i Power24VVar
at 30 V maximum270 mA
at 24 V with AS-i Power24V maximum270 mA
type of address setting of the AS-i devicesvia front addressing socket
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1 Diboron trioxide CAS-Yok. 1303-86-2
Net Weight0,231 kg
according to EN 61346-2K
according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15 g / 11 ms (modules) veya 10 g / 11 ms (modules with device connector)
other informationSensor supply via Uaux: Auxiliary feed 20 to 30 V DC required to supply the sensor. Sensor supply via AS-i: Yok additional power required.
Digital Inputs
number of digital inputs4
number of digital inputs safety-related0
type of input characteristicPNP Type 2
type of connection technology2- ve 3-wire technology
Sensor supply
type of voltage supply for sensor supplyAS-Interface / U_AUX switchable
ampacity of the sensor supply for all inputs at ambient temperature 40 °C500 mA
note200 mA with supply via AS interface / 500 mA with supply via Uaux
property of the sensor supply short-circuit and overload resistantVar
from AS-interface8,5 V
from external auxiliary voltage1 V
Digital Outputs
number of digital outputs2
type of switching outputRelays, CO contacts
property of the output short-circuit proofYok
ampacity of the output relay at AC-15 at 230 V at 50/60 Hz3 A
at 24 V1 A
at 110 V0,2 A
at 230 V0,1 A
Analog girişler
number of analog inputs0
Analog çıkışlar
number of analog outputs0
Device connector
for AS-Interface2 A
for external auxiliary voltage4 A

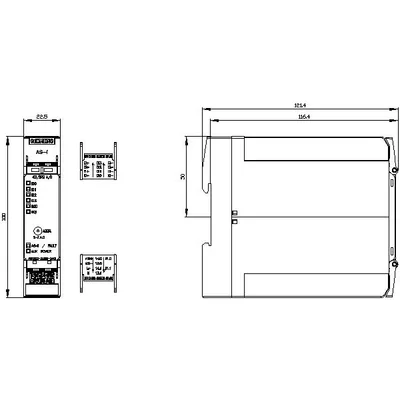

Installation/ mounting/ dimensions
fastening methodscrew ve snap-on mounting
height100 mm
width22,5 mm
depth120 mm
Ambient conditions
during operation-25... +70 °C
during storage-40... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsScrew terminals
solid1x (0,5... 2,5 mm²), 2x ( 0,5... 1,5 mm²)
finely stranded with core end processing1x (0,25... 2,5 mm²), 2x (0,25... 1,0 mm²)
finely stranded without core end processingNot permitted
for AWG cables solid1x (24... 14), 2x (24... 16)
for AWG cables strandedNot permitted
Aksesuarlar 18
Siemens 3RK2402-2ME00-2AA2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RK1901-1YA00 | Aksesuar · Device connector | |
| 3ZY1141-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1141-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1121-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1121-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1131-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1122-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3ZY1131-1BA00 | Aksesuar · Removable terminals | |
| 3RA2908-1A | Aksesuar · Miscellaneous accessories · screwdrivers | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RK1901-1YA11 | Aksesuar · Device termination connector | |
| 3RK1901-1YA10 | Aksesuar · Device connector | |
| 3RK1901-1YA01 | Aksesuar · Device termination connector | |
| 3ZY1122-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1450-1AB00 | Bileşen · Further accessories |
